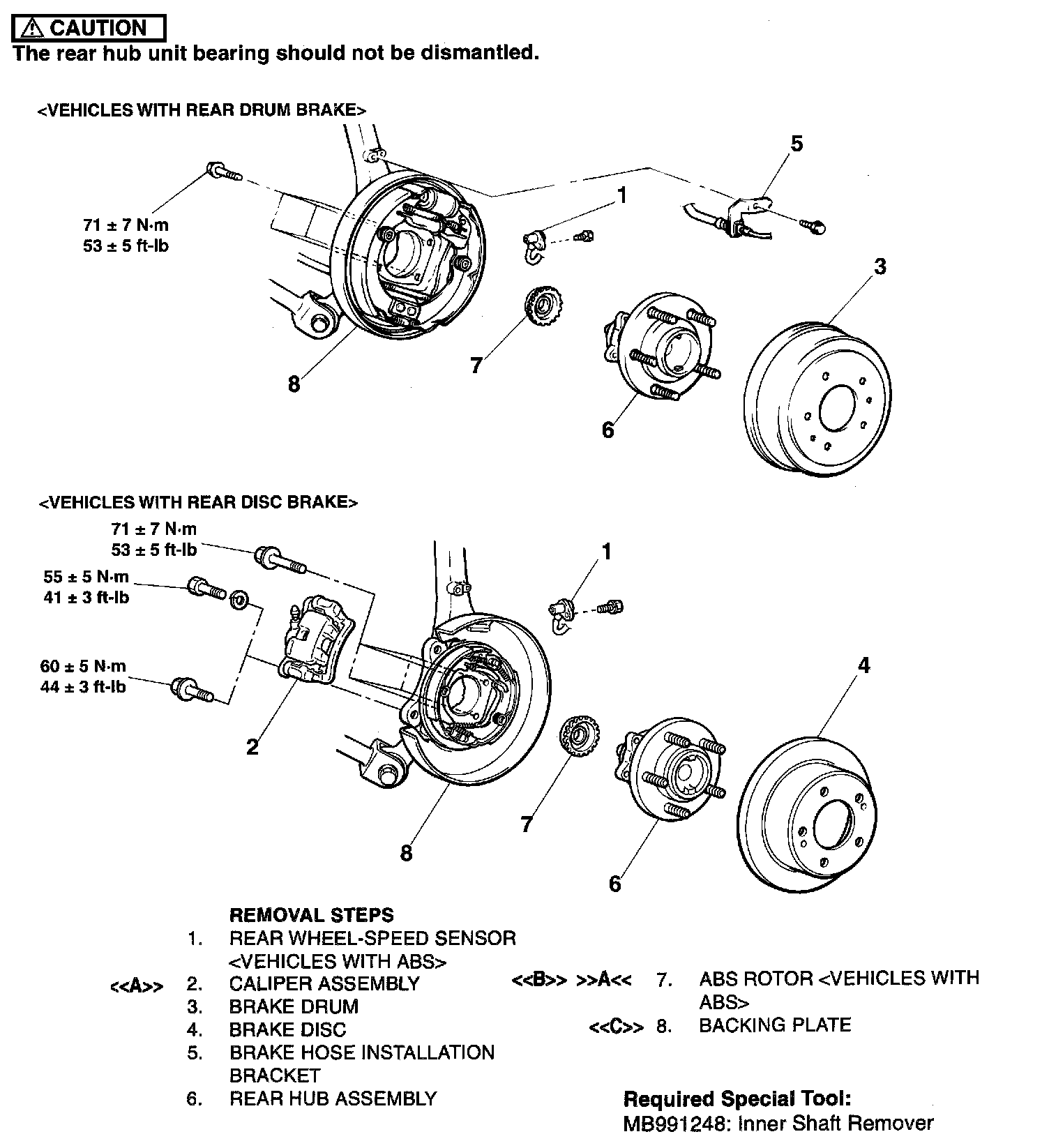

Axle Hub Assembly - Rear / REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS



<< A >>
CALIPER ASSEMBLY REMOVAL
Remove the caliper assembly and suspend it.







<< B >

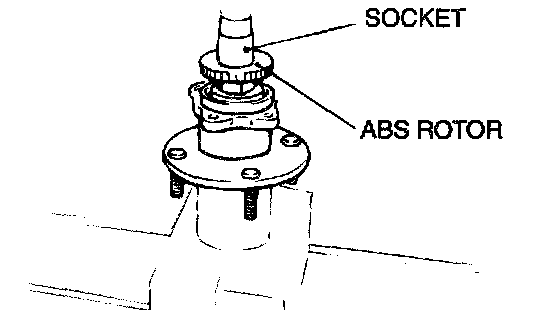

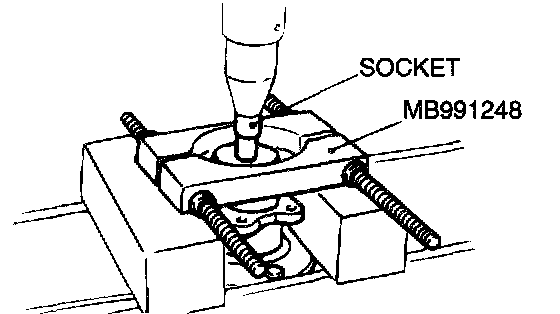

ABS ROTOR REMOVAL


<< C >>
BACKING PLATE REMOVAL
Remove the backing plate and suspend it.



INSTALLATION SERVICE POINT






>> A <<
ABS ROTOR INSTALLATION
