Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Maintenance >> Filters >> Fuel Filter >> Locations

Fuel Filter: Locations



Fuel Filter

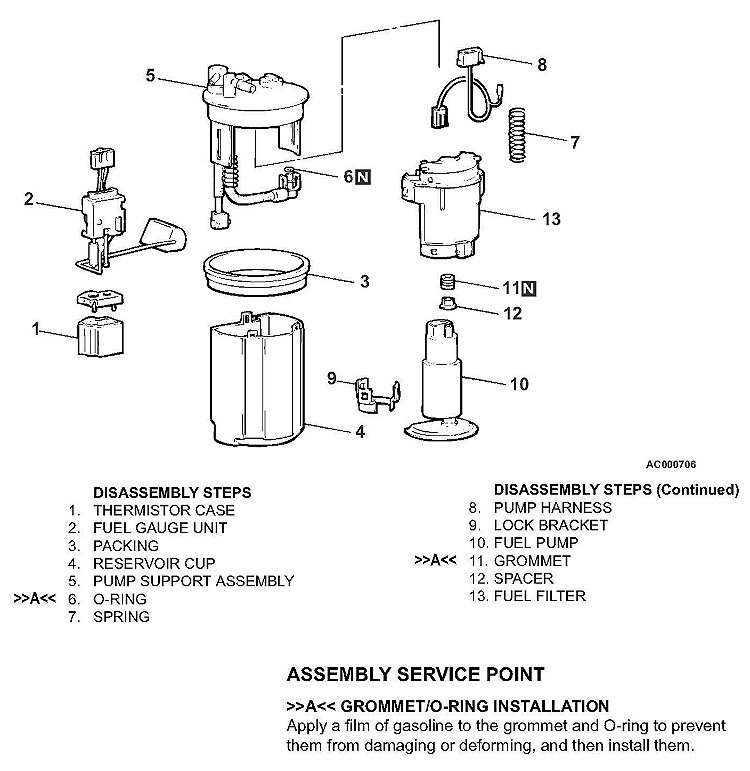

The fuel filter is located on the fuel pump. The fuel filter is only replaceable as part of the fuel pump module.
