Locations
>>
Component Locations
>>
Sensor Locations
Sensor Locations

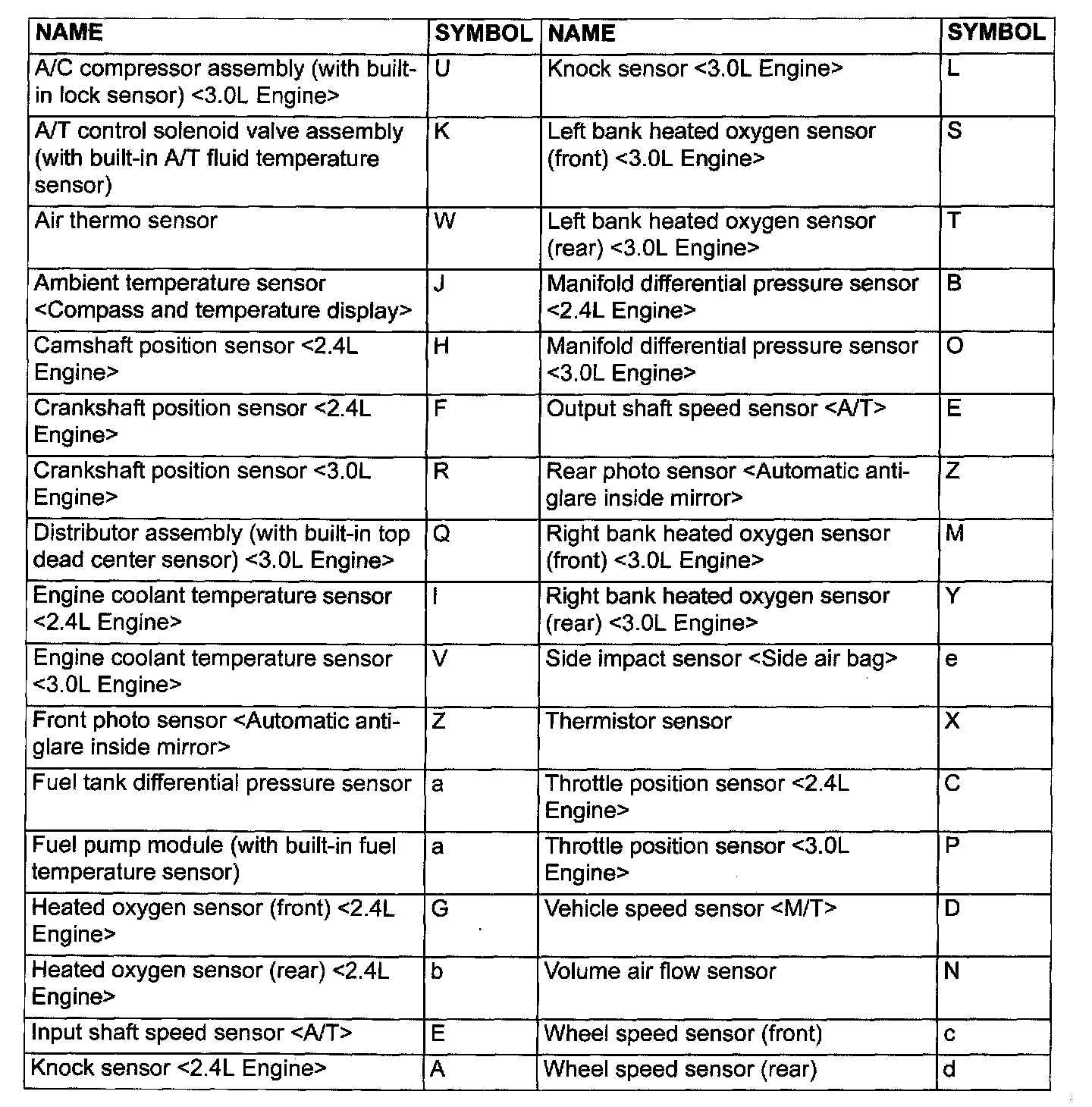

Location Index:

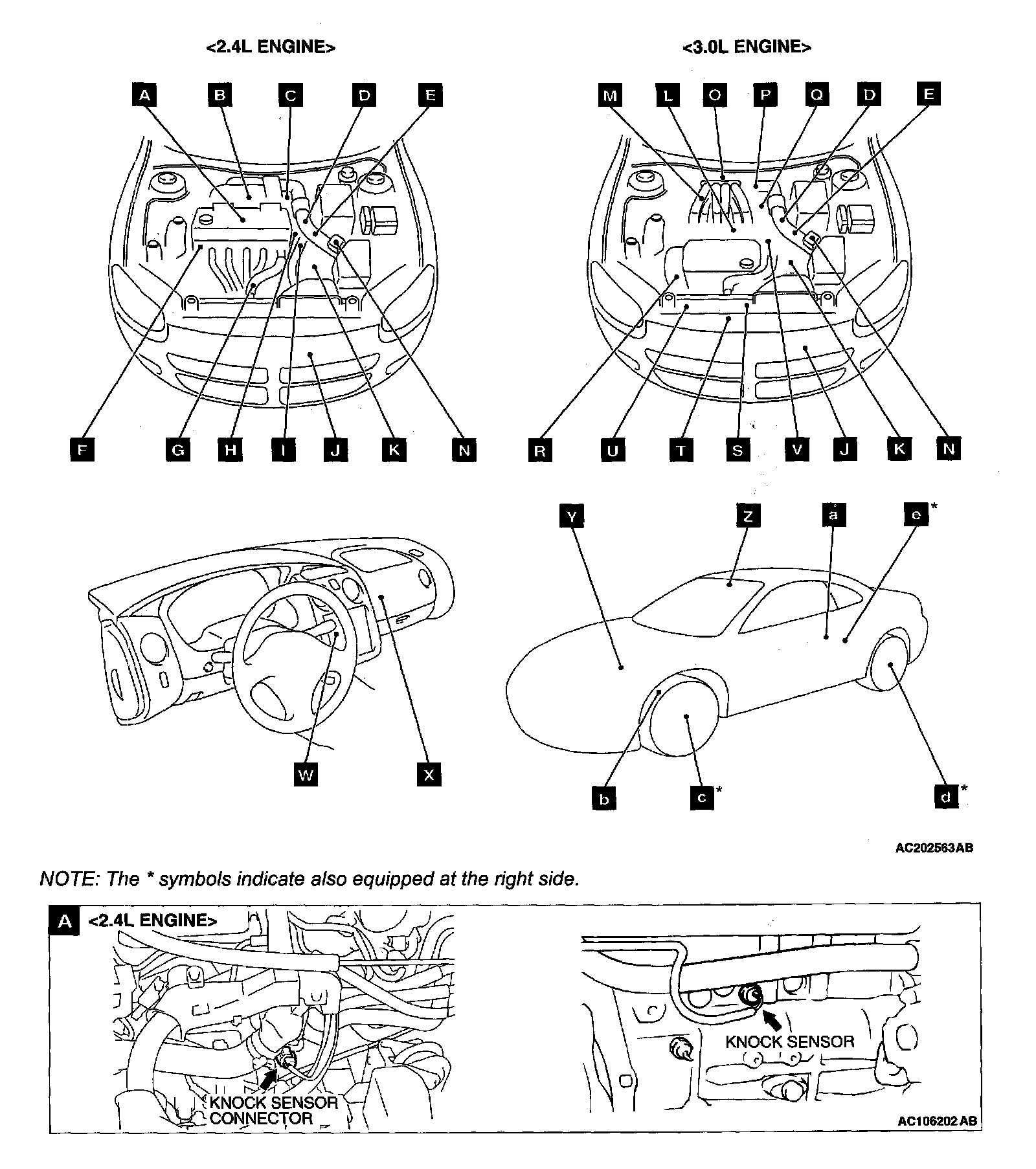

Overall View And View A:

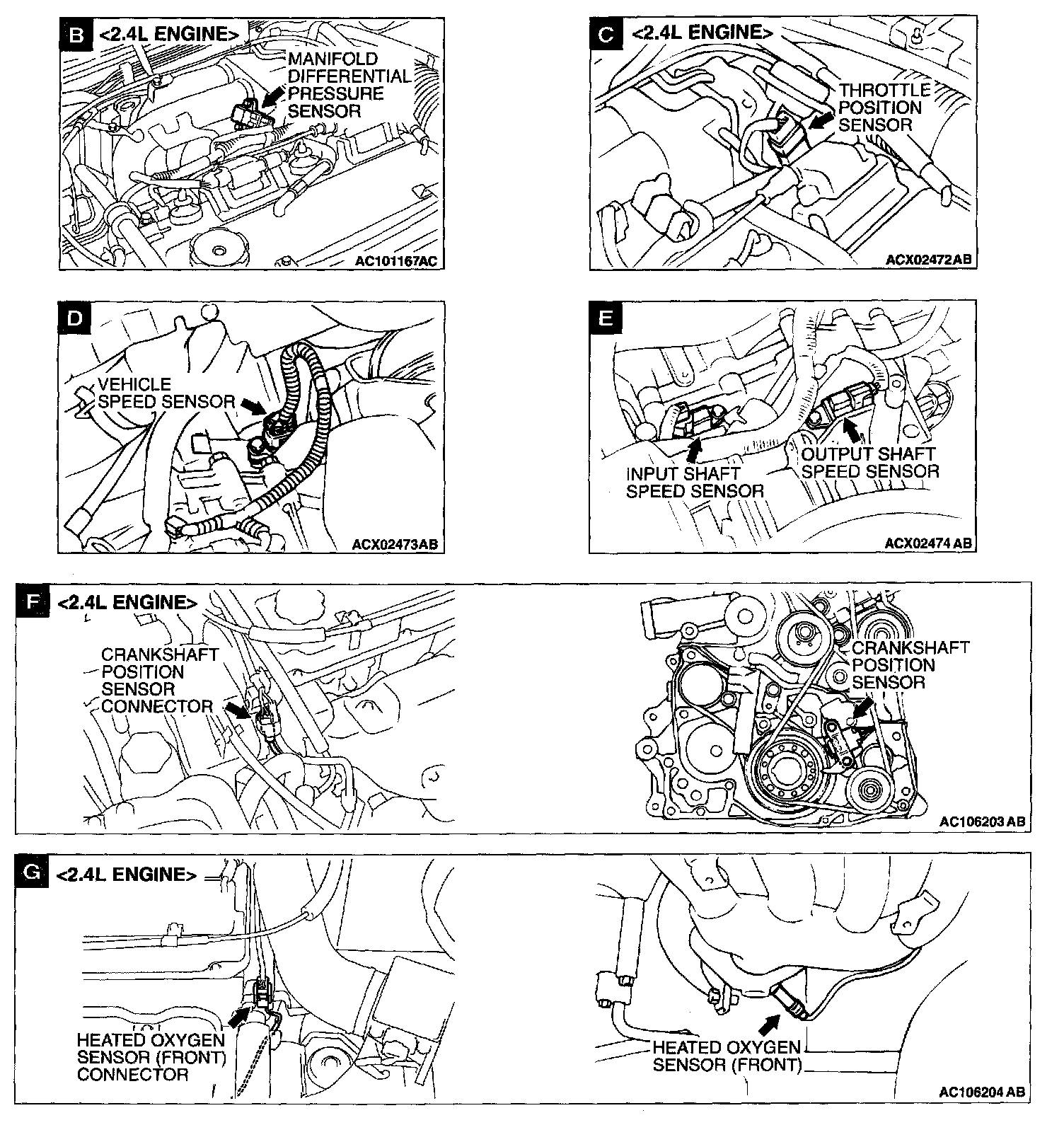

Views B - G:

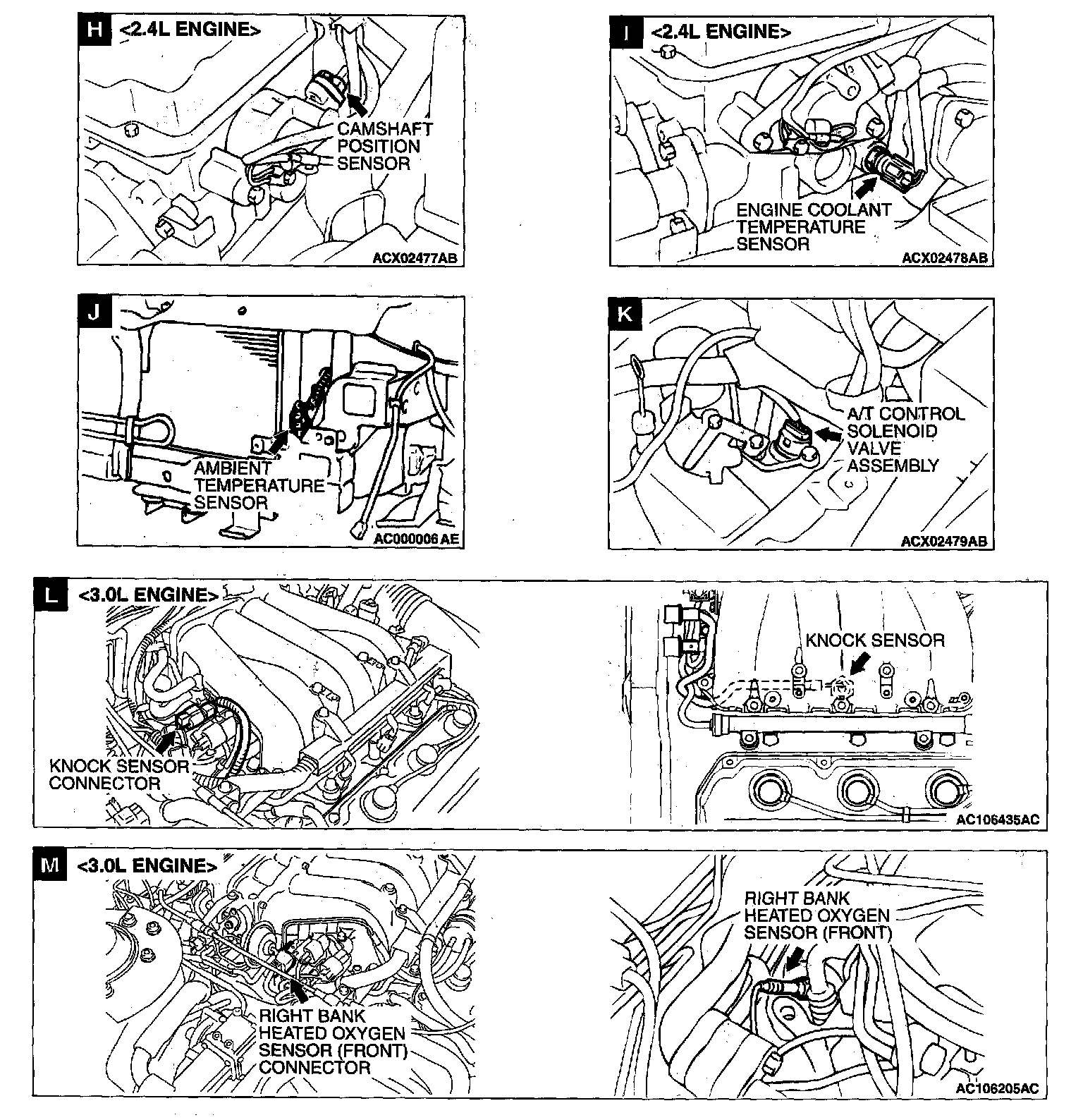

Views H - M:

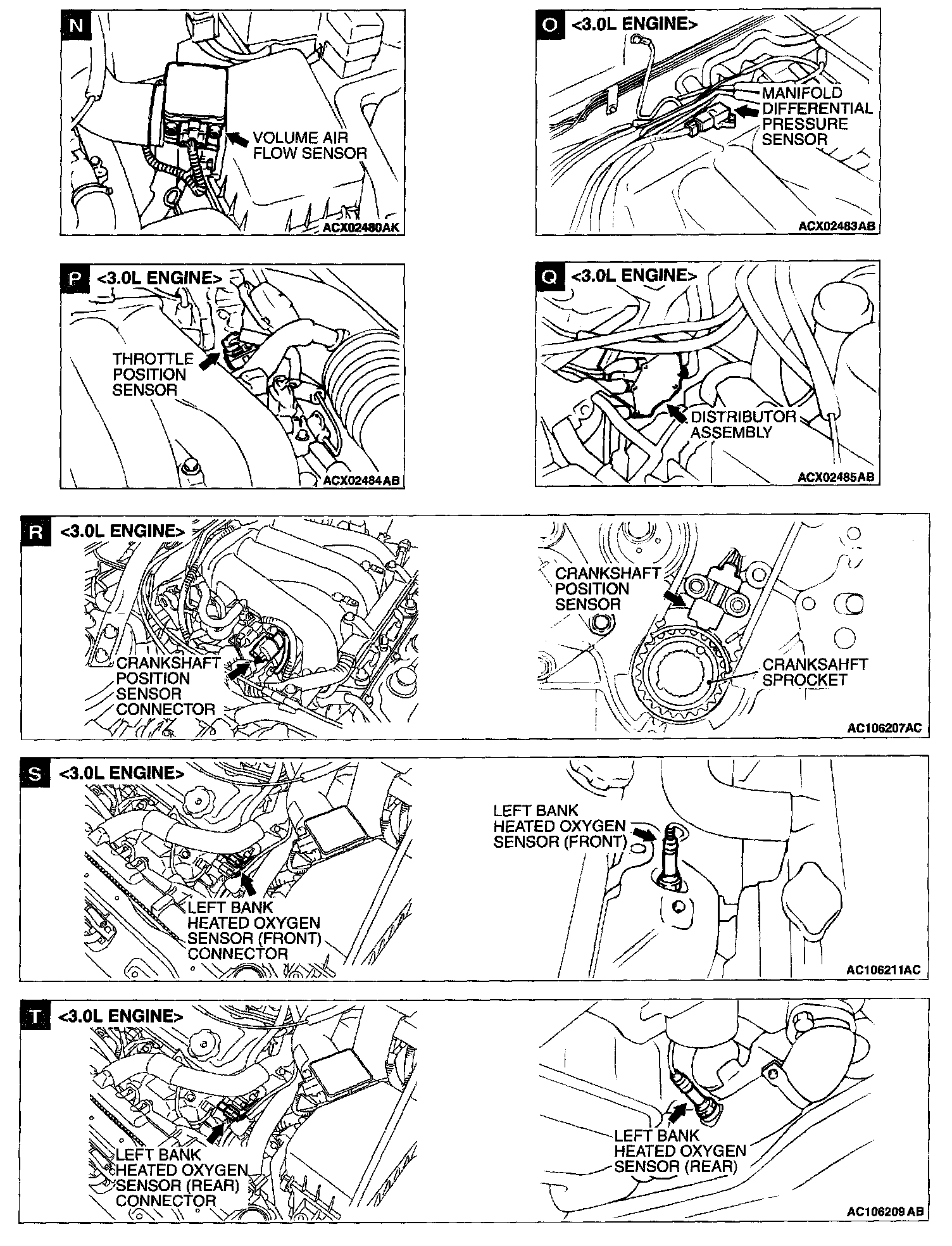

Views N - T:

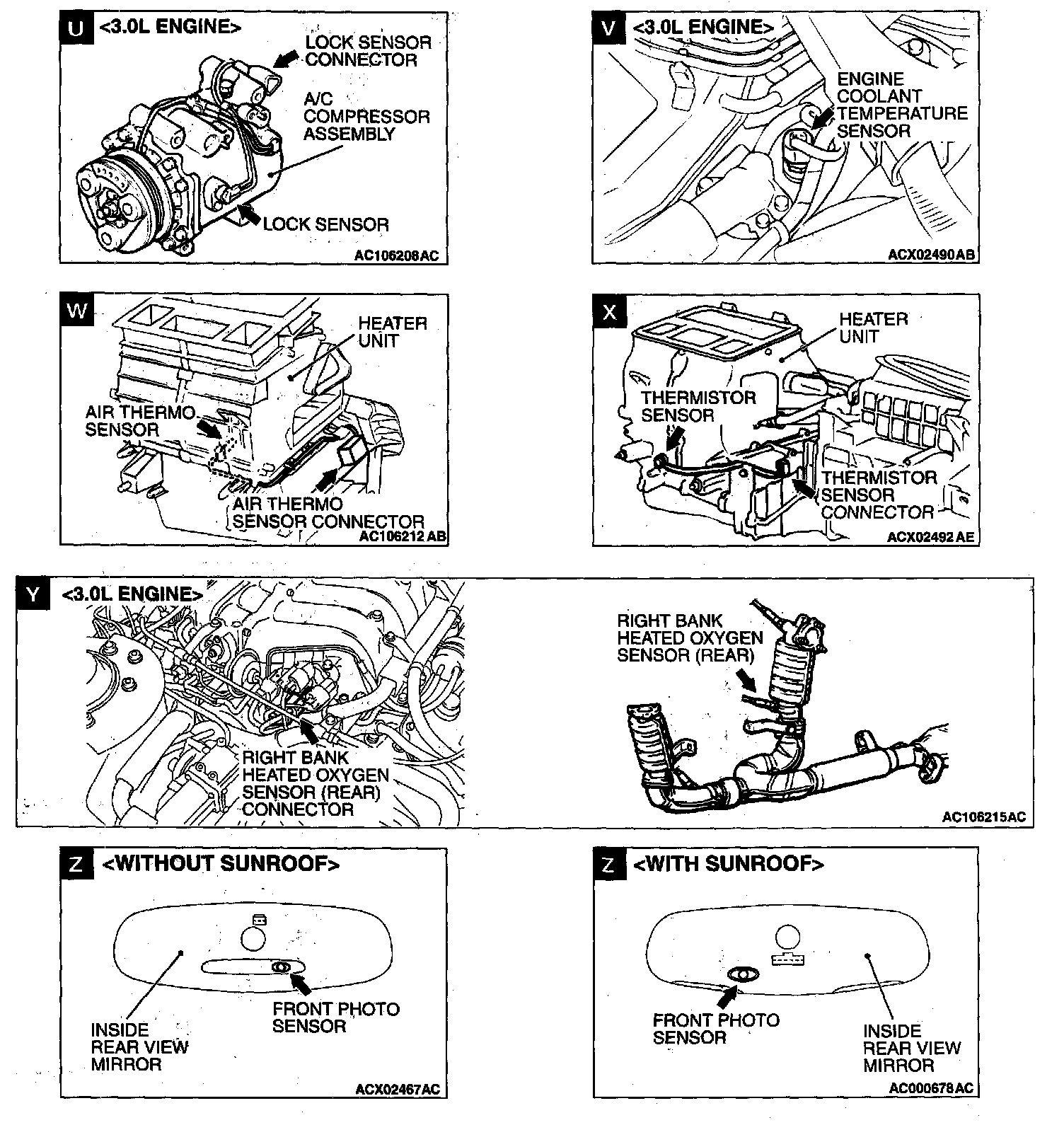

Views U - Z:

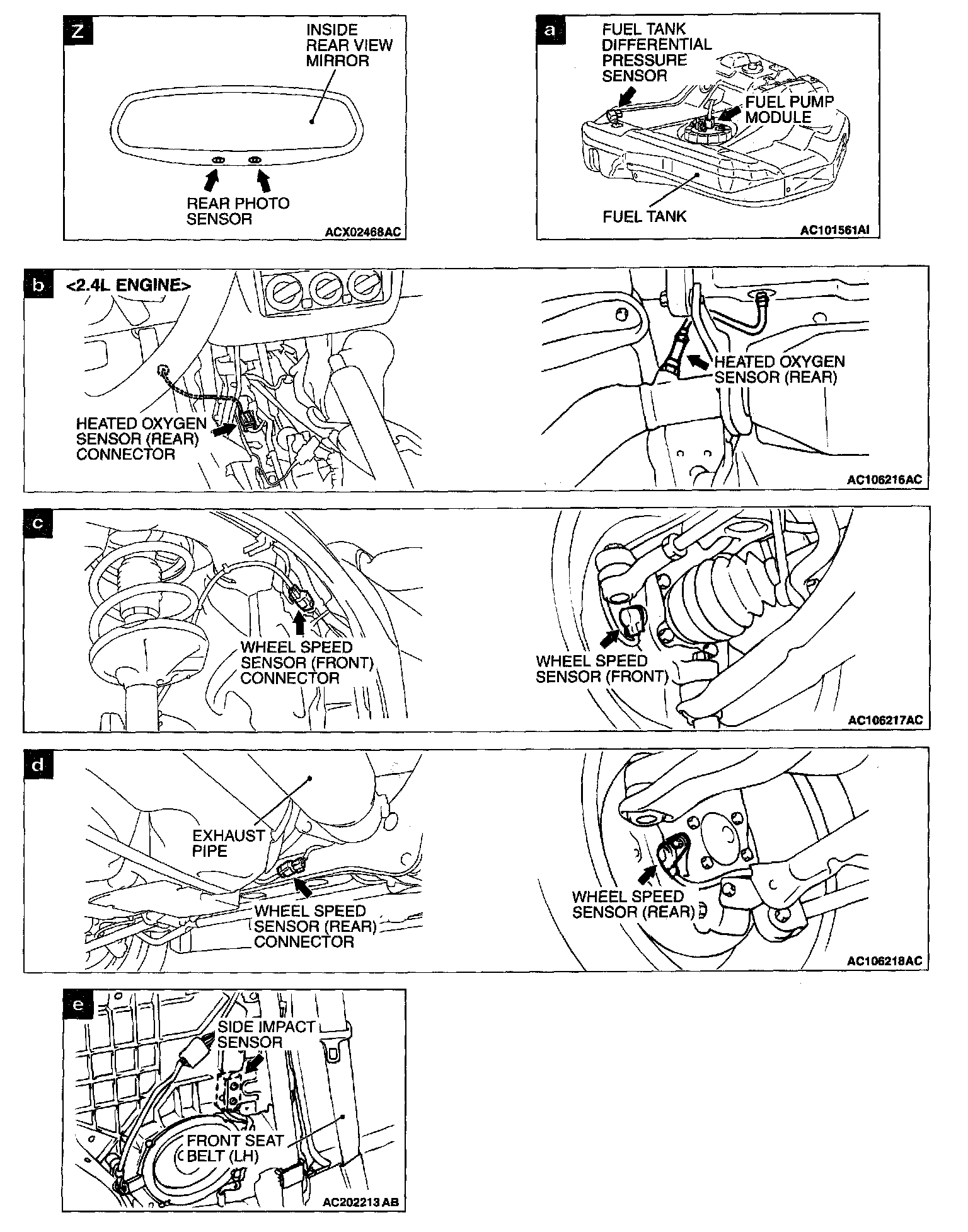

Views a - e:
