Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Service and Repair

Headlamp: Service and Repair

Removal Service Point:






REMOVAL SERVICE POINT

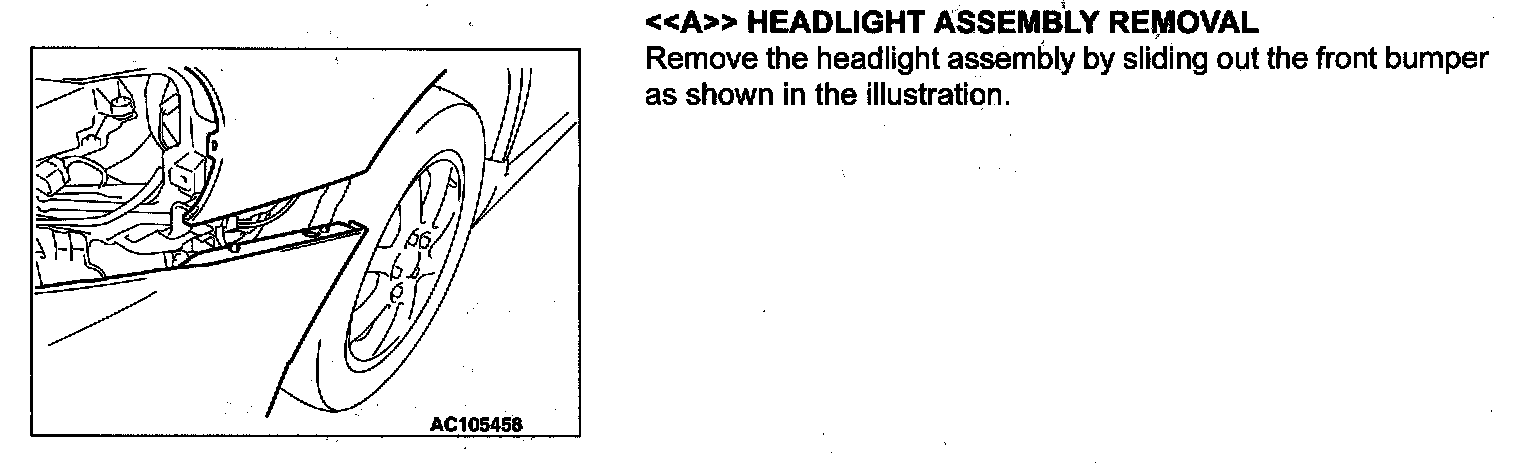

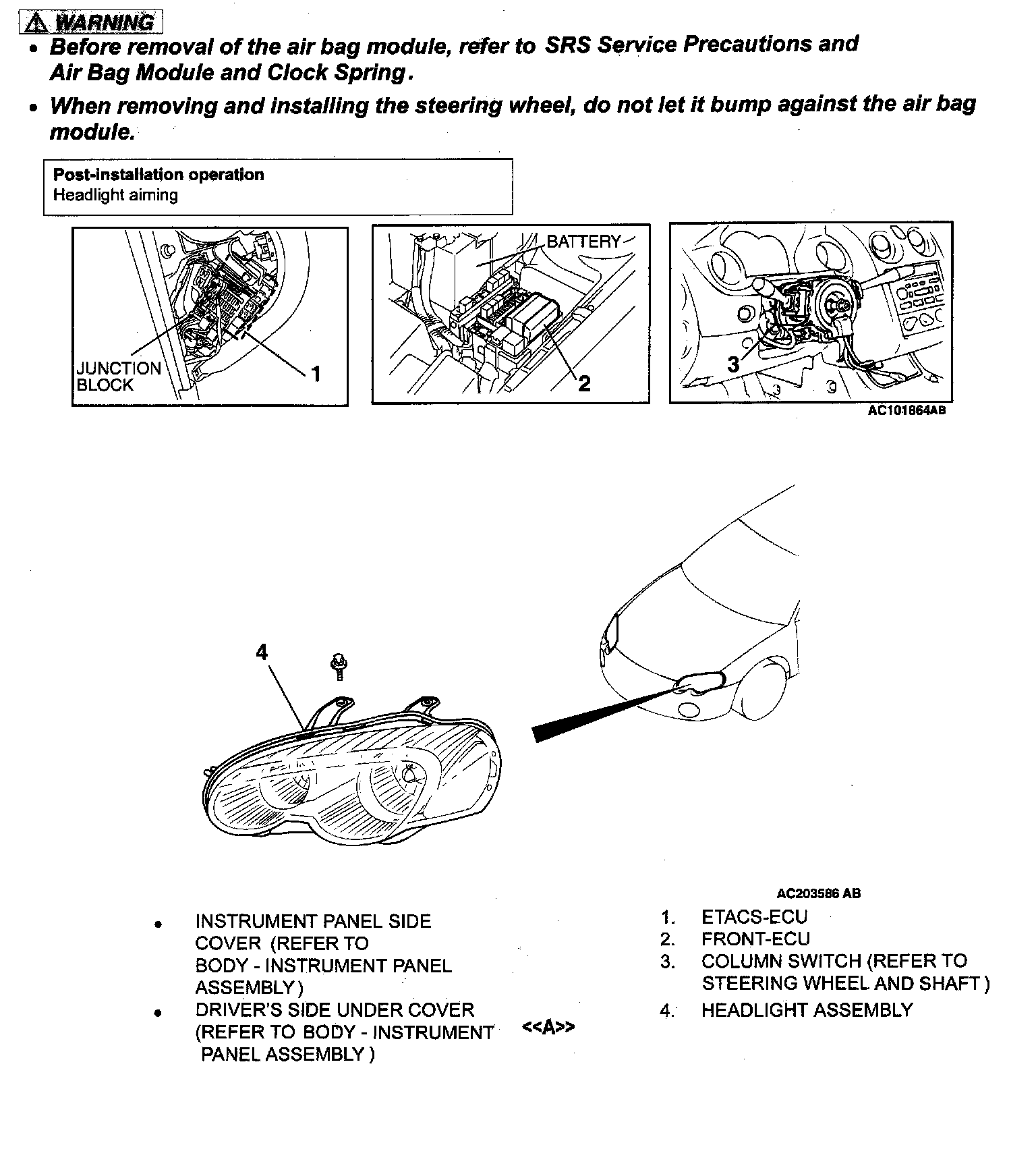

<> HEADLIGHT ASSEMBLY REMOVAL
Remove the headlight assembly by sliding out the front bumper as shown in the illustration.
