Low Beam Headlamp Bulb

REPLACEMENT OF HEADLIGHT BULB

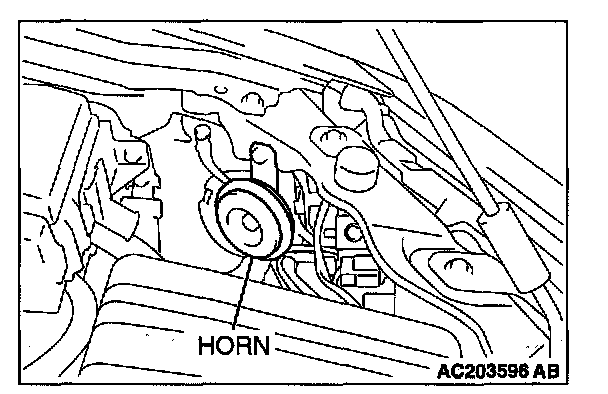

1. Remove the horn (LH side only).
2. Disconnect the connector.

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.

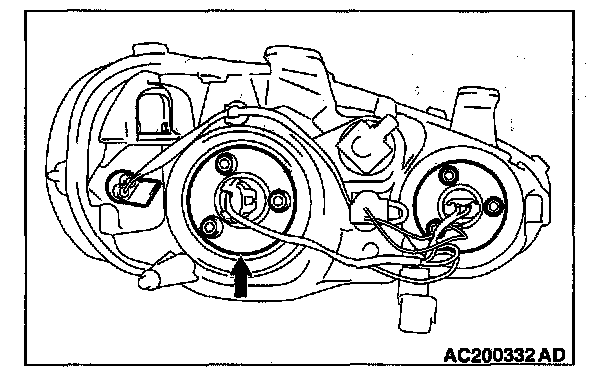

3. Remove the headlight bulb.




4. Install the sealing cover securely after the bulb replacement, or the lens will be out of focus, or water will get inside the light unit.
