Instrument Cluster Replacement

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in Air Bag Module and Clock Spring.

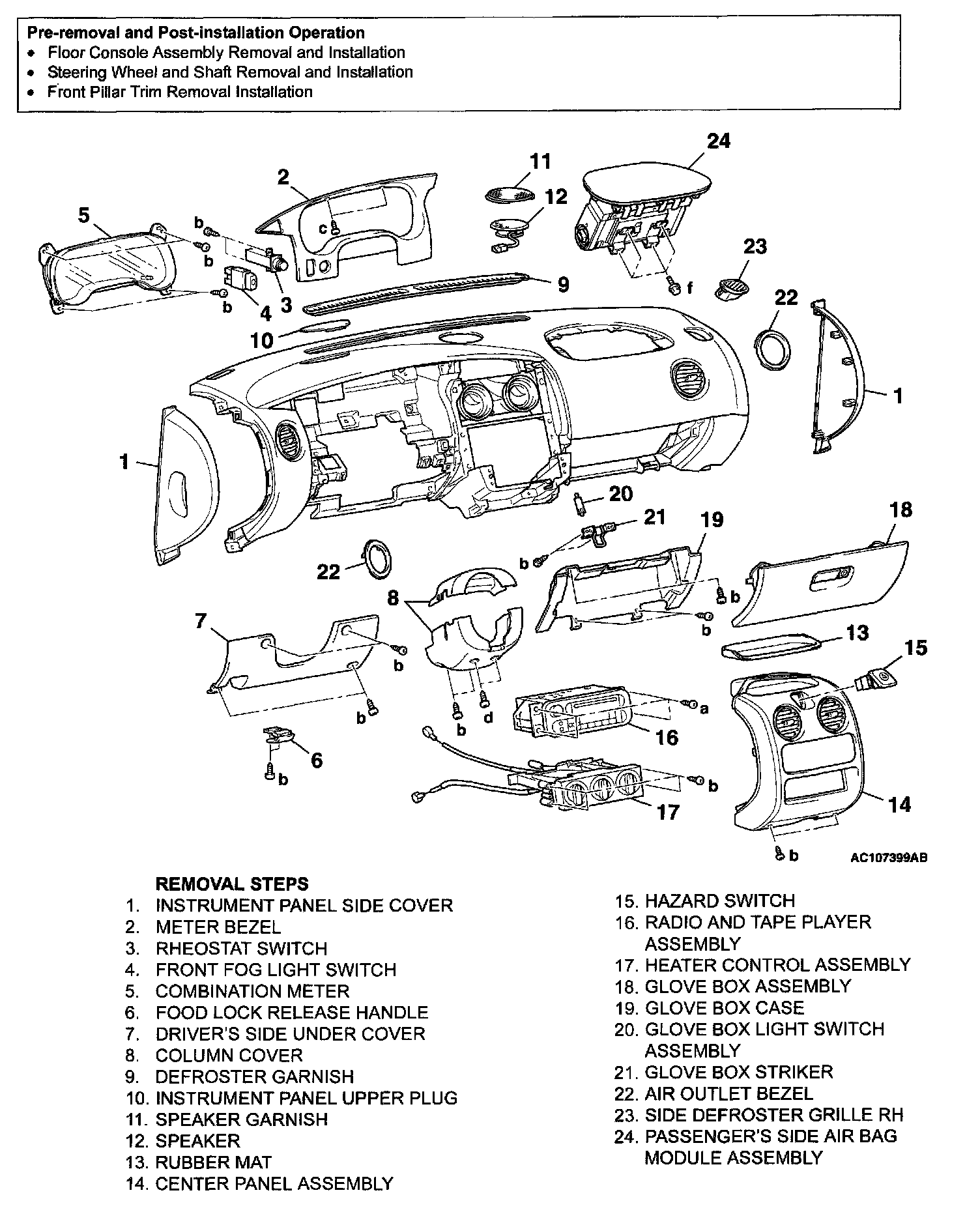

Removal And Installation:

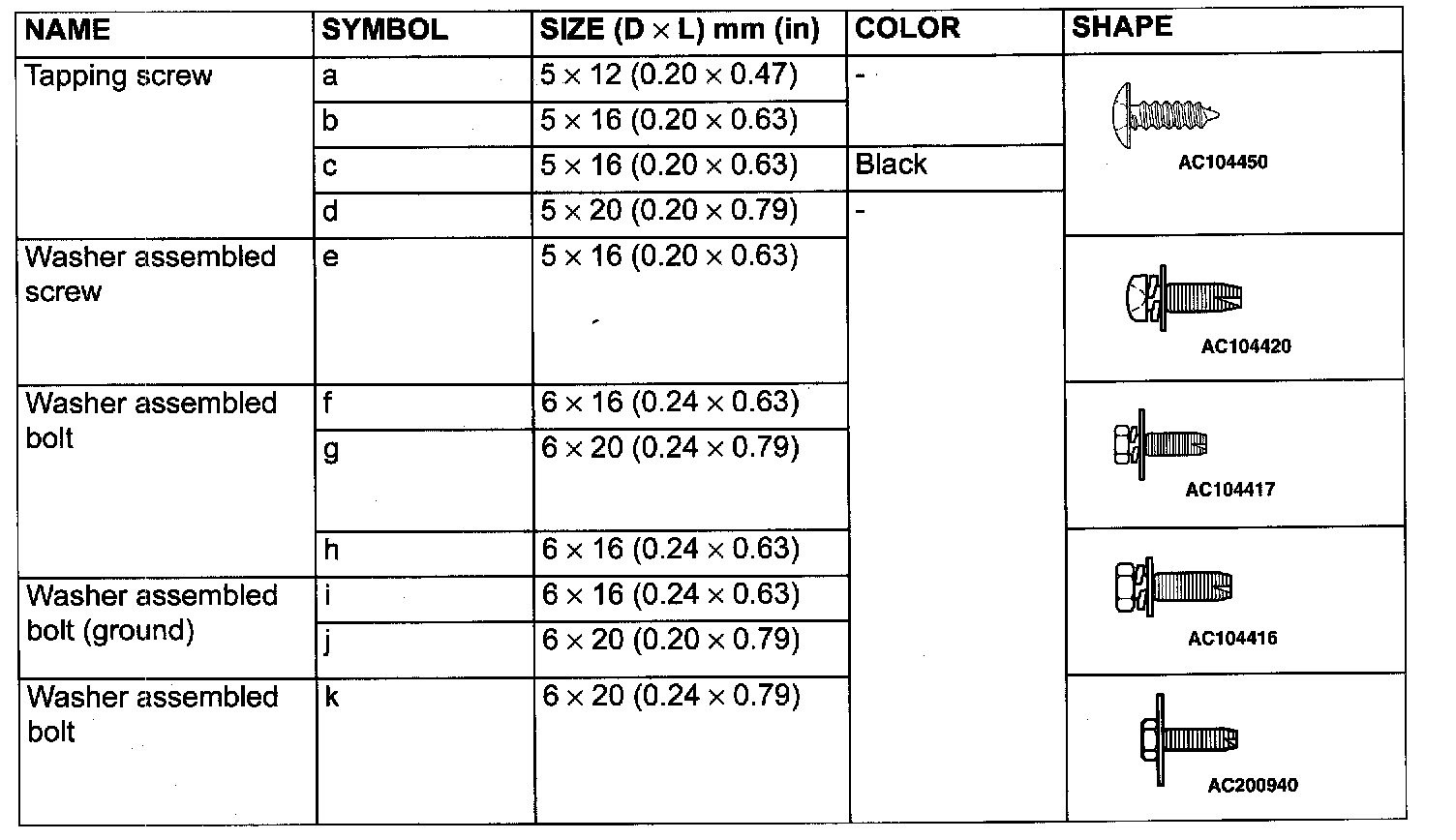

The bolts and screws described below are used for installation of the instrument panel. They are indicated by symbols.
