Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

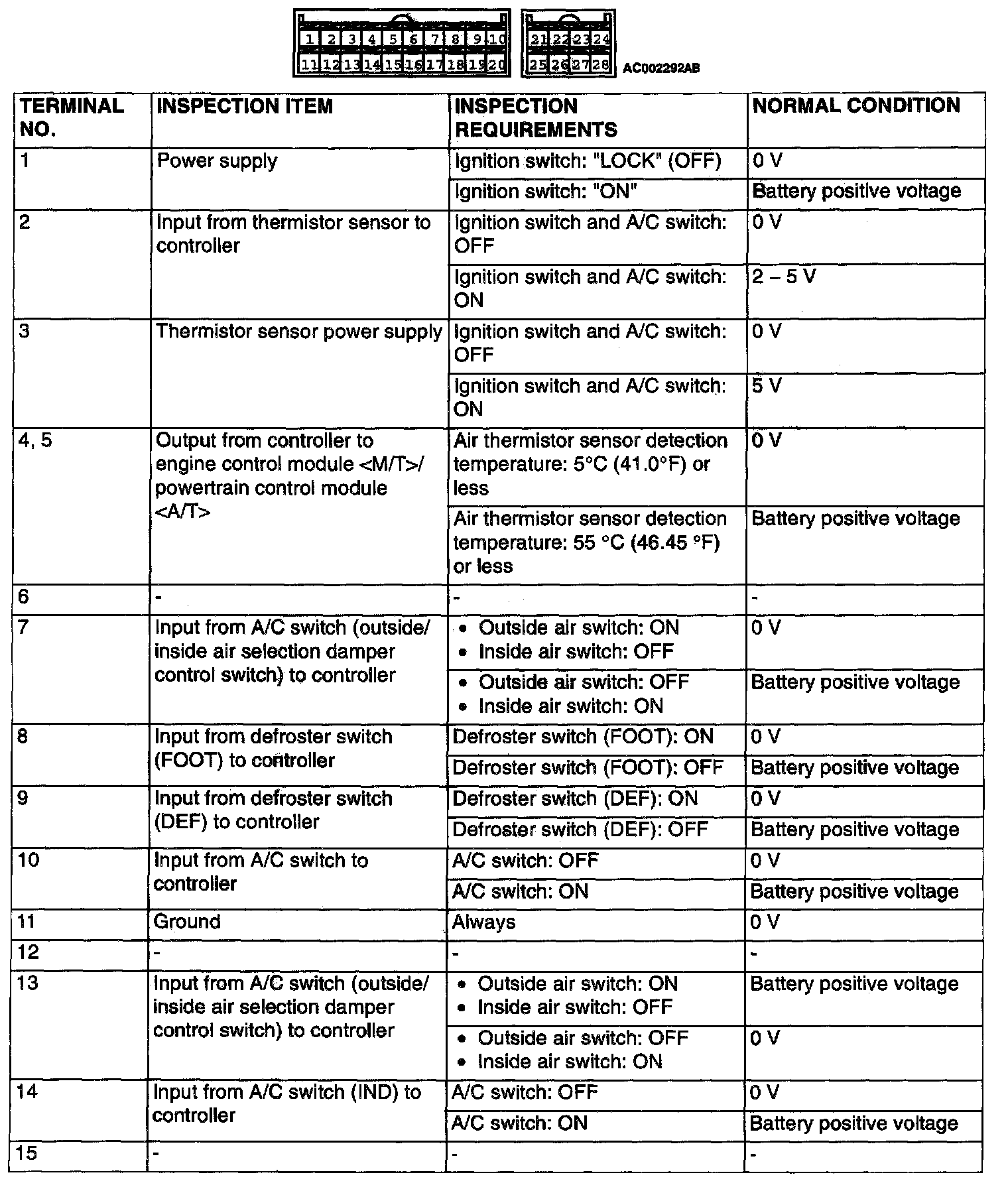

ECU Terminal No: 1 - 15:



ECU Terminal No: 16 - 24:
