Condenser Fan: Service and Repair

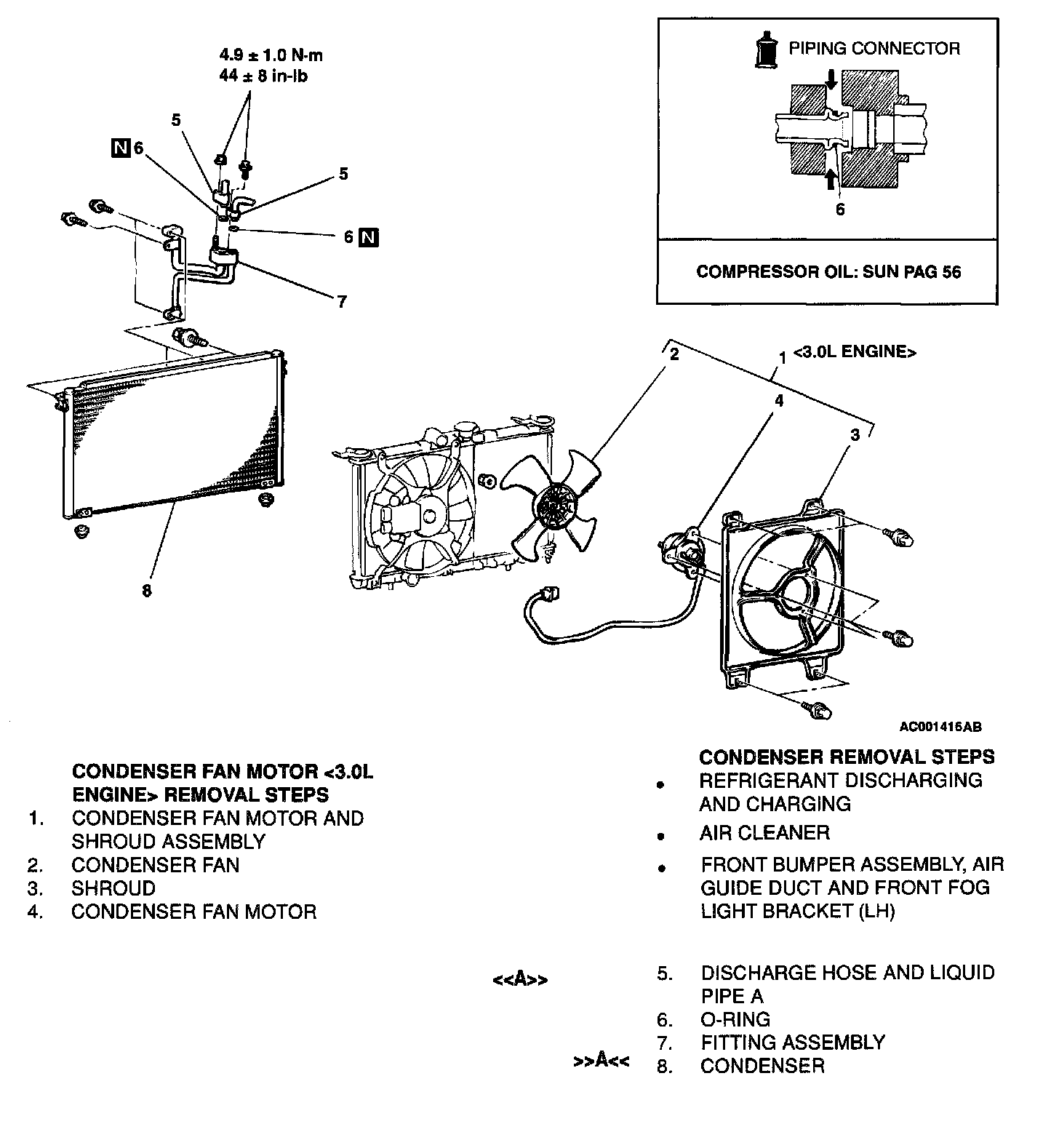

CONDENSER AND CONDENSER FAN MOTORCondenser And Condenser Fan Motor - Removal And Installation:
REMOVAL SERVICE POINT
<> LIQUID PIPE A/DISCHARGE HOSE DISCONNECTION
CAUTION: Seal the hoses completely, otherwise the compressor oil and receiver will absorb water vapor easily, possibly damaging the compressor and deteriorating performance. Plug the disconnected pipe, hose and condenser nipple to prevent foreign material from getting into them.
INSTALLATION SERVICE POINT
>>A<< CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount of compressor oil and install it. (to the vehicle).
- Compressor oil: SUN PAG 56
- Quantity: 15 cu.cm (0.5 floz)
