Initial Inspection and Diagnostic Overview

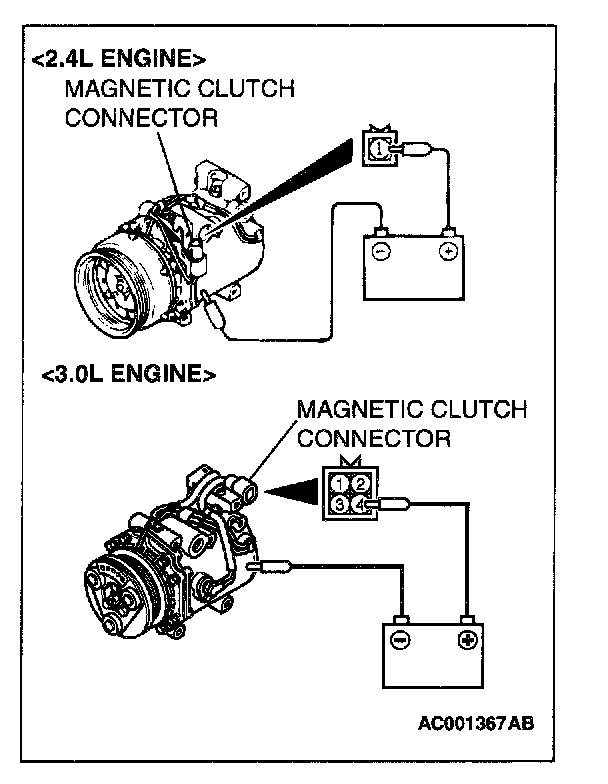

Compressor Magnetic Clutch Operation Check
Connect the positive battery terminal to the compressor magnetic clutch connector terminal 3, and ground the negative battery terminal to the body of the compressor. The condition is normal if the sound of the magnetic clutch (click) can be heard.
