Component Tests and General Diagnostics

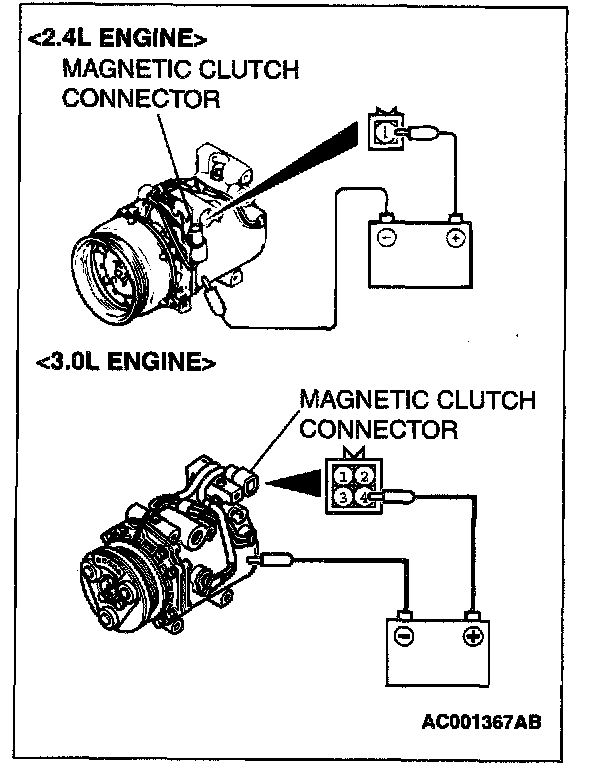

MAGNETIC CLUTCH TEST
1. Disconnect the magnetic clutch connector to the magnetic clutch.




2. Connect positive battery voltage directly to the connector for the magnetic clutch.
3. If the magnetic clutch is normal, there will be "click." If the pullet and armature do not make contact ("click"), there is a malfunction.
