Exhaust Pipe: Service and Repair
EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER <3.0L>
REMOVAL AND INSTALLATION
Required Special Tool:
^ MD998770: Oxygen sensor wrench
REMOVAL SERVICE POINT
<> LEFT BANK HEATED OXYGEN SENSOR (REAR)/ RIGHT BANK HEATED OXYGEN SENSOR (REAR)/RIGHT BANK HEATED OXYGEN SENSOR (FRONT) REMOVAL

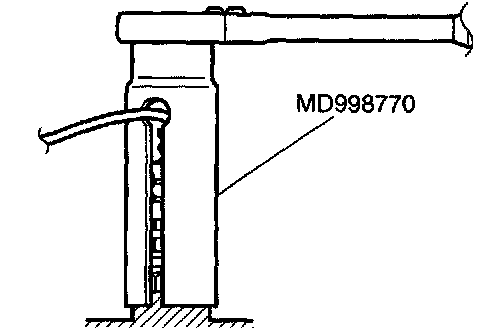

Use special tool MD998770 to remove the oxygen sensor.
INSTALLATION SERVICE POINT
>>A<< RIGHT BANK HEATED OXYGEN SENSOR:(FRONT)/ RIGHT BANK HEATED OXYGEN SENSOR (REAR)/LEFT BANK HEATED OXYGEN SENSOR (REAR) INSTALLATION
Use special tool MDb98770 to installation the oxygen sensor.
