Water Pump: Service and Repair

WATER PUMP

REMOVAL AND INSTALLATION

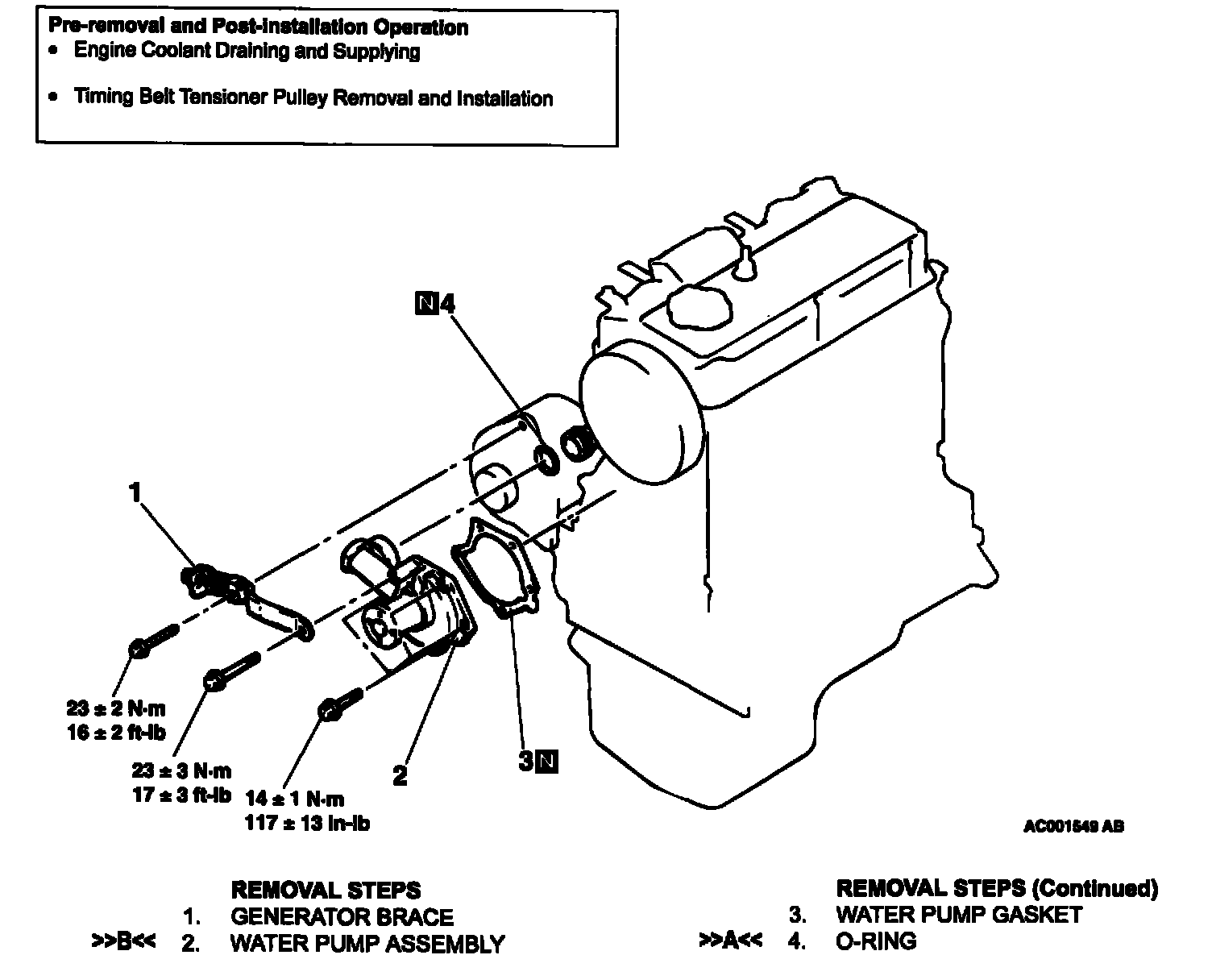

<2.4L ENGINE>





<3.0L ENGINE>

INSTALLATION SERVICE POINTS

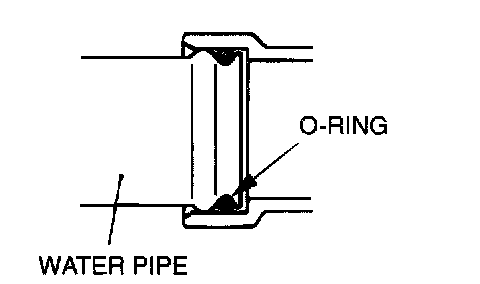

>>A<< O-RING INSTALLATION

CAUTION
^ Care must be taken not to permit engine oil or other grease to adhere to the O-ring.
^ When inserting the pipe, check to be sure that there is no sand, dirt, etc. on its inner surface.





Rinse the mounting location of O-ring and water pipe with water, and install the O-ring and water pipe.

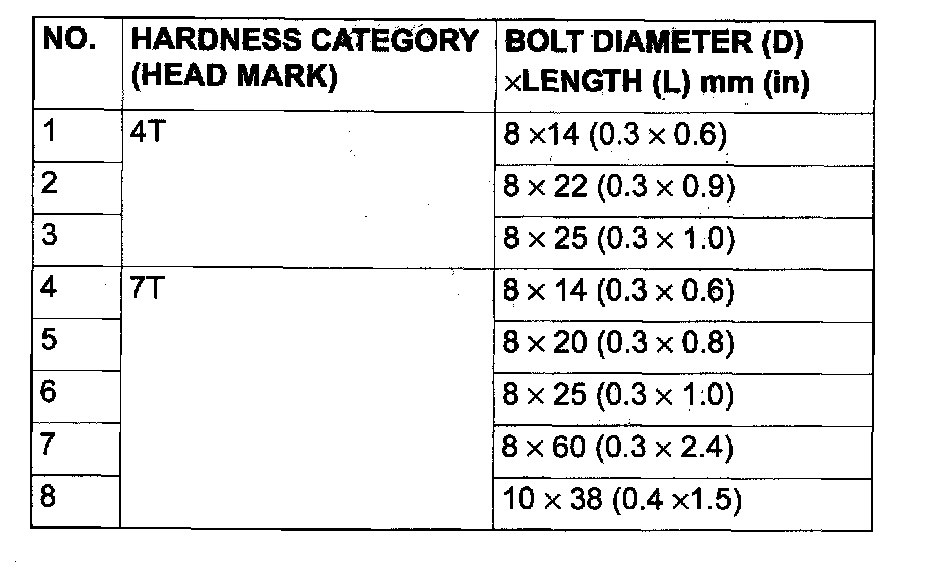

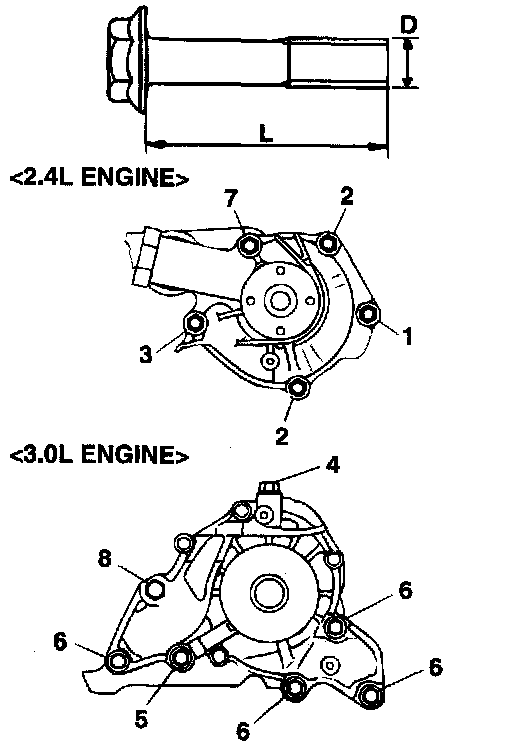

>>B<< WATER PUMP-ASSEMBLY INSTALLATION
