Radiator: Service and Repair

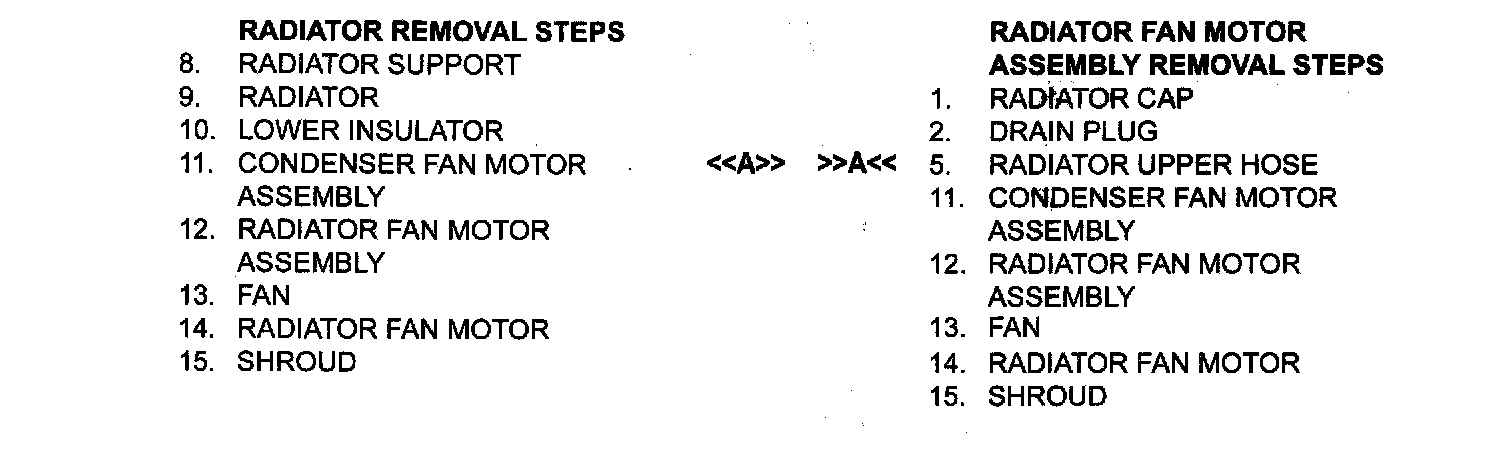

RADIATORREMOVAL AND INSTALLATION
<2.4L ENGINE>
<3.0L ENGINE>
REMOVAL SERVICE POINTS
<> RADIATOR UPPER HOSE/RADIATOR LOWER HOSE DISCONNECTION

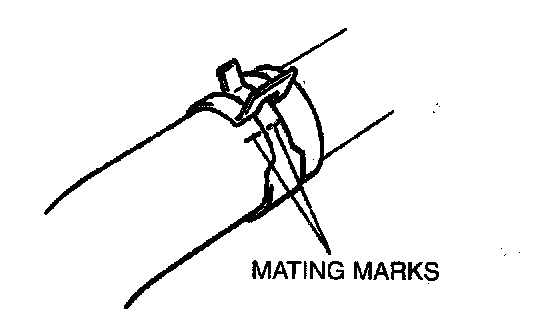

After making mating marks on the radiator hose and the hose clamp, disconnect the radiator hose.
<> A/T OIL COOLER HOSE REMOVAL
After removing the hose from the radiator, plug the hose and the radiator nipple to prevent dust or foreign particles from getting in.
INSTALLATION SERVICE POINT
>>A<< RADIATOR LOWER HOSE/RADIATOR UPPER HOSE CONNECTION

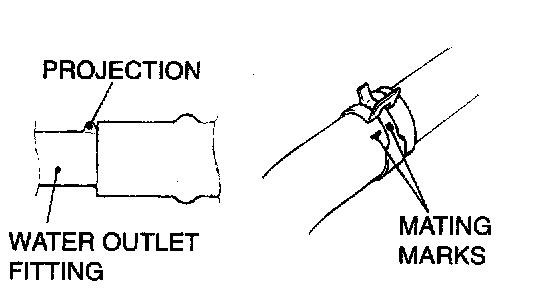

1. Insert each hose as far as the projection of the water inlet fitting.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
