Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Splices >> Dash Panel

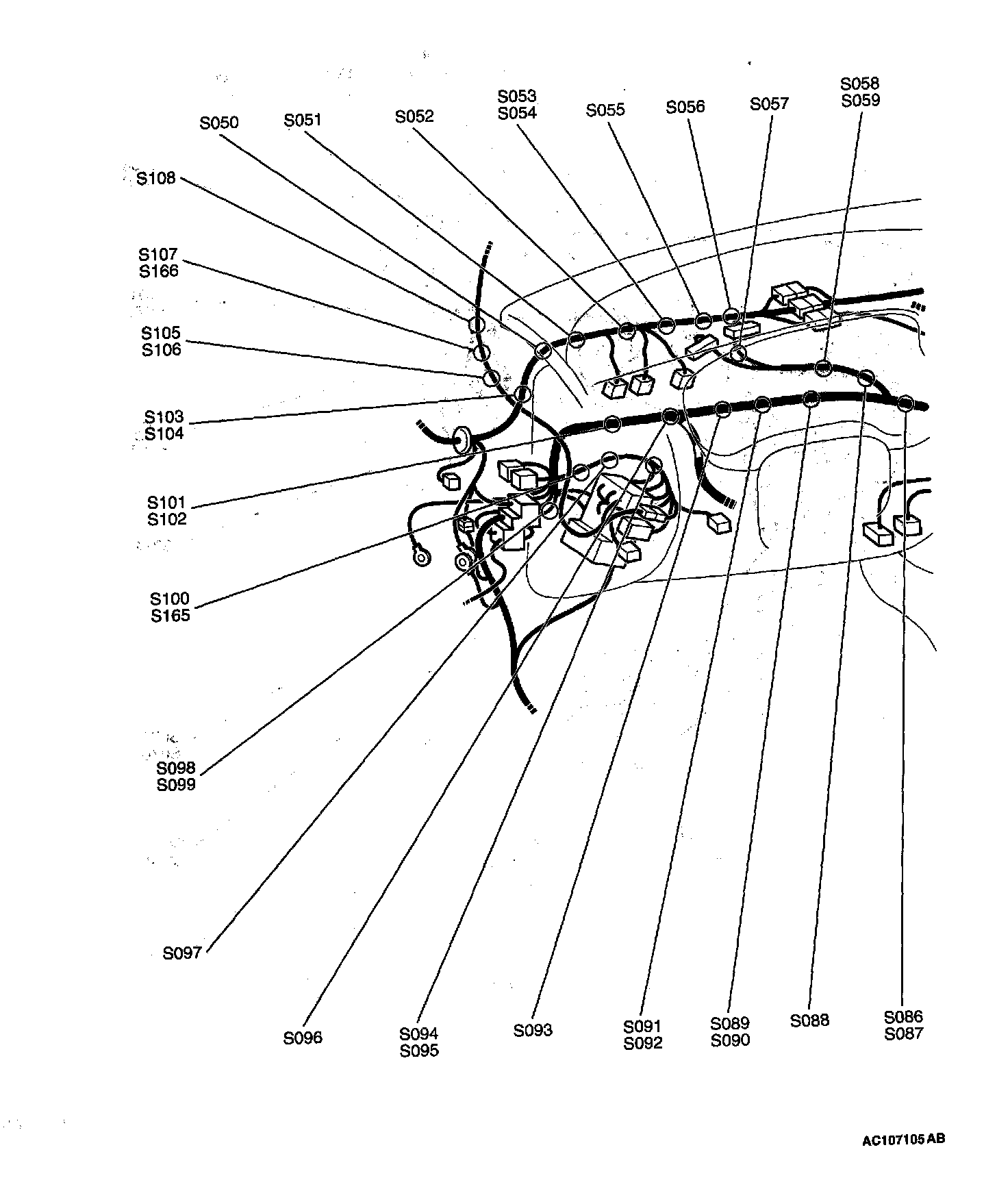

Dash Panel

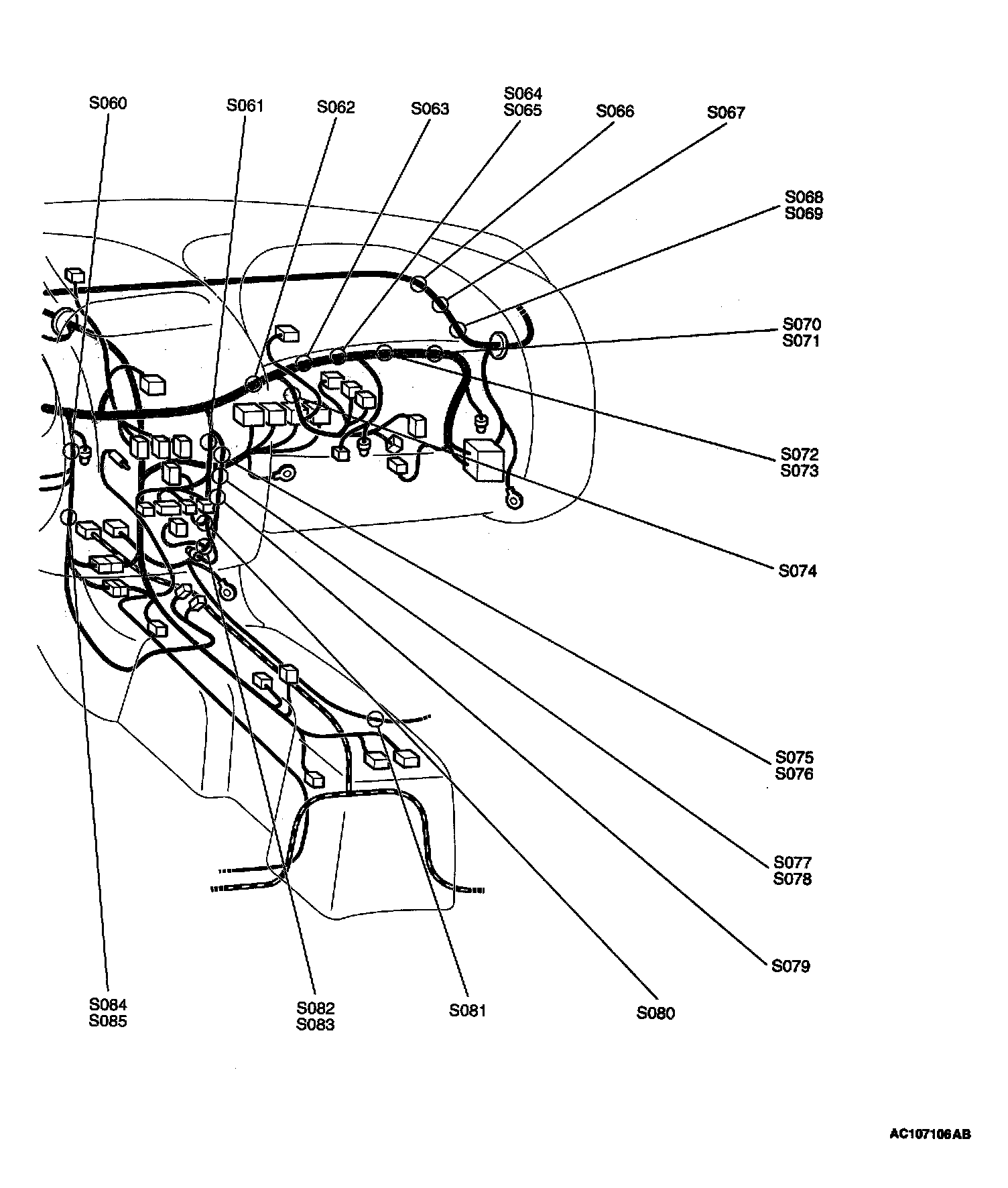

S060-S085:

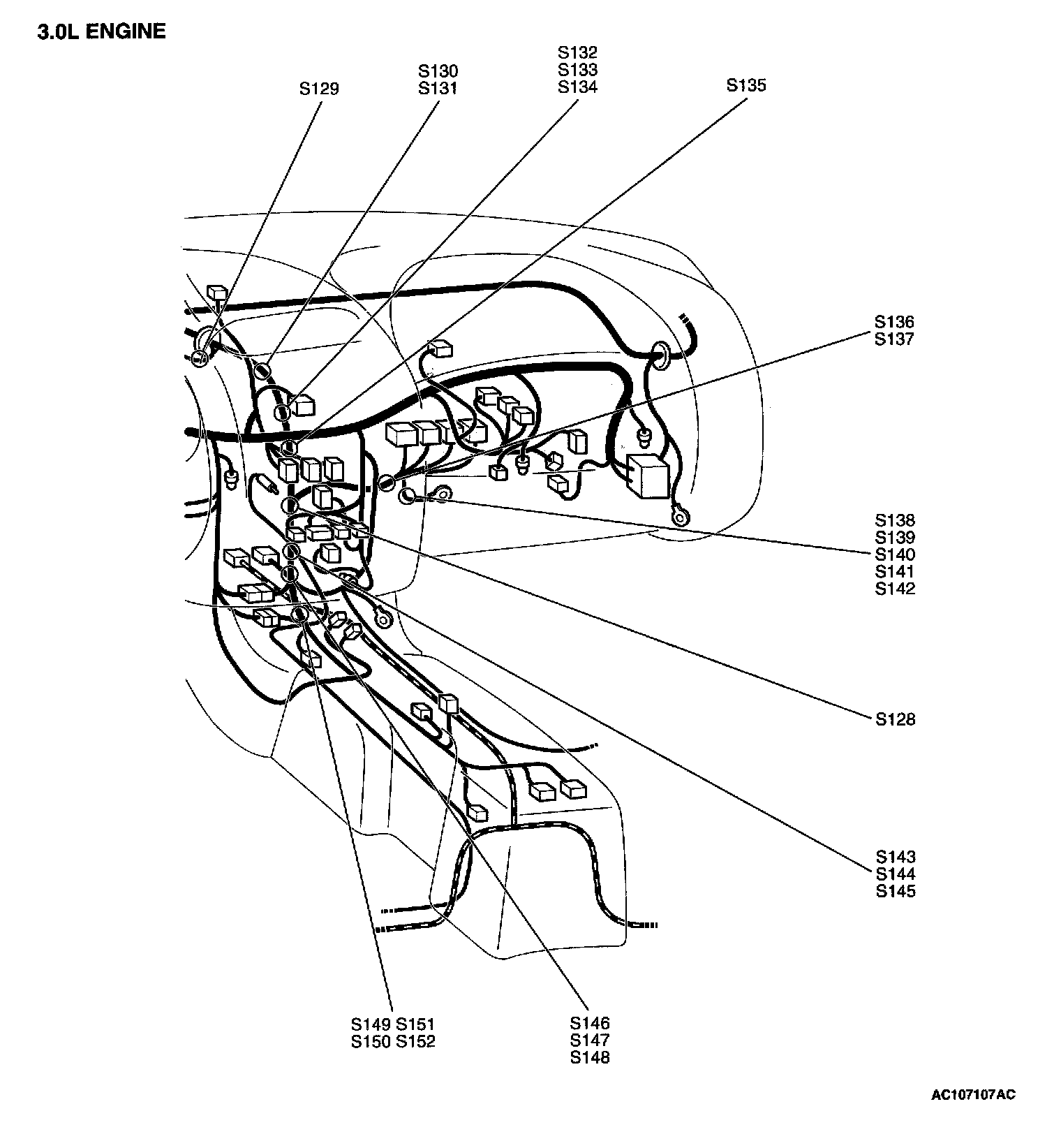

S129-S152:
