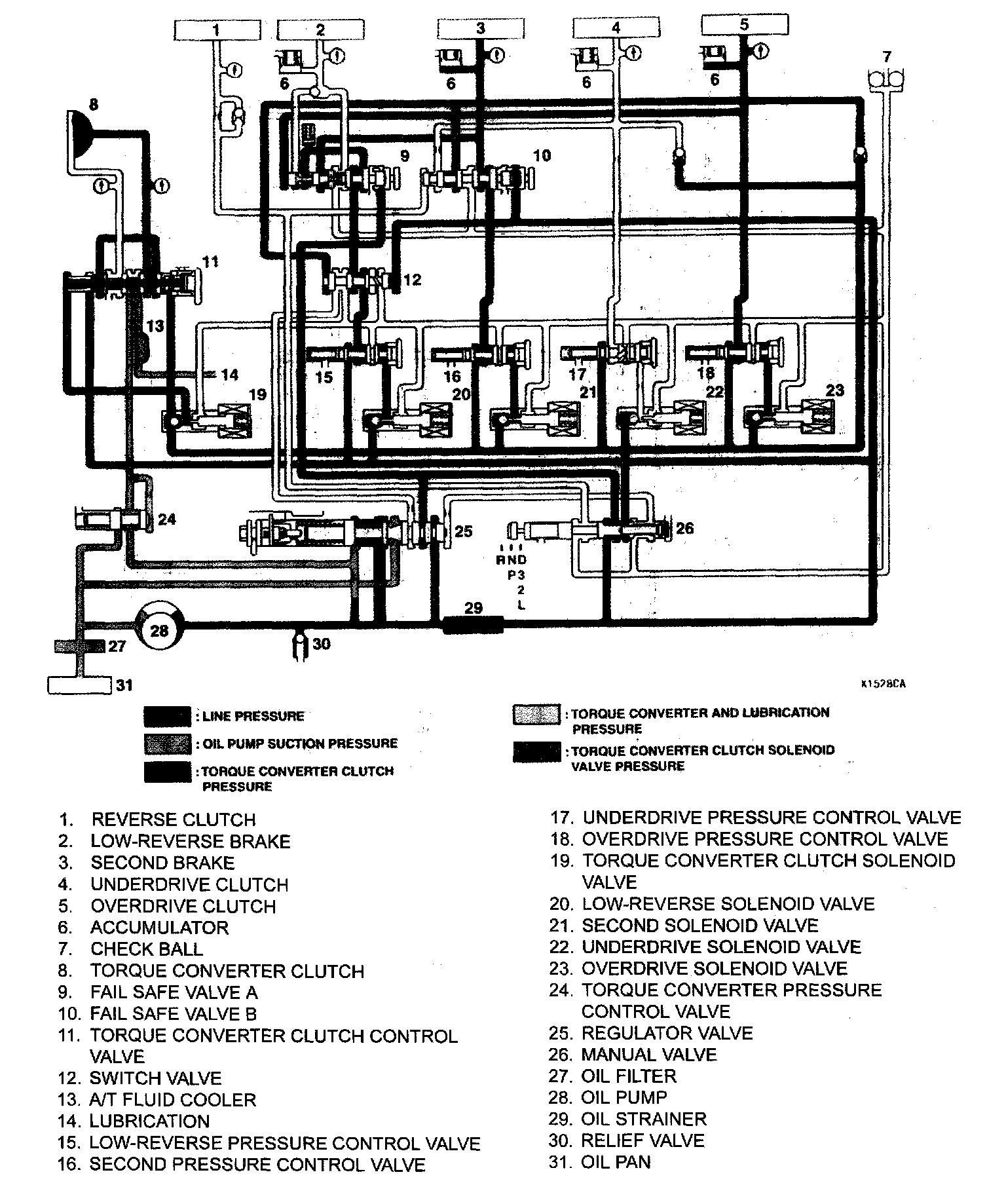

Fail-Safe (In Case of Fail-Safe Valve A Operation)
Fail-Safe (In Case of Fail-Safe Valve A Operation)
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE A OPERATION)
