Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram >> Overhaul (Engine Overhaul) >> Piston and Connecting Rod

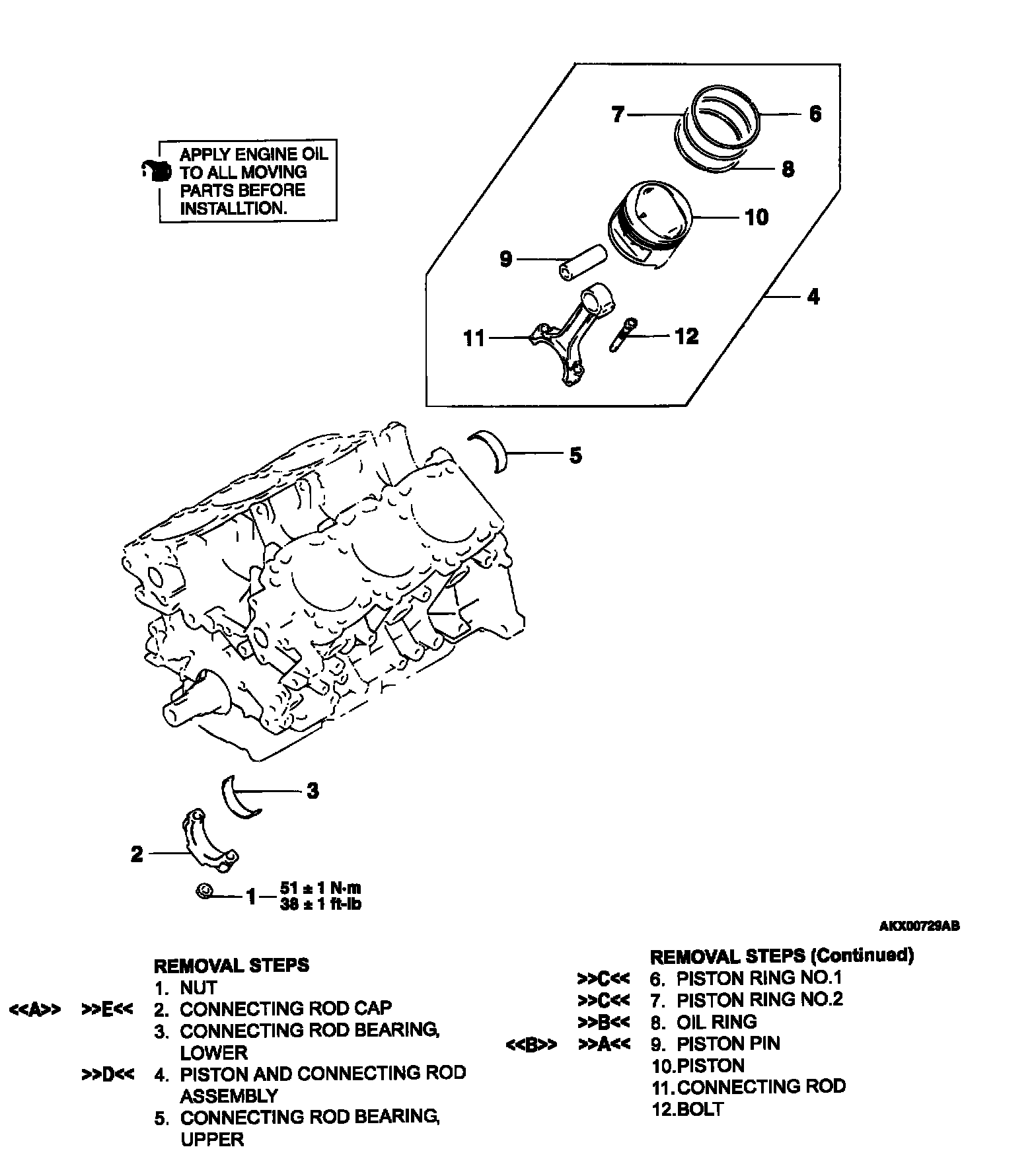

Piston and Connecting Rod

PISTON AND CONNECTING ROD
