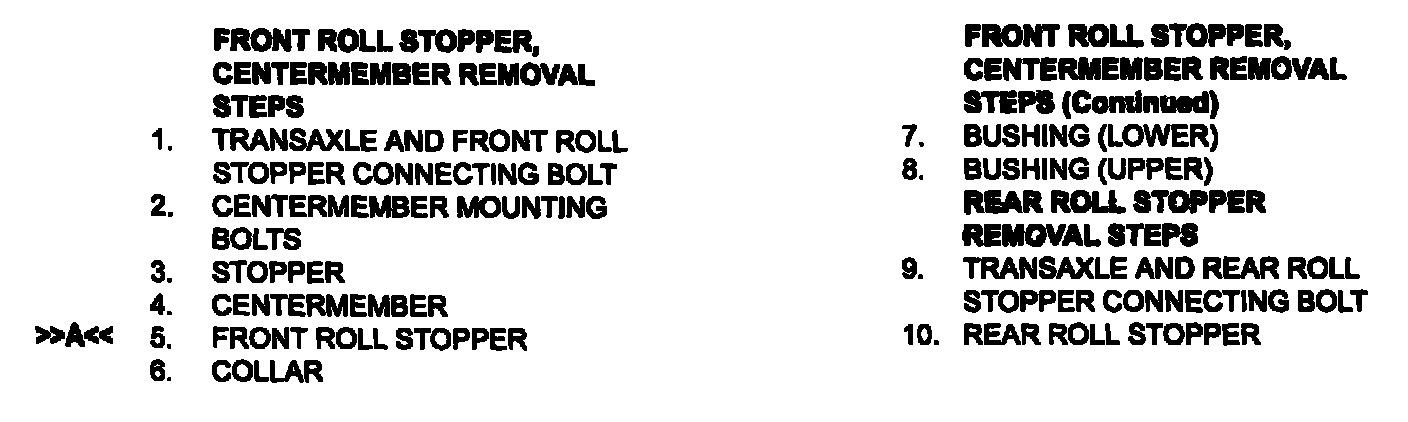

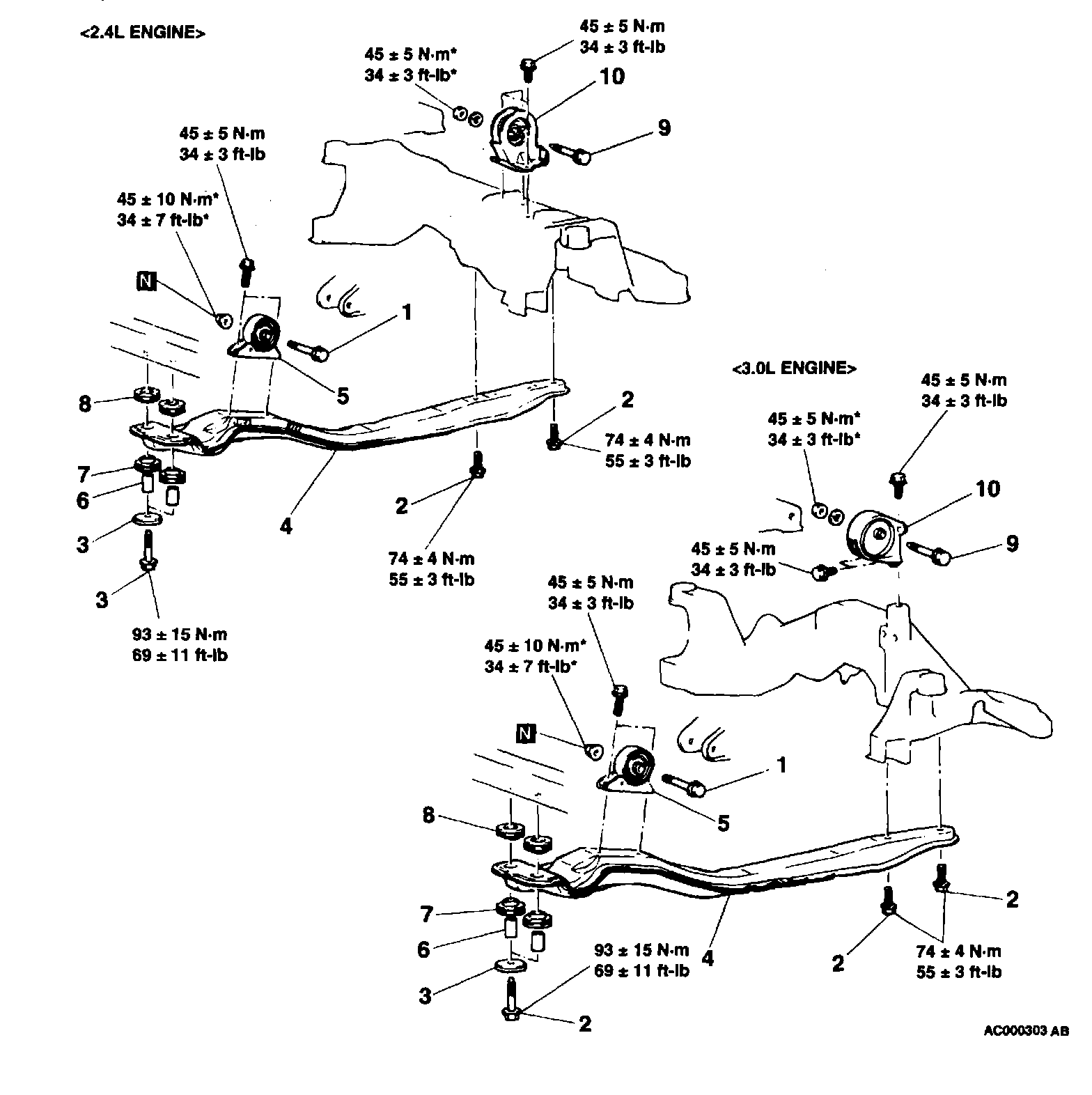

Engine Roll Stopper and Center Member

ENGINE ROLL STOPPER AND CENTERMEMBER








CAUTION: Mounting indications marked by * should be provisionally tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
