FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
2003
>>
Sebring Coupe V6-3.0L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Coolant Line/Hose
Coolant Line/Hose

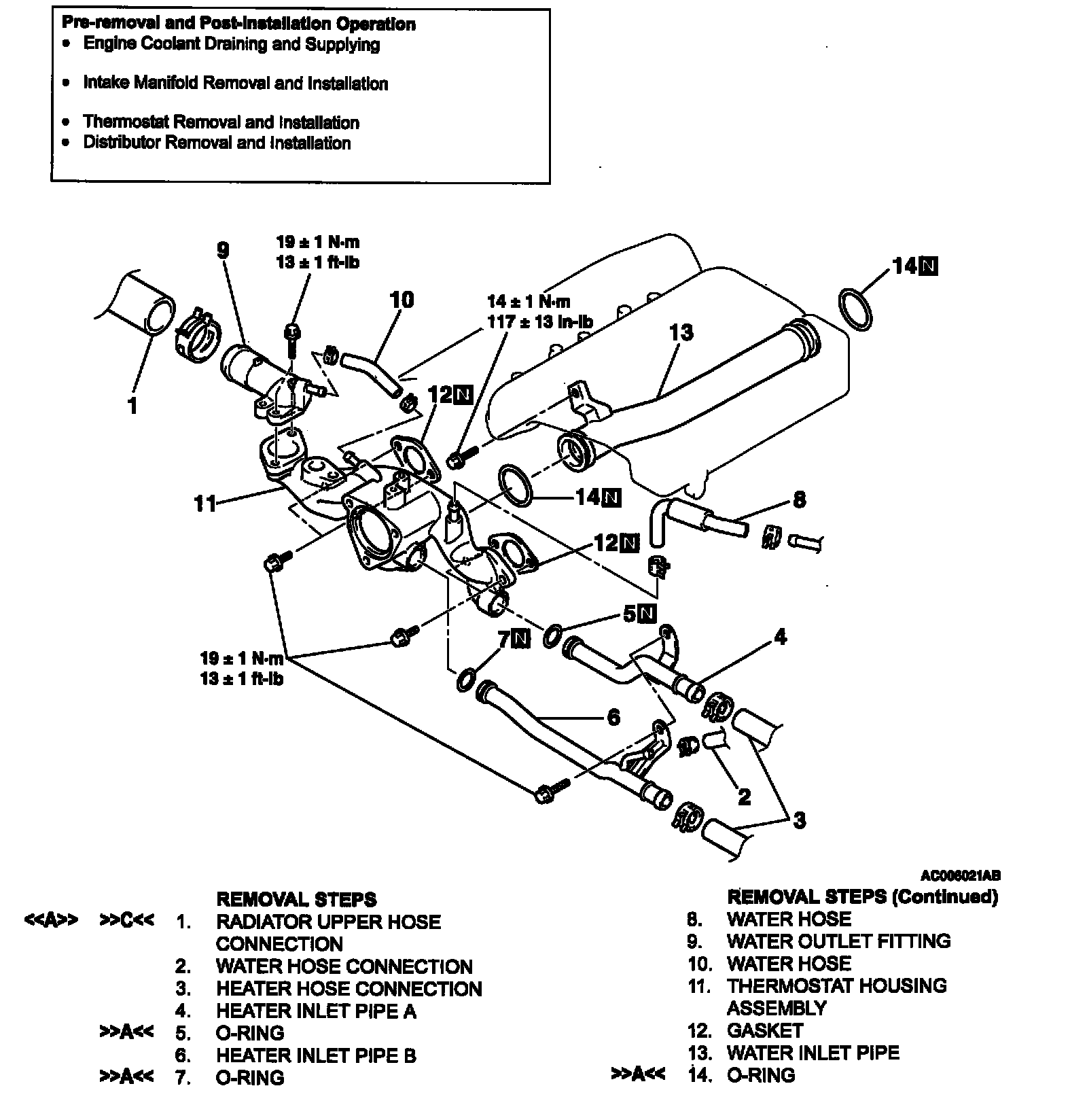

WATER HOSE AND WATER PIPE REMOVAL AND INSTALLATION
<3.0L ENGINE>
