Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Catalytic Converter

Catalytic Converter

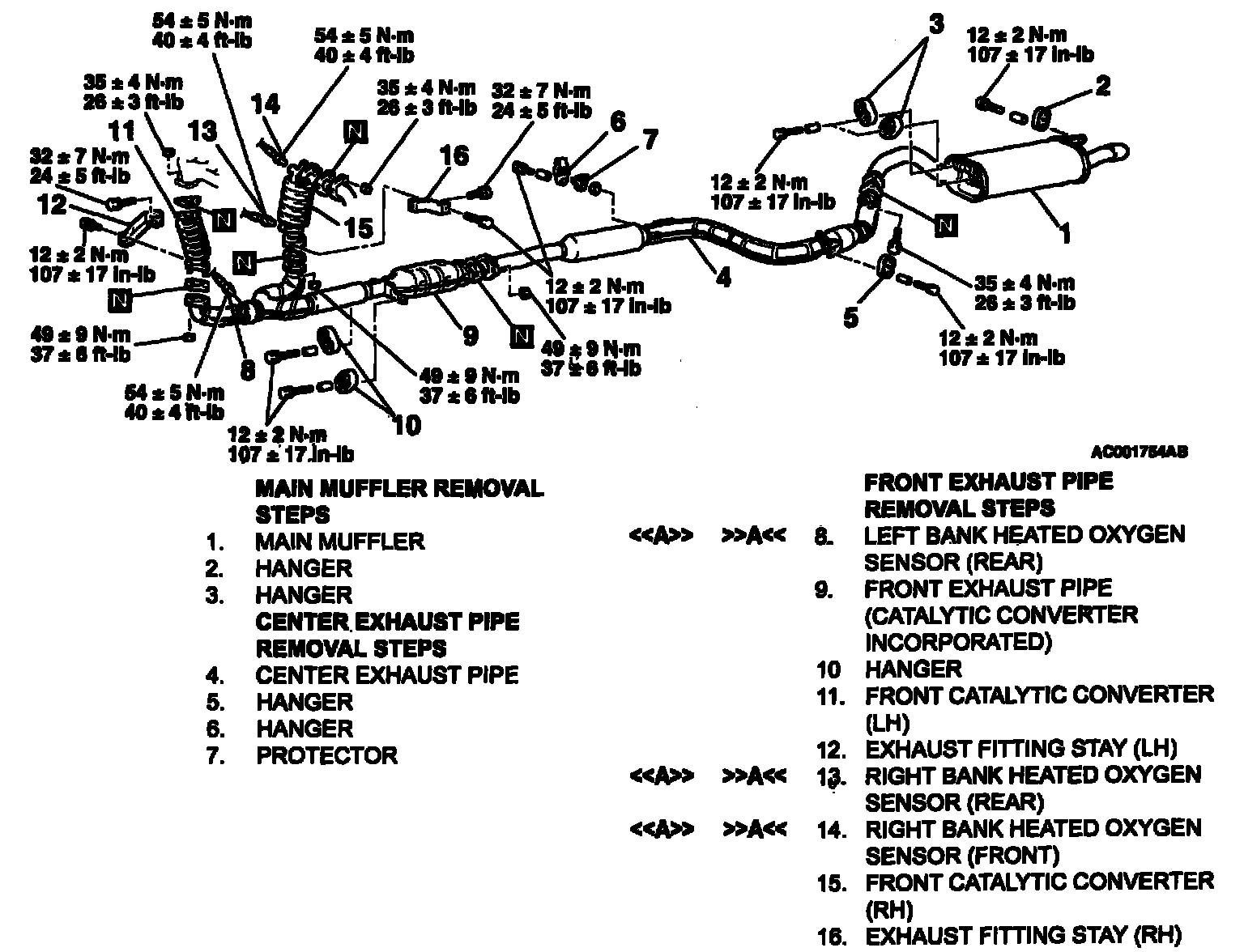

EXHAUST PIPE, MAIN MUFFLER AND CATALYTIC CONVERTER <3.0L>
