Transaxle

TRANSAXLE

DISASSEMBLY AND ASSEMBLY














- 2.4L














- 3.0L

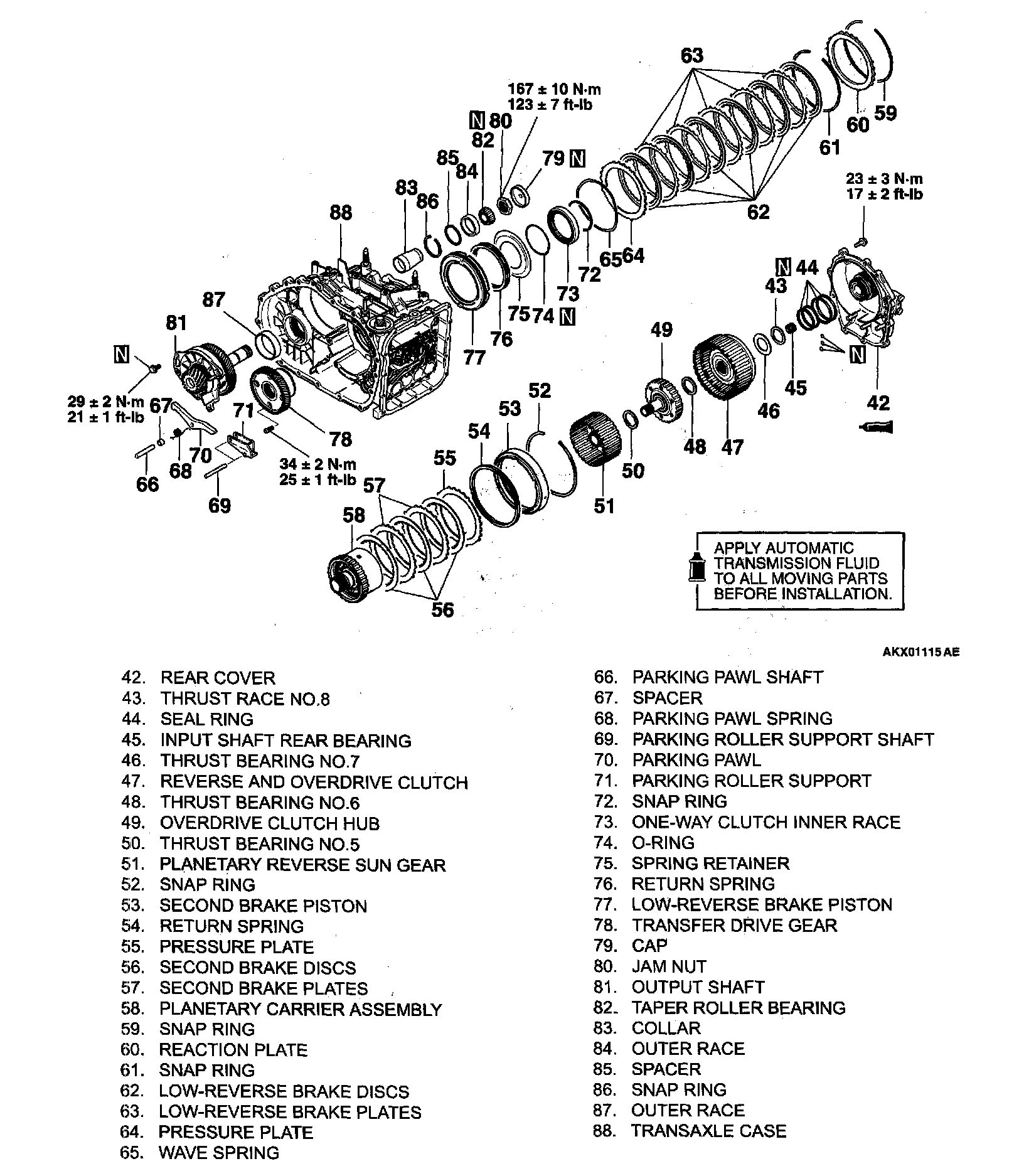

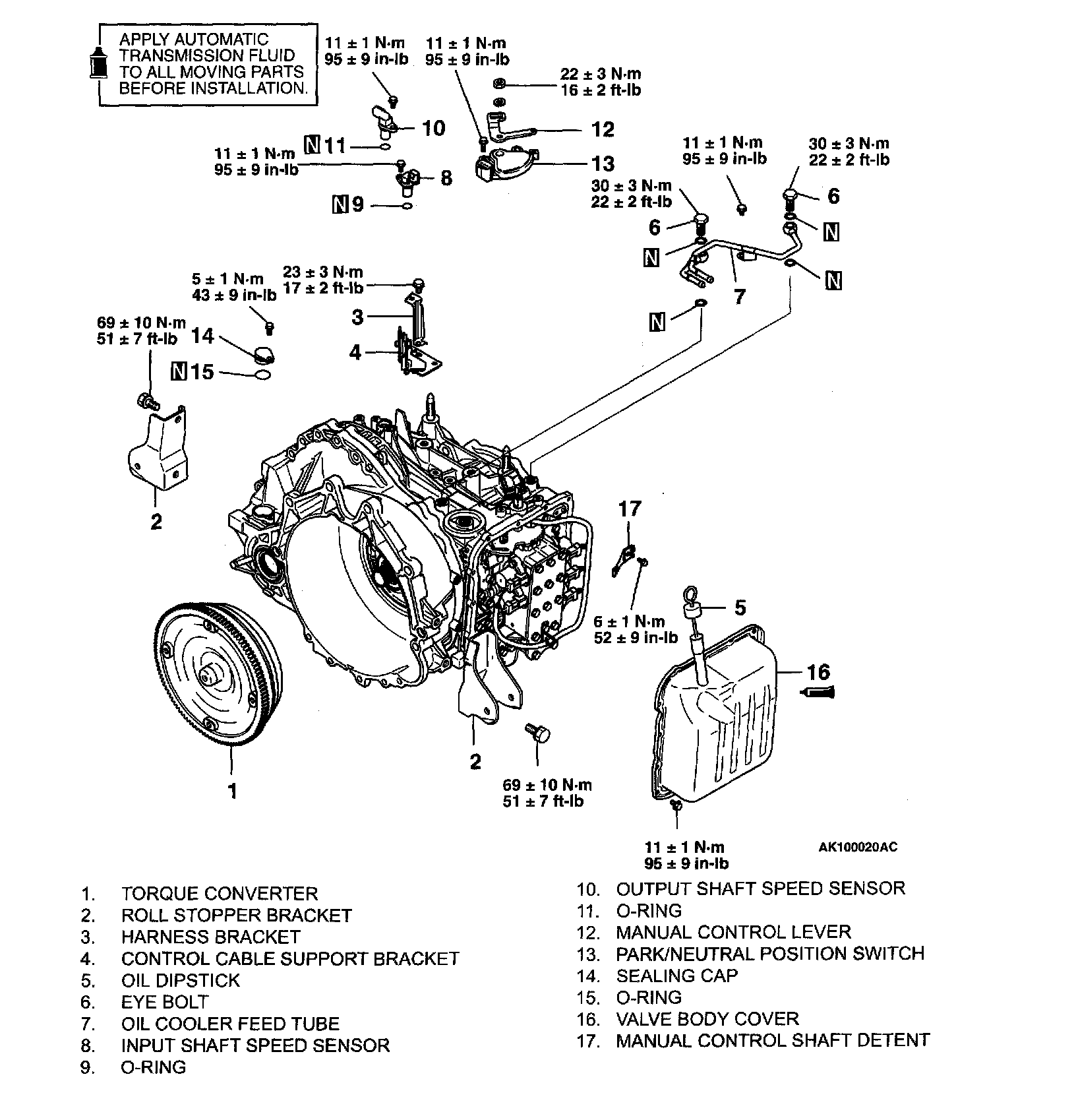

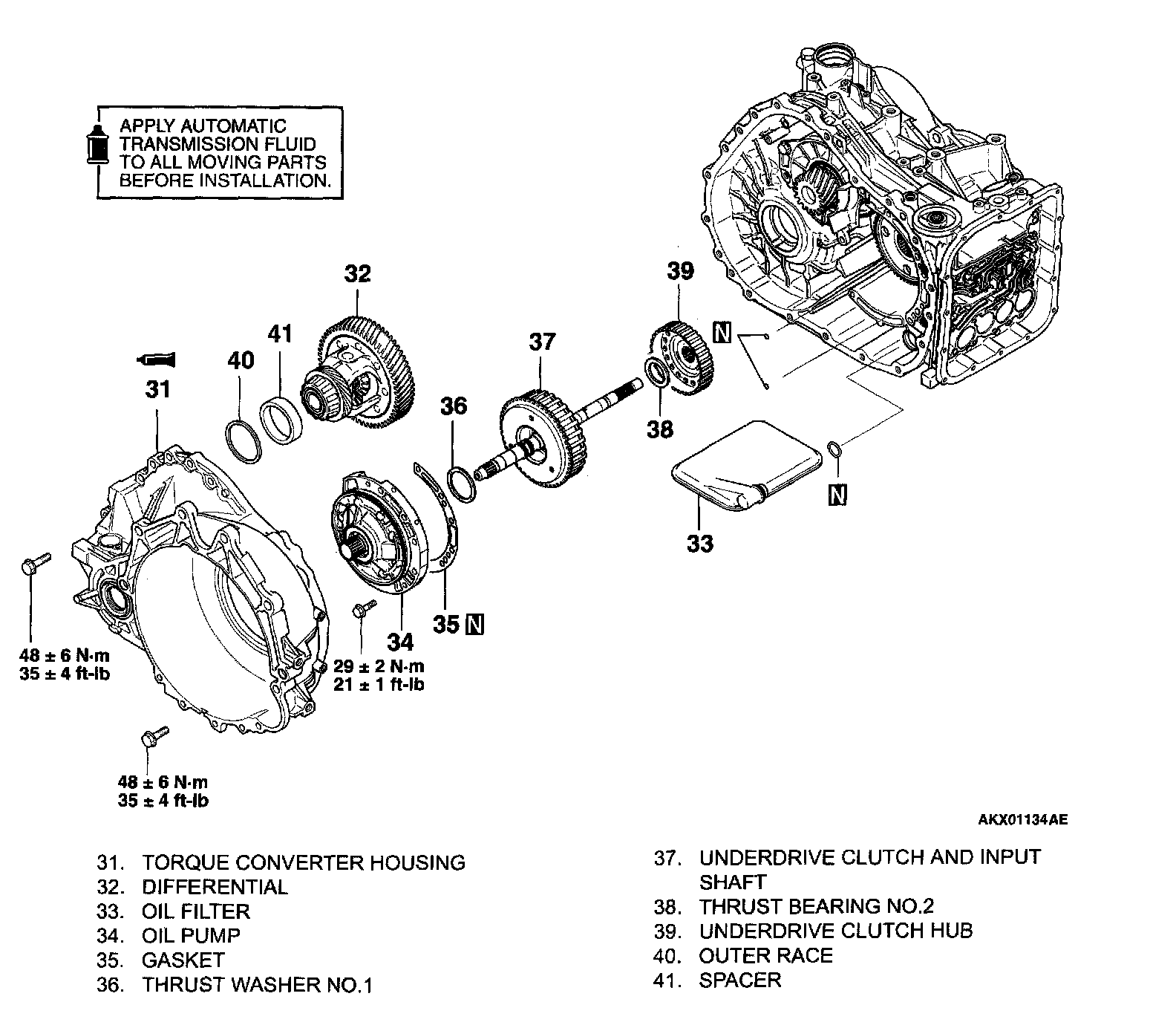

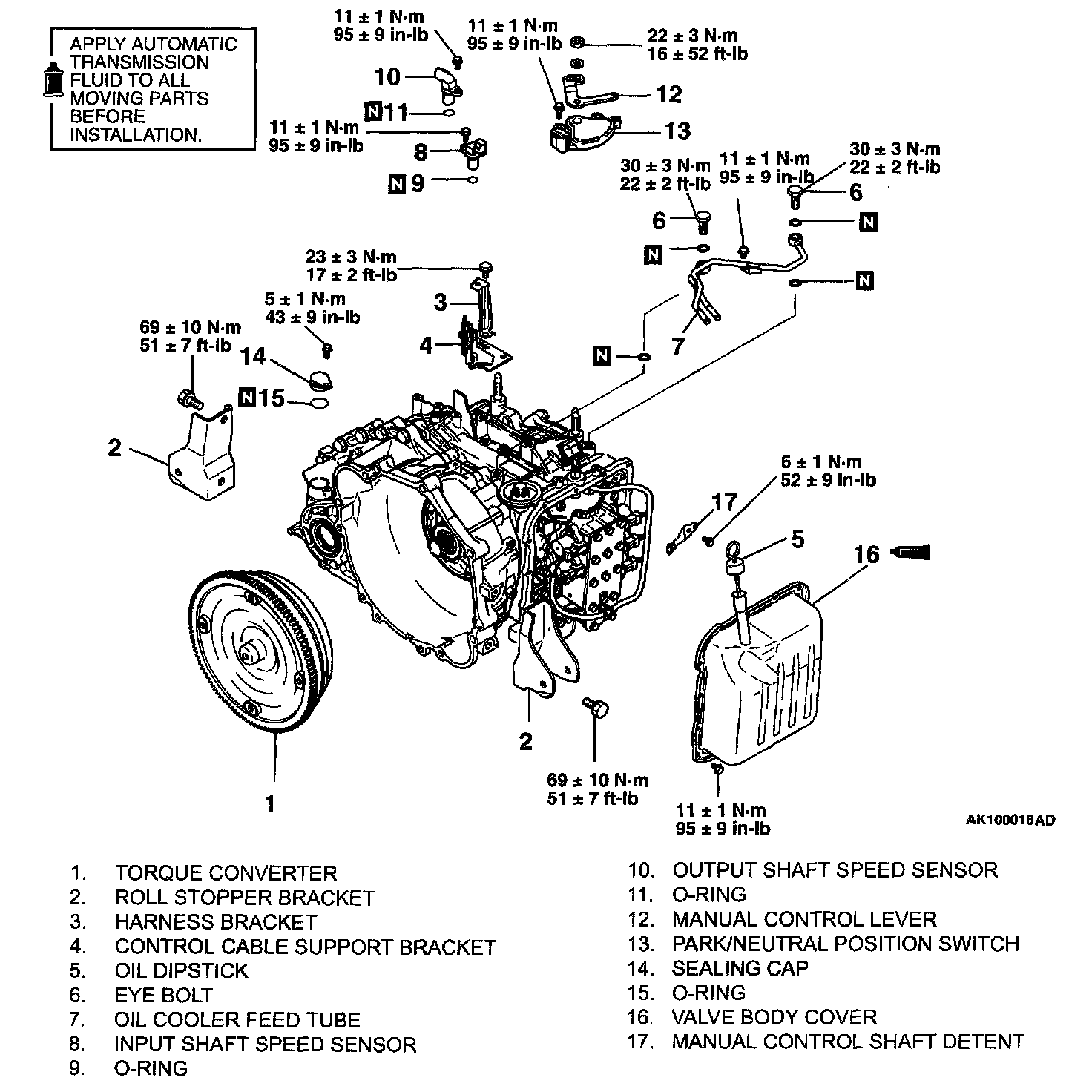

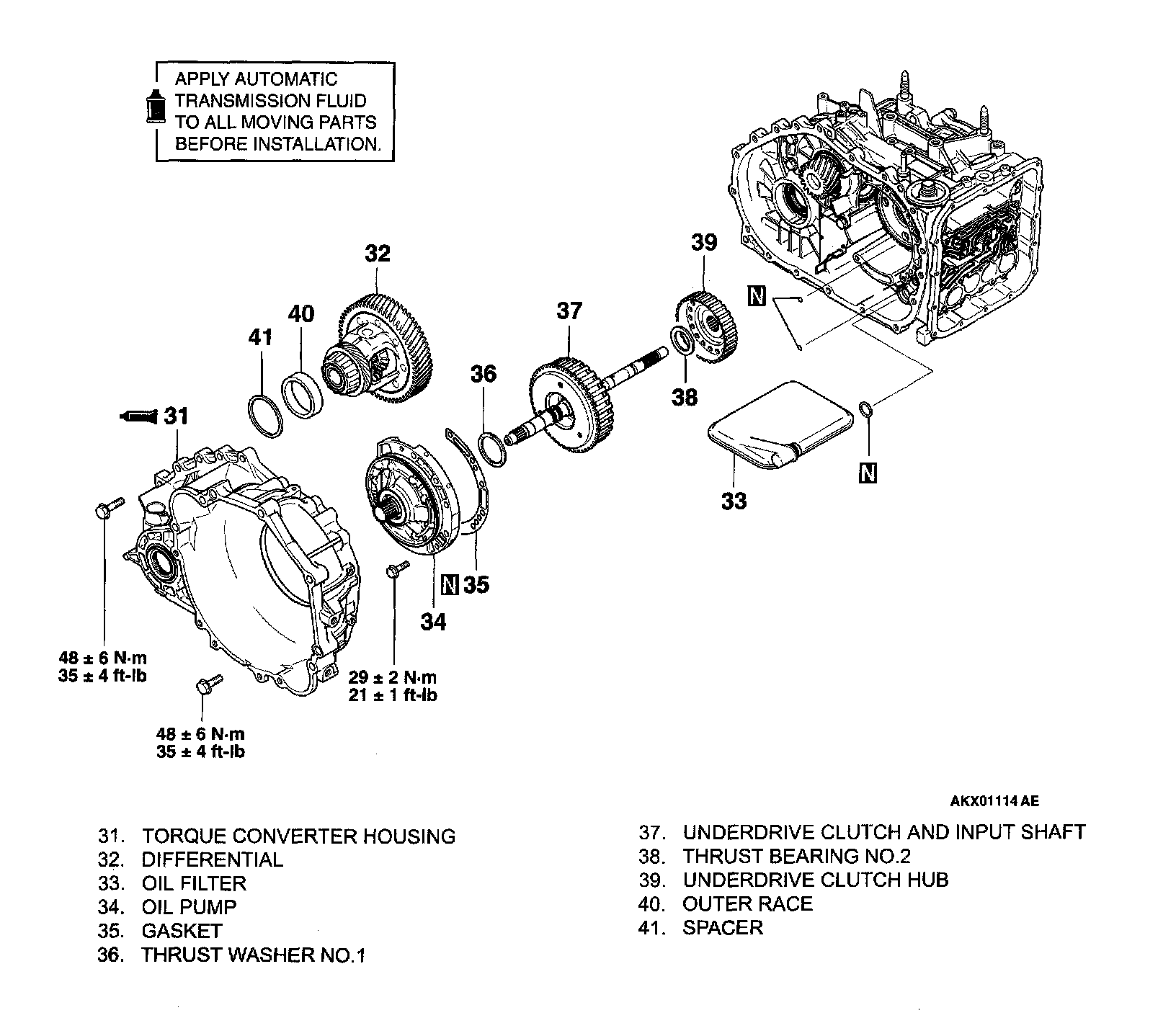

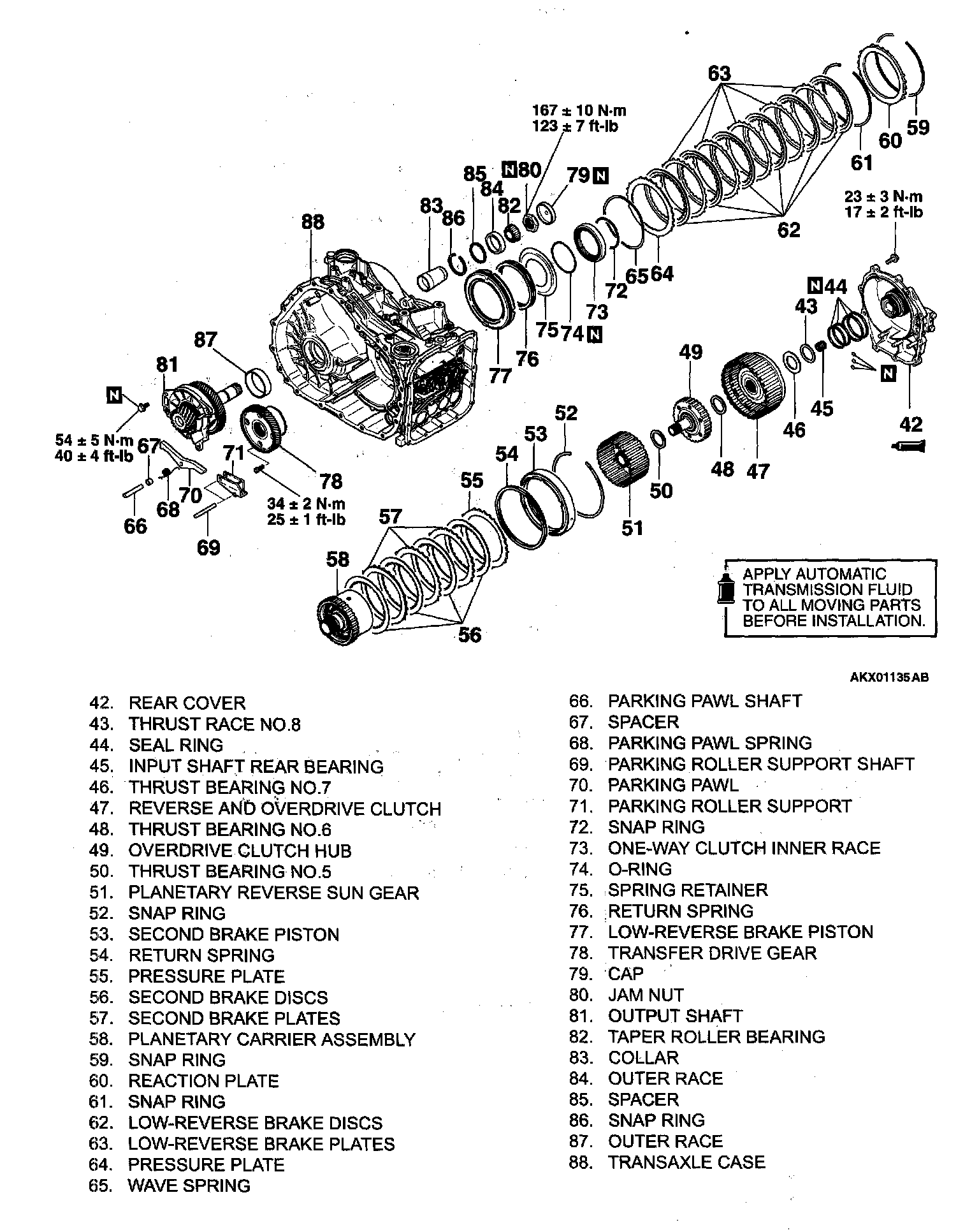

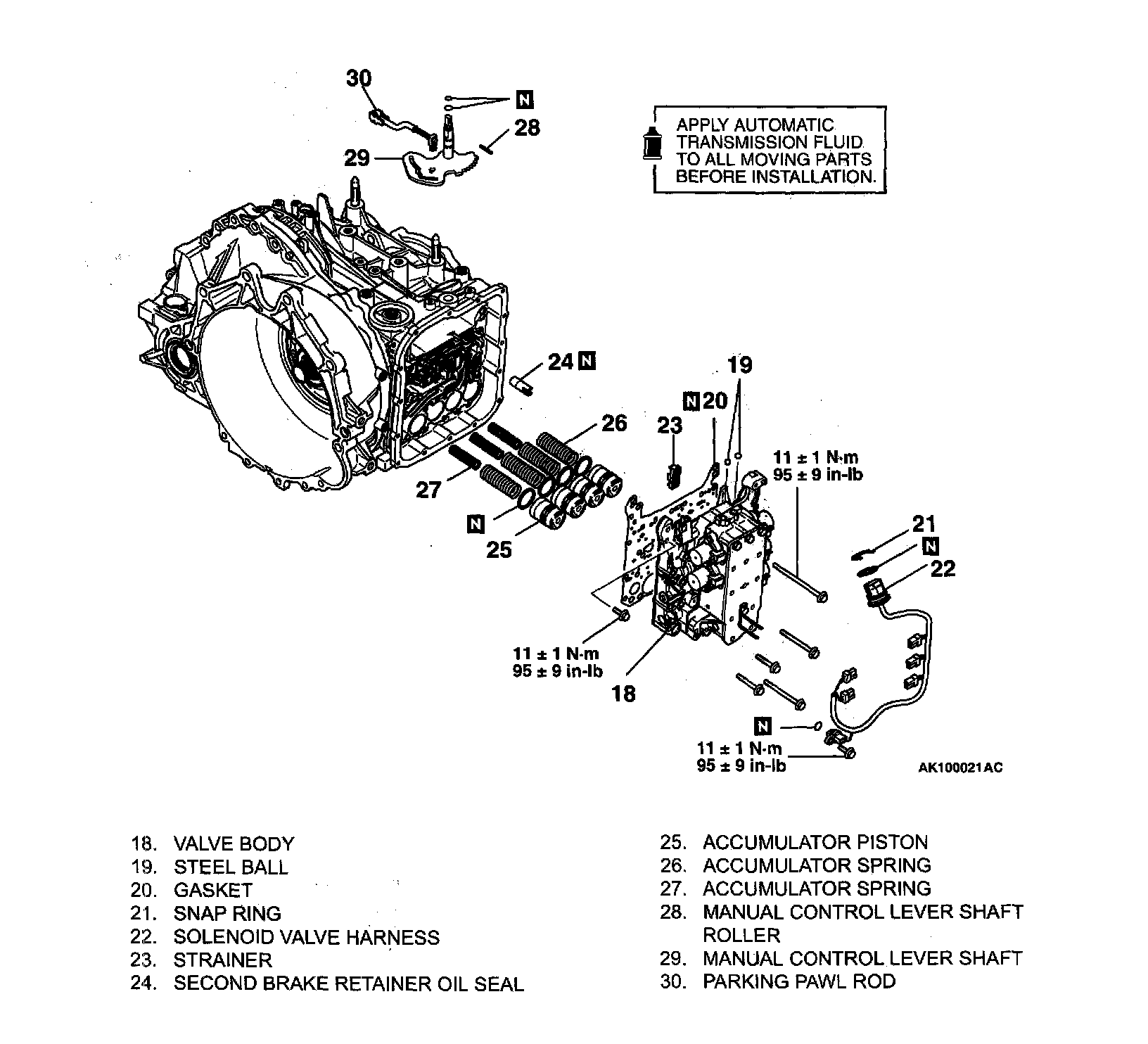

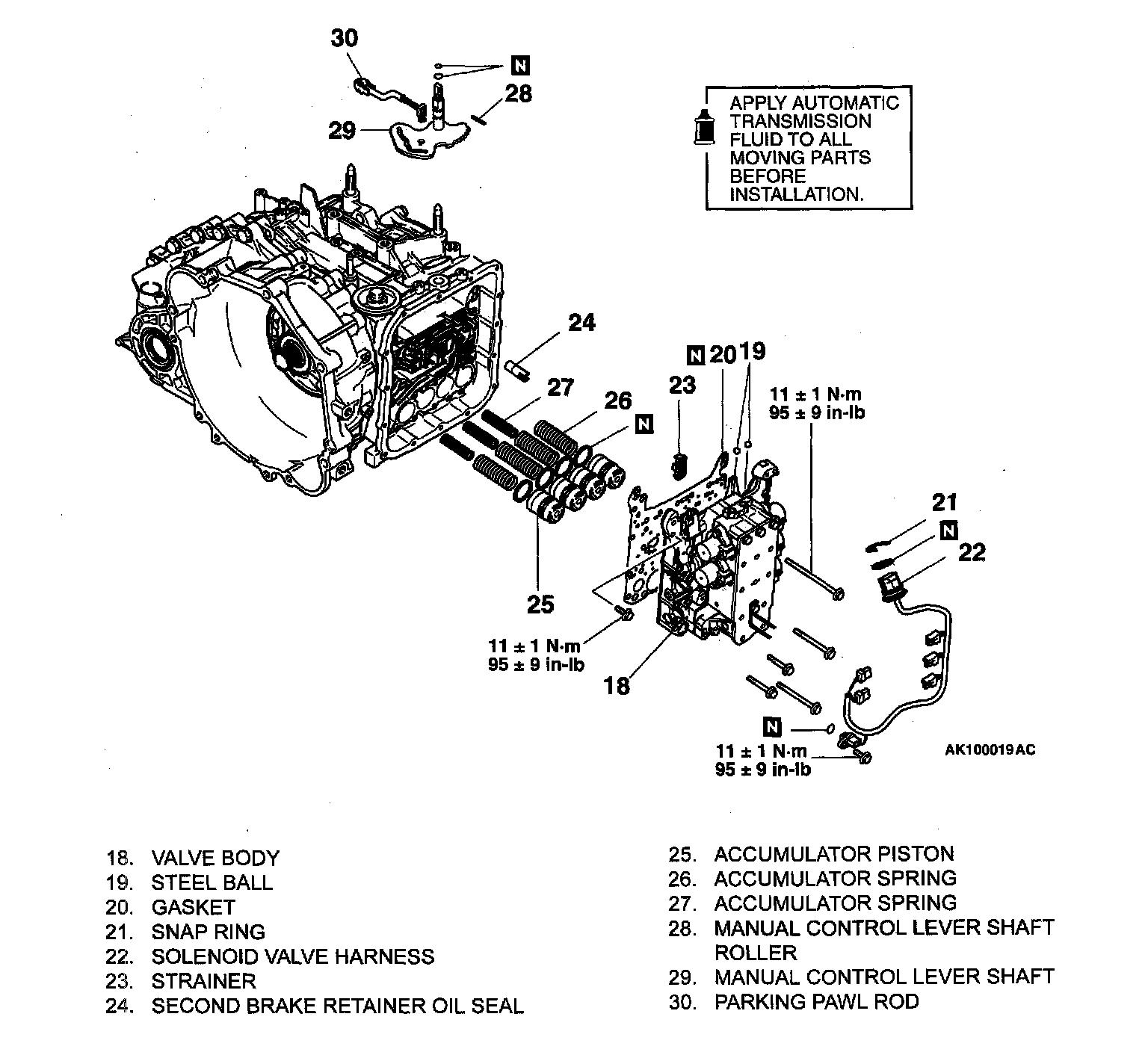

DISASSEMBLY
