Vehicles With Amplifier

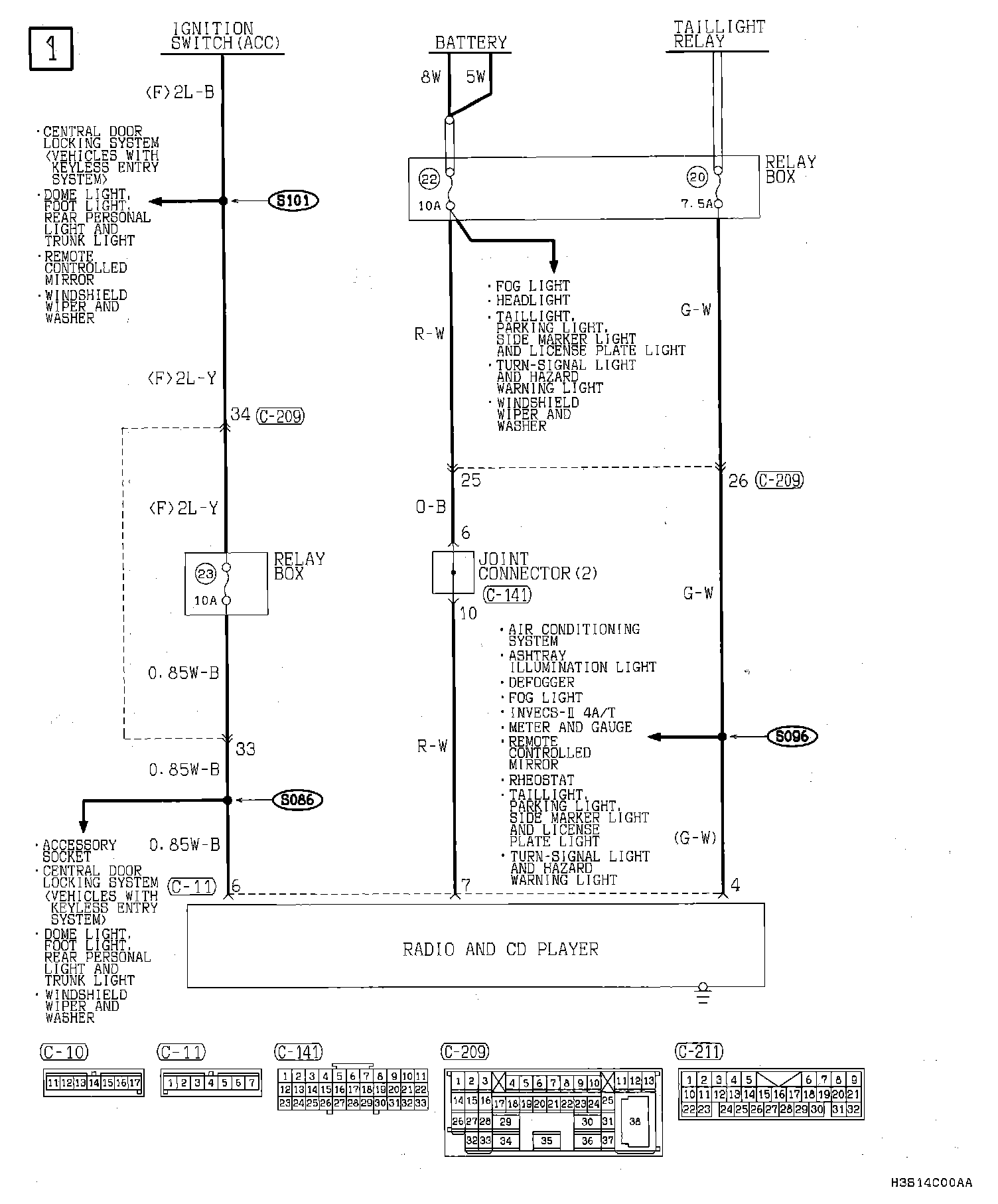

Audio System <Vehicles With Amplifier> Part 1:

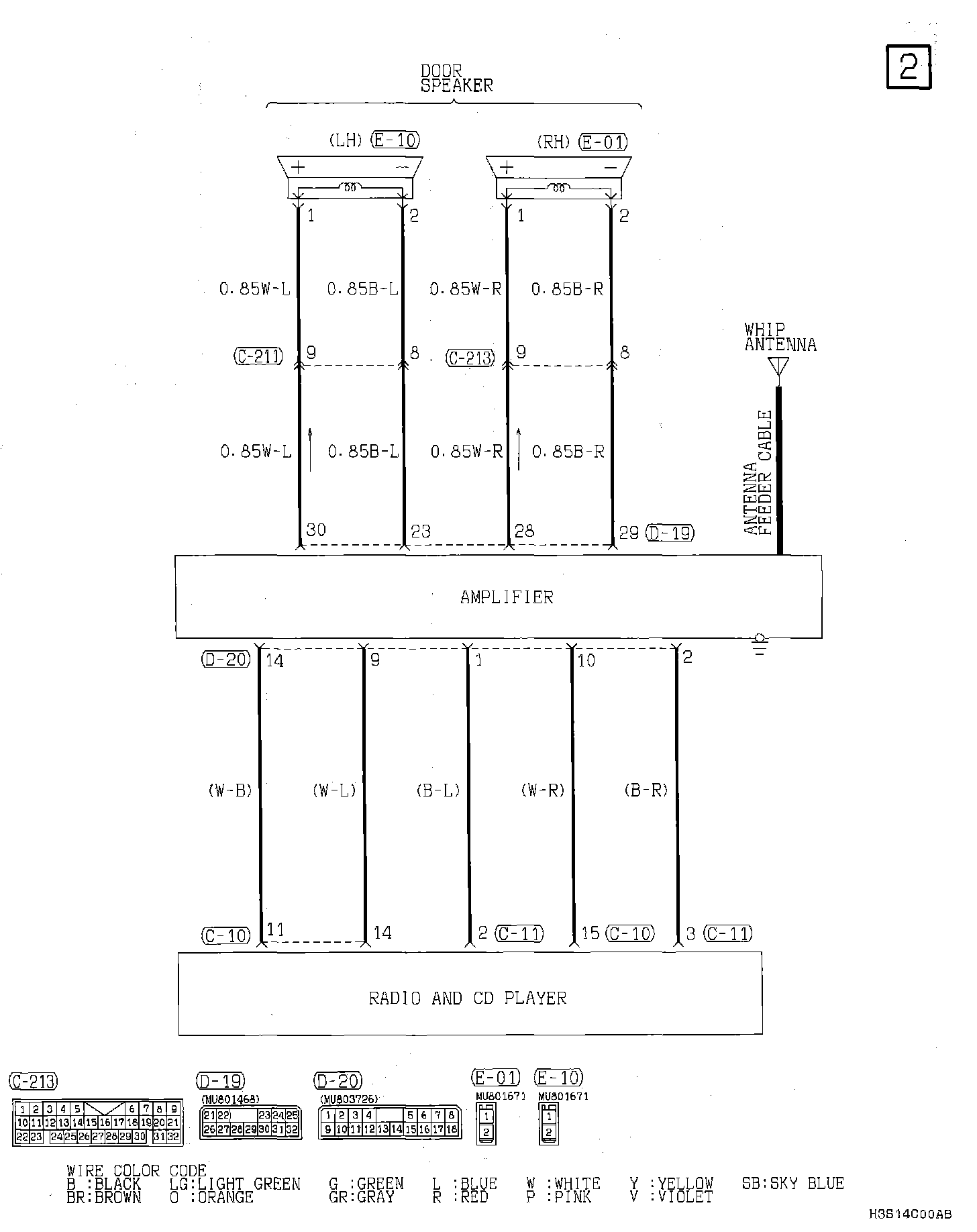

Audio System <Vehicles With Amplifier> Part 2:

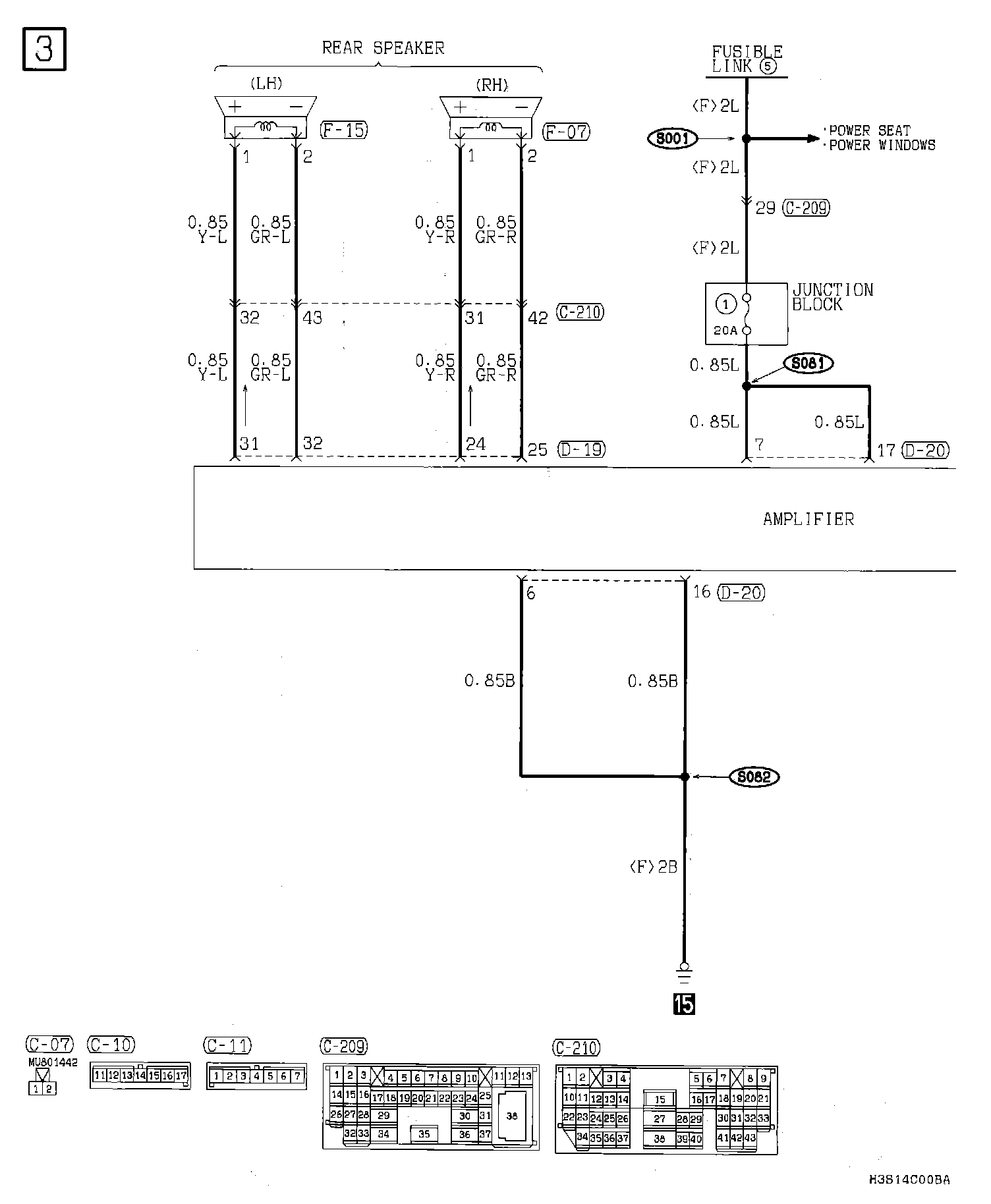

Audio System <Vehicles With Amplifier> Part 3:

Audio System <Vehicles With Amplifier> Part 4:

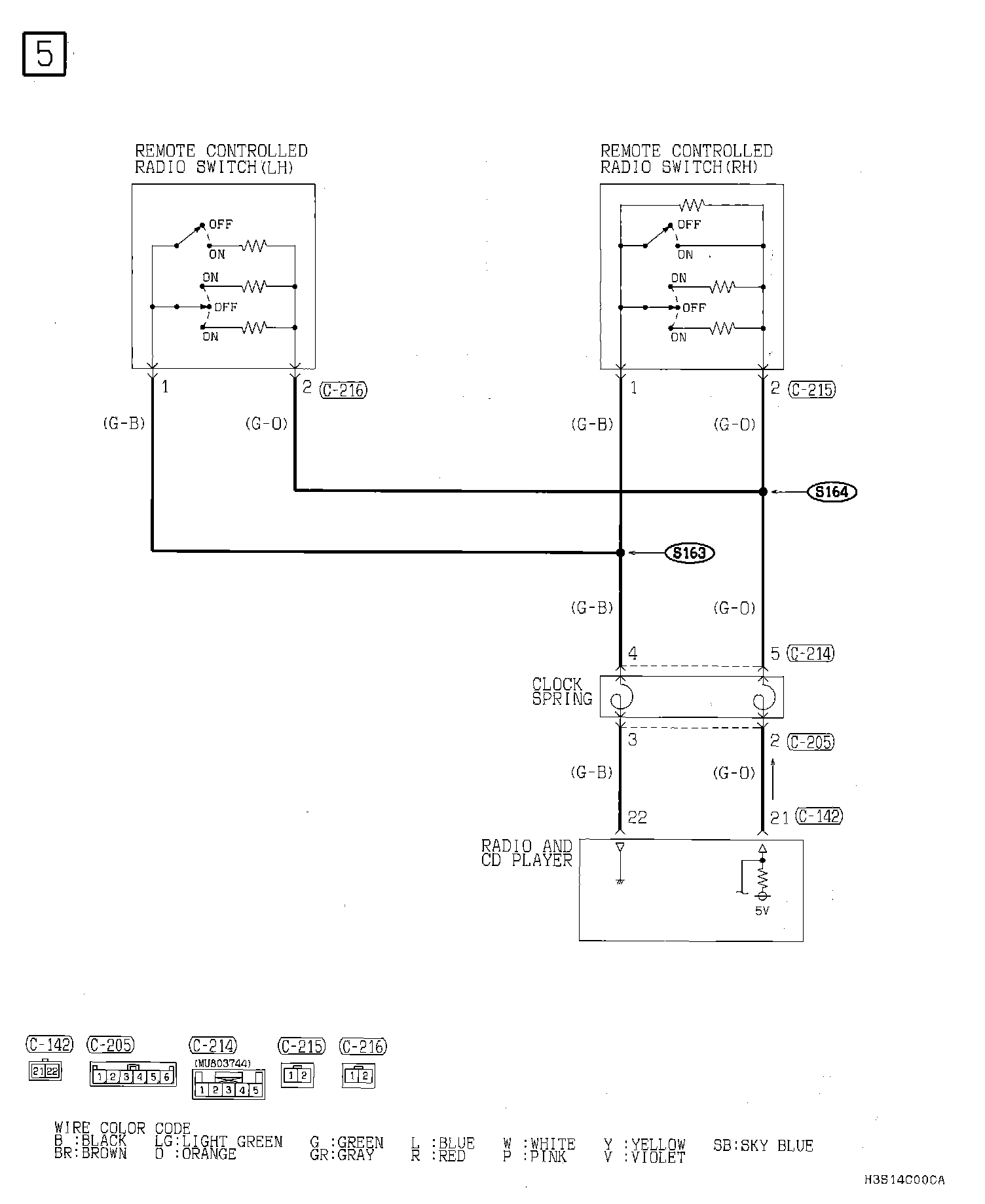

Audio System <Vehicles With Amplifier> Part 5:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
