System Diagram

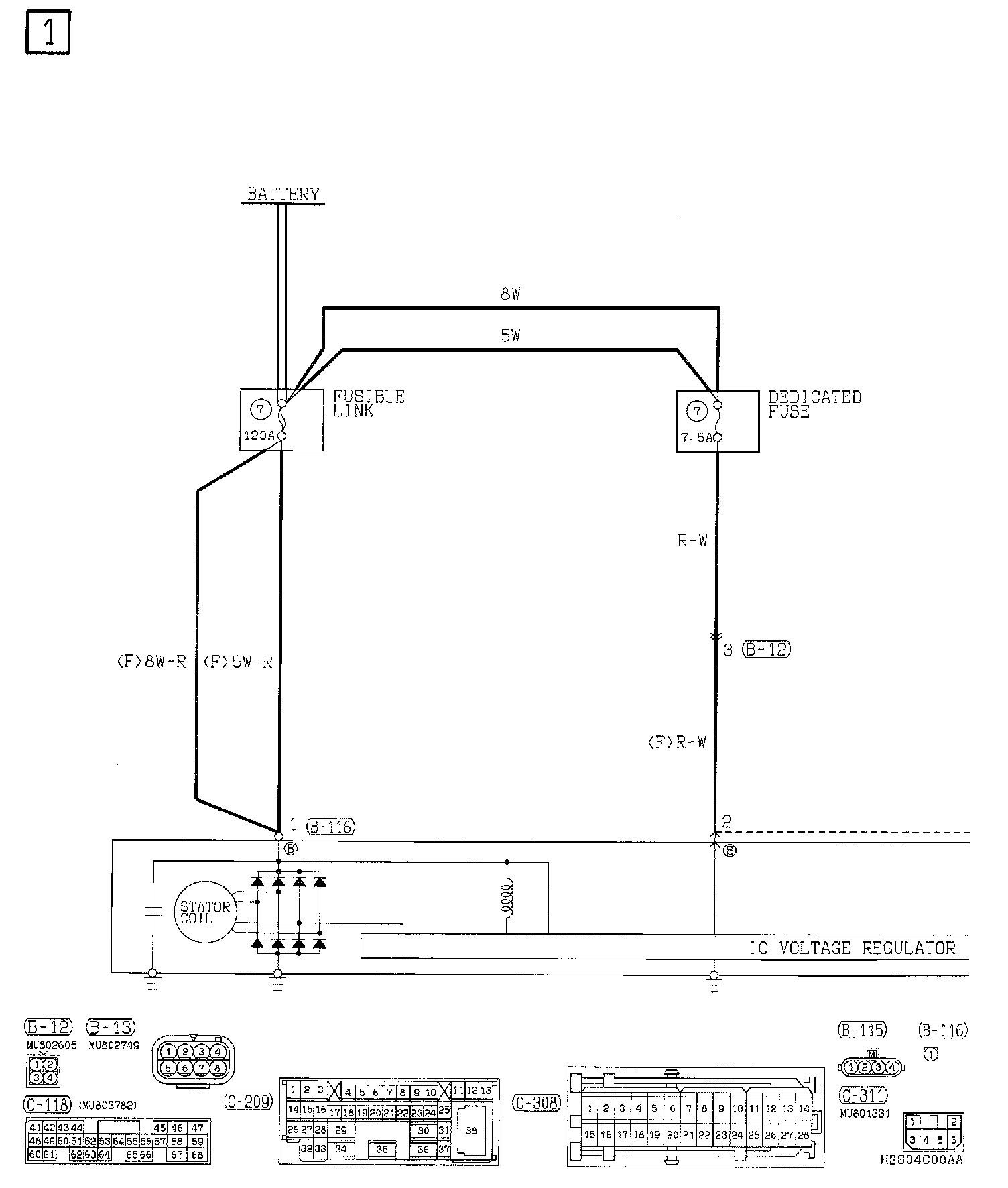

Charging System <M/T> Part 1:

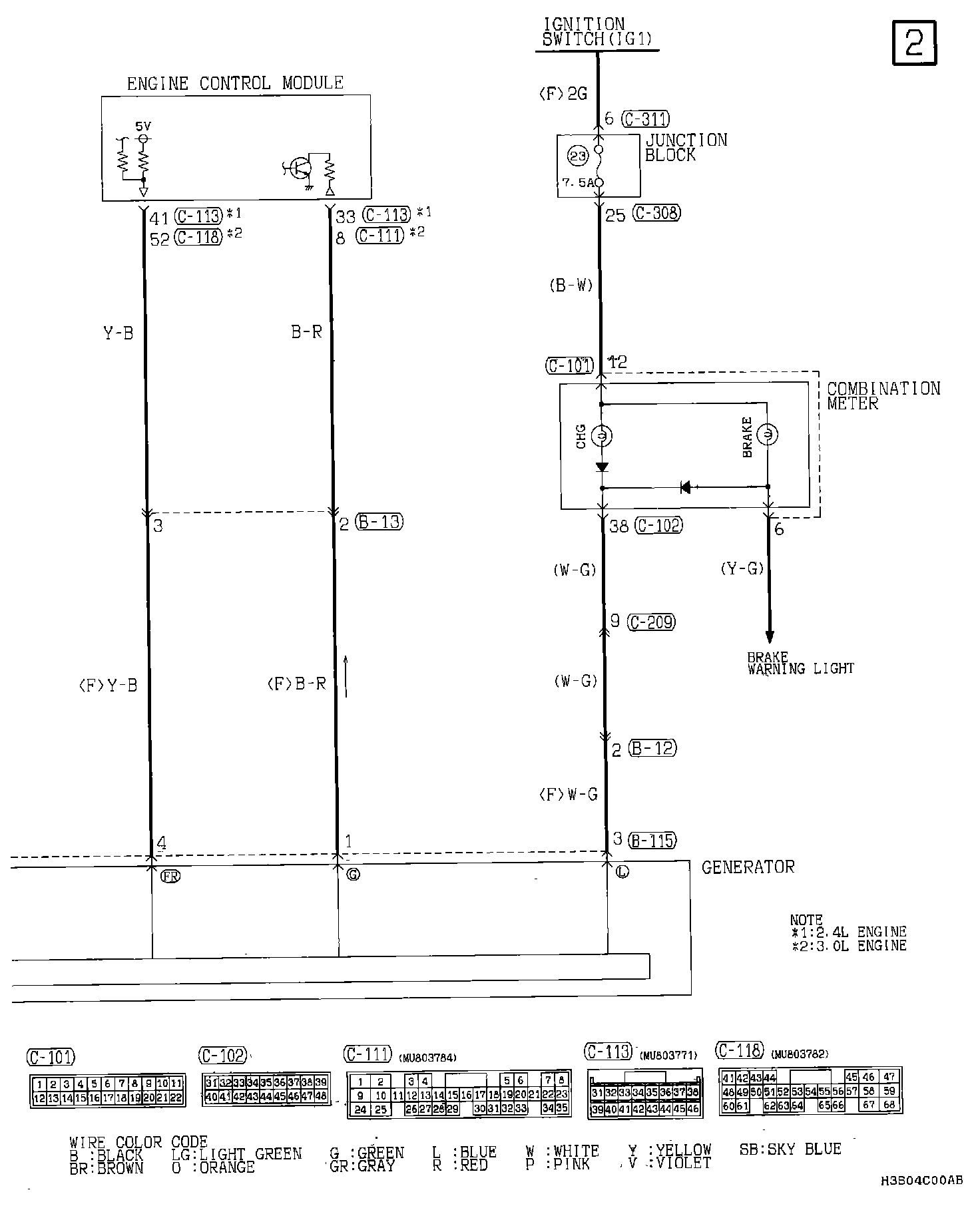

Charging System <M/T> Part 2:

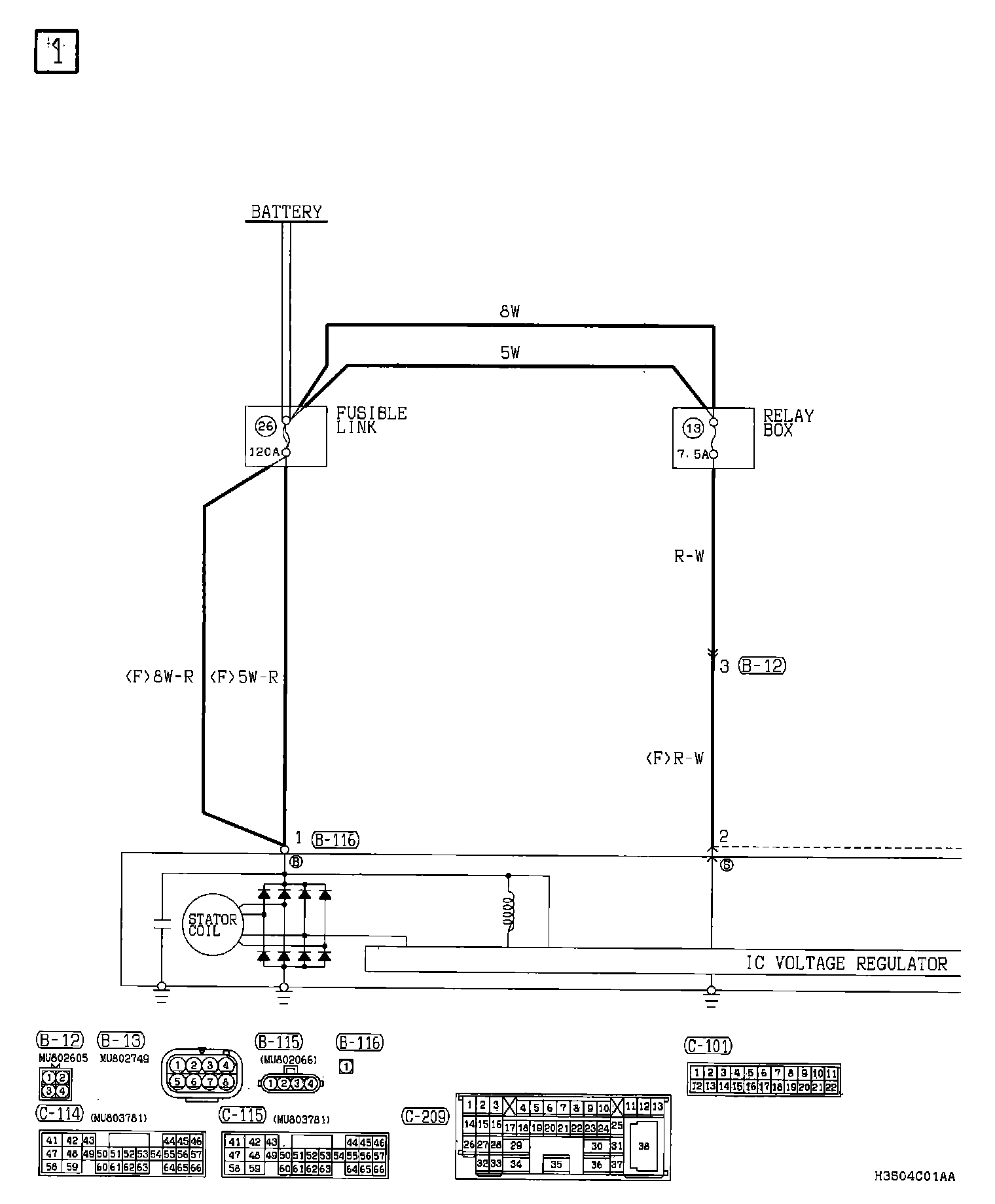

Charging System <A/T> Part 1:

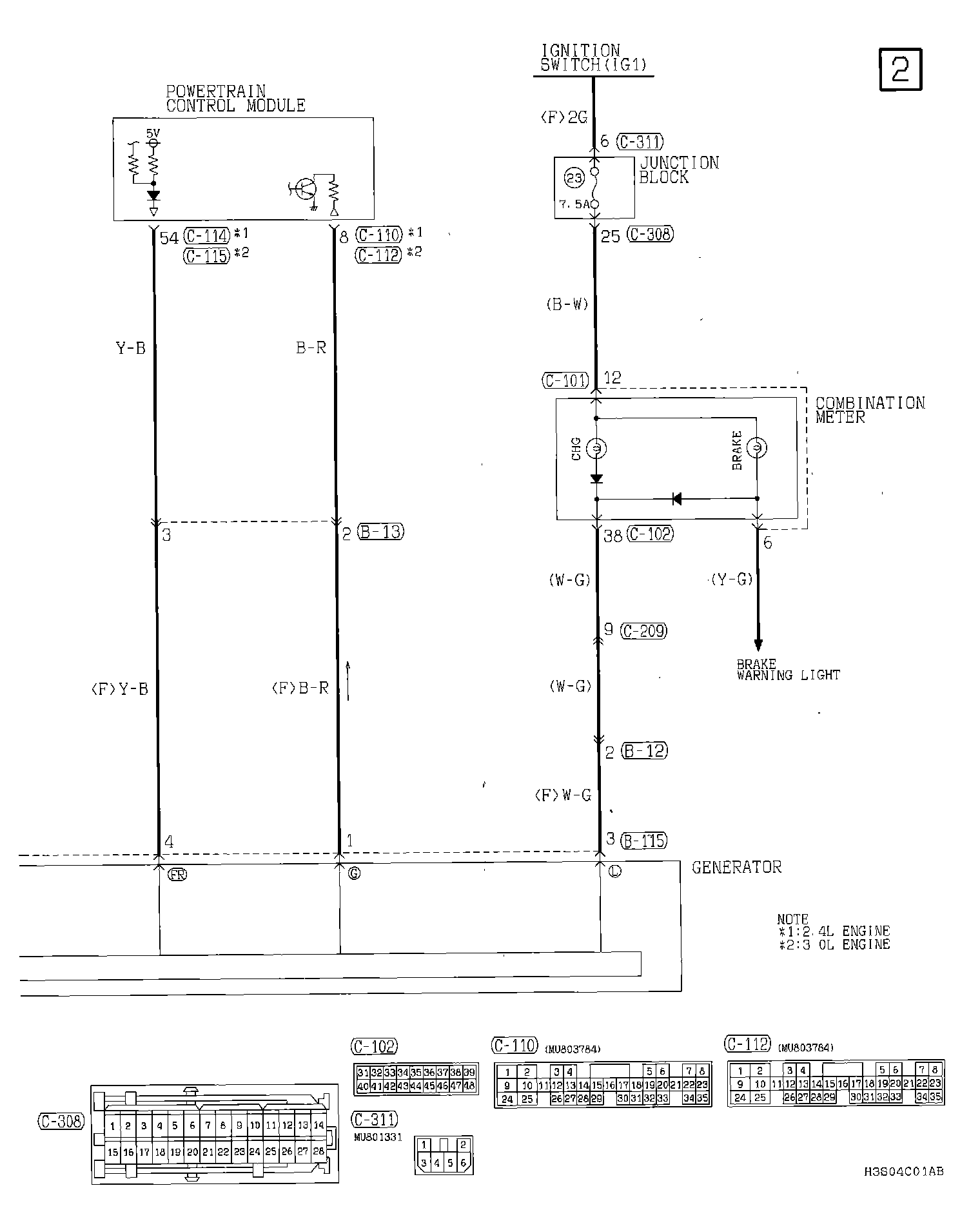

Charging System <A/T> Part 2:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
