Vehicles With TCL

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 1:

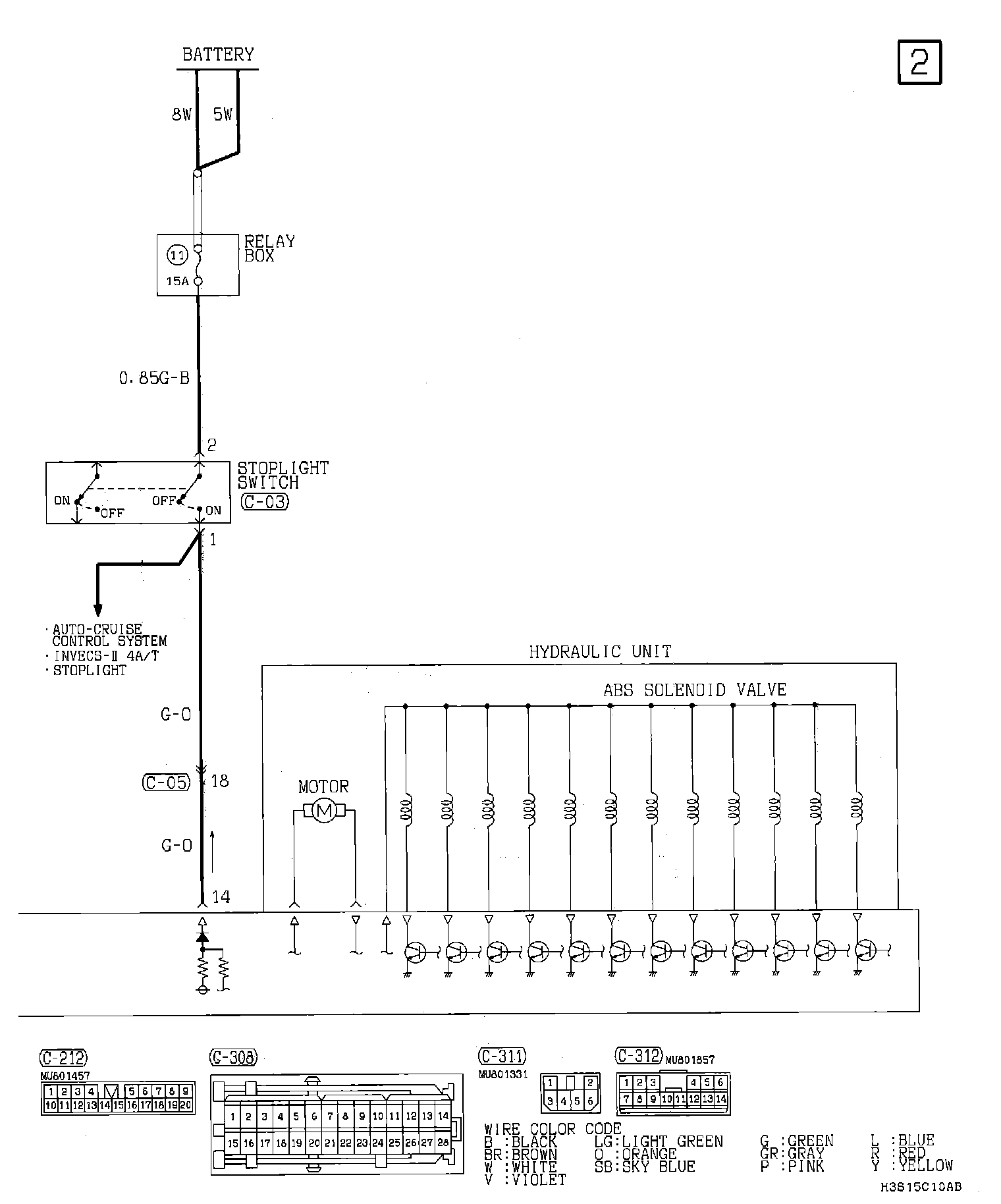

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 2:

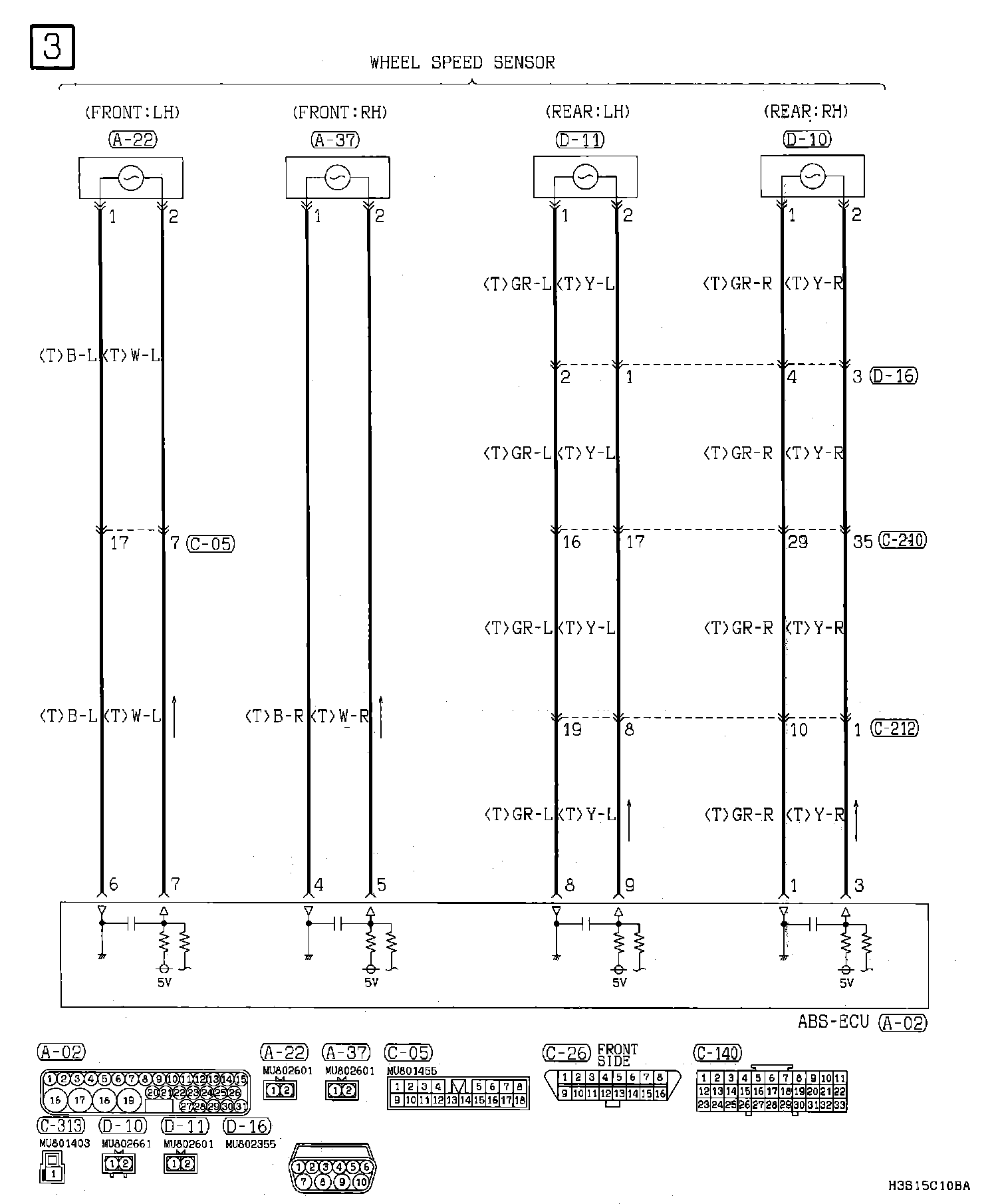

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 3:

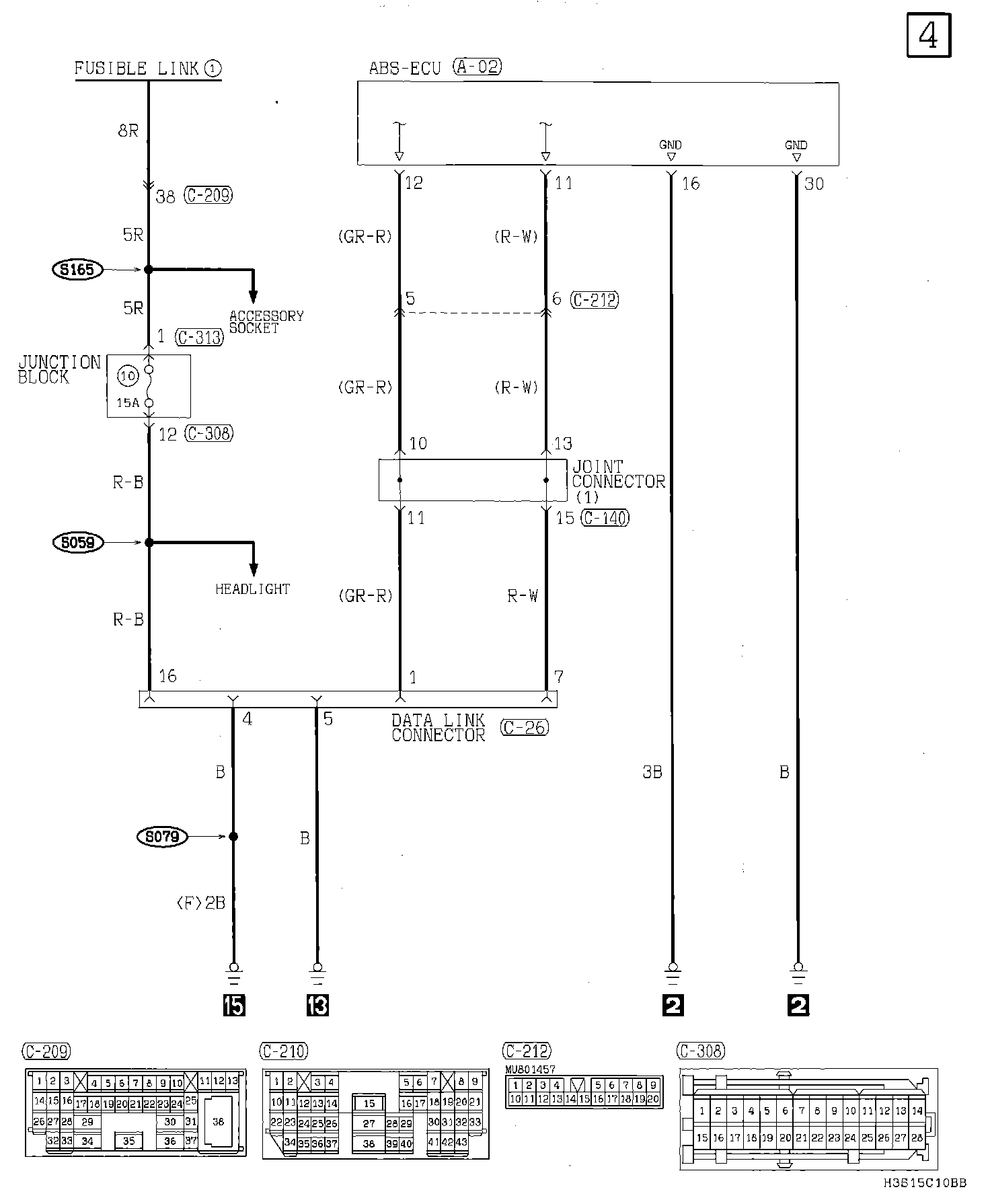

Anti-Lock Braking System(ABS) <Vehicles With TCL> Part 4:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
