Home >> Chrysler >> 2003 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Diagrams >> Connectors >> F Connector - Trunk

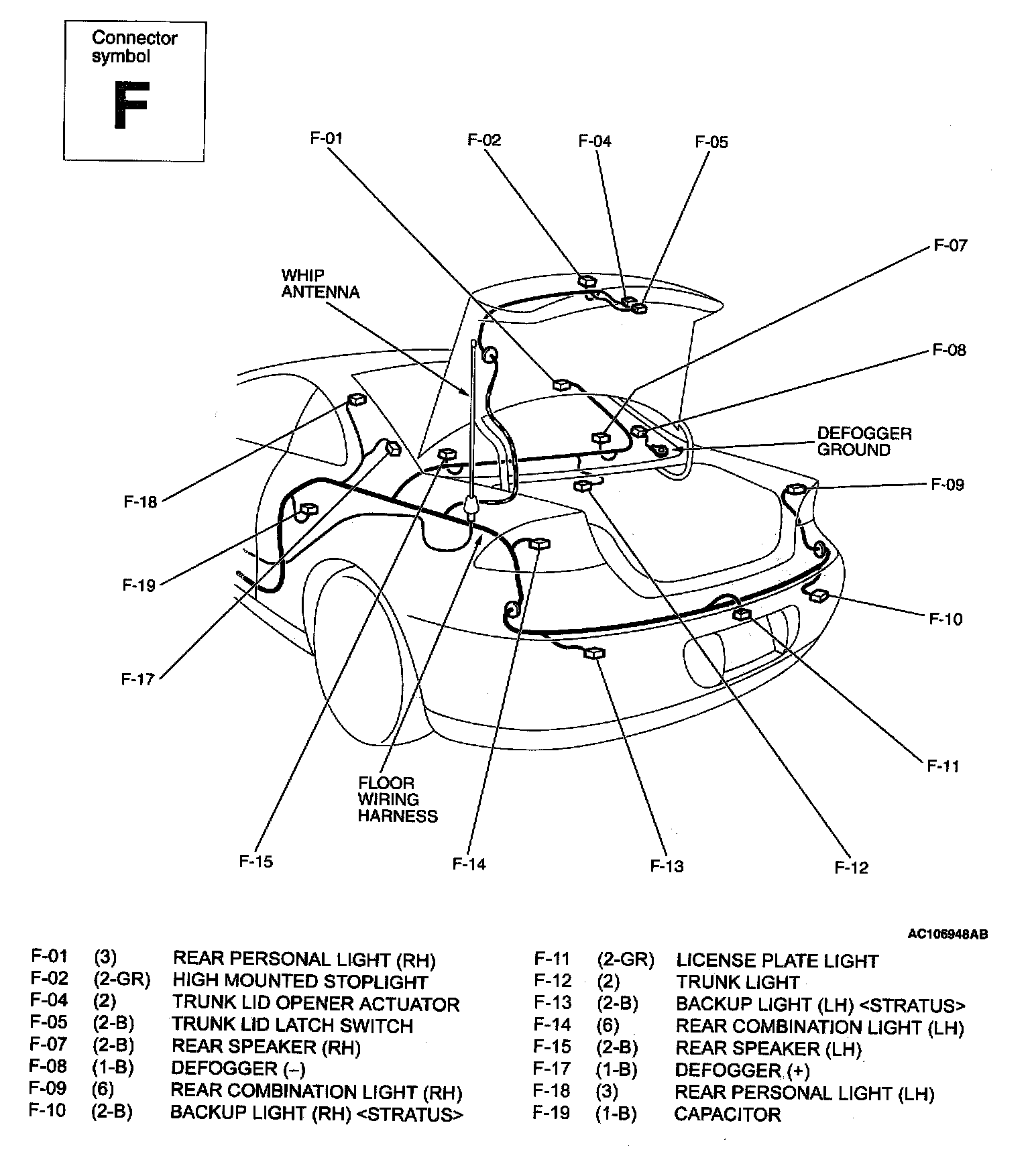

F Connector - Trunk

Trunk - F Connector [ 01(3) Thru 19(1-B) ]:
