C Connector - Dash Panel

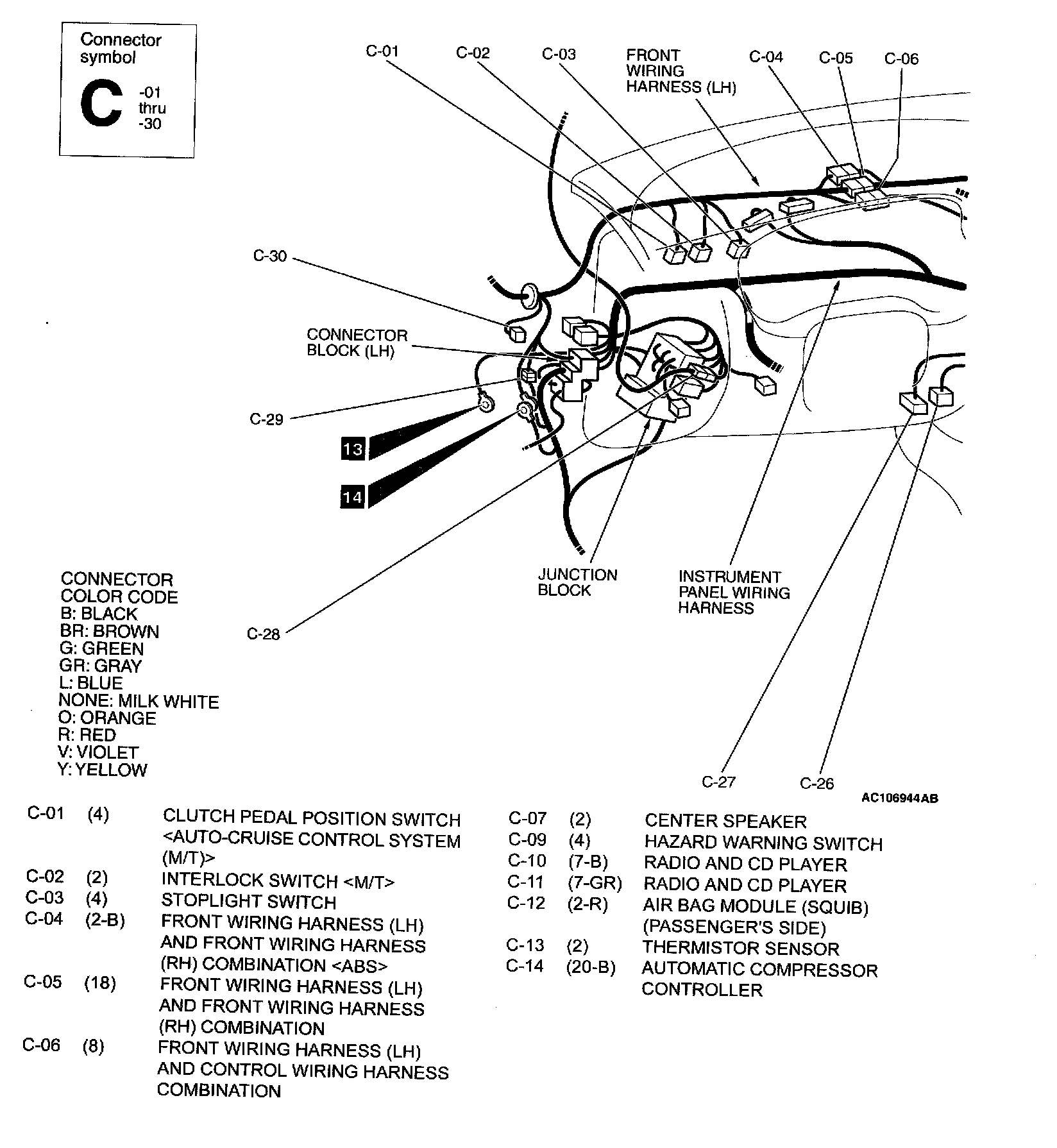

Dash Panel - C Connector [ 01(4) Thru 14(20-B) ]:

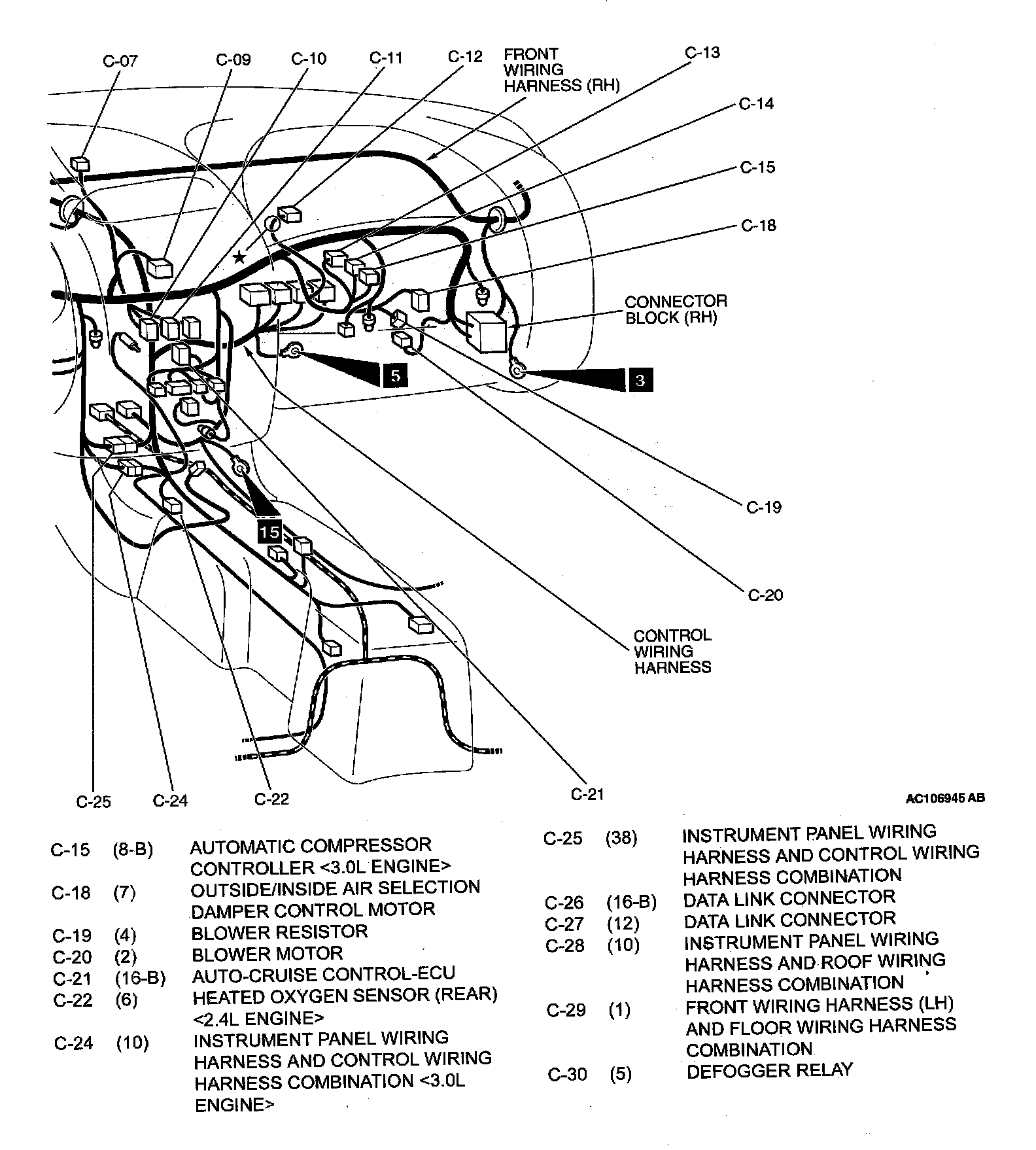

Dash Panel - C Connector [ 15(8-B) Thru 30(5) ]:

Dash Panel - C Connector [ 101(22) Thru 120(22-G) ]:

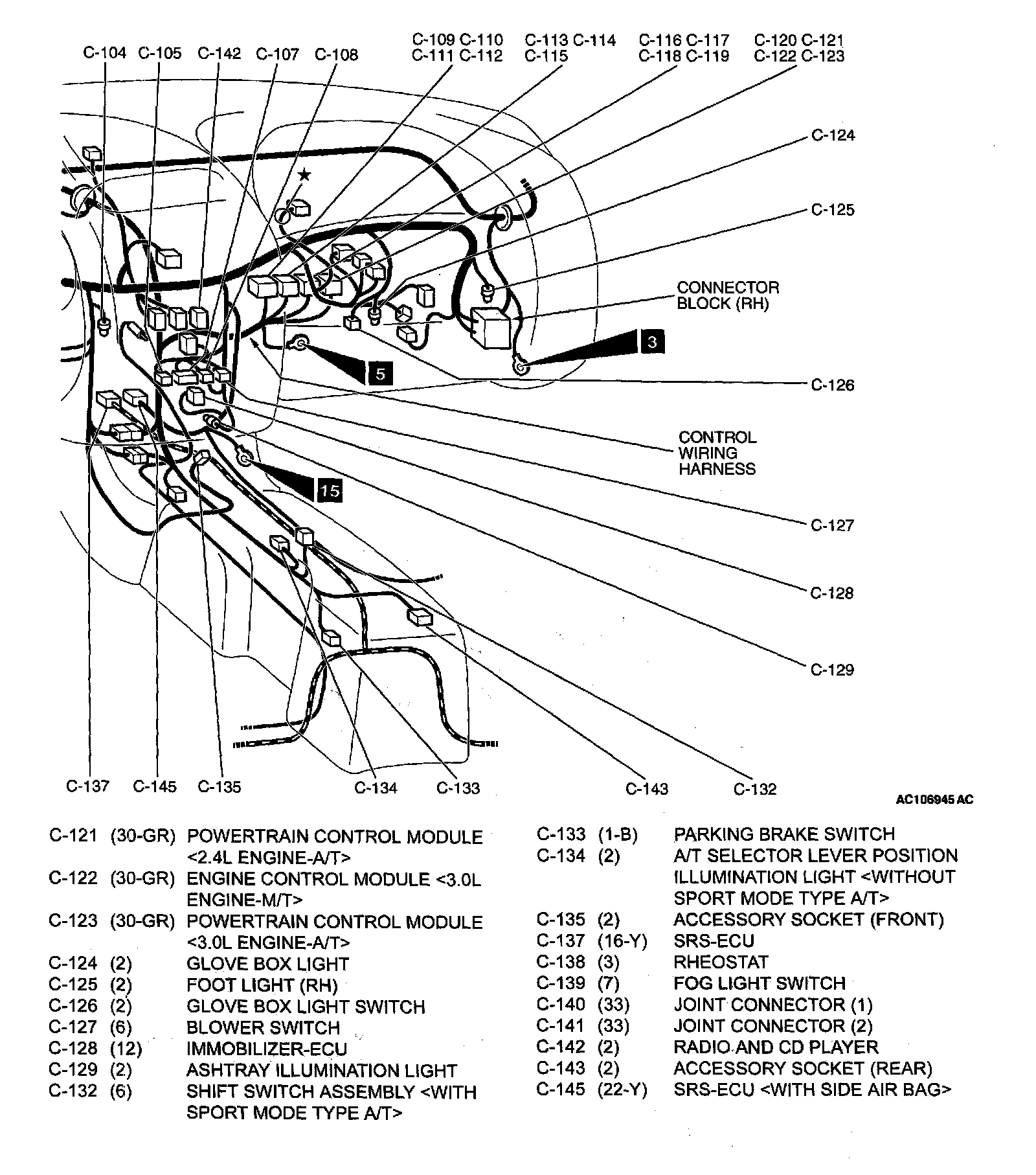

Dash Panel - C Connector [ 121(30-GR) Thru 145(22-Y) ]:

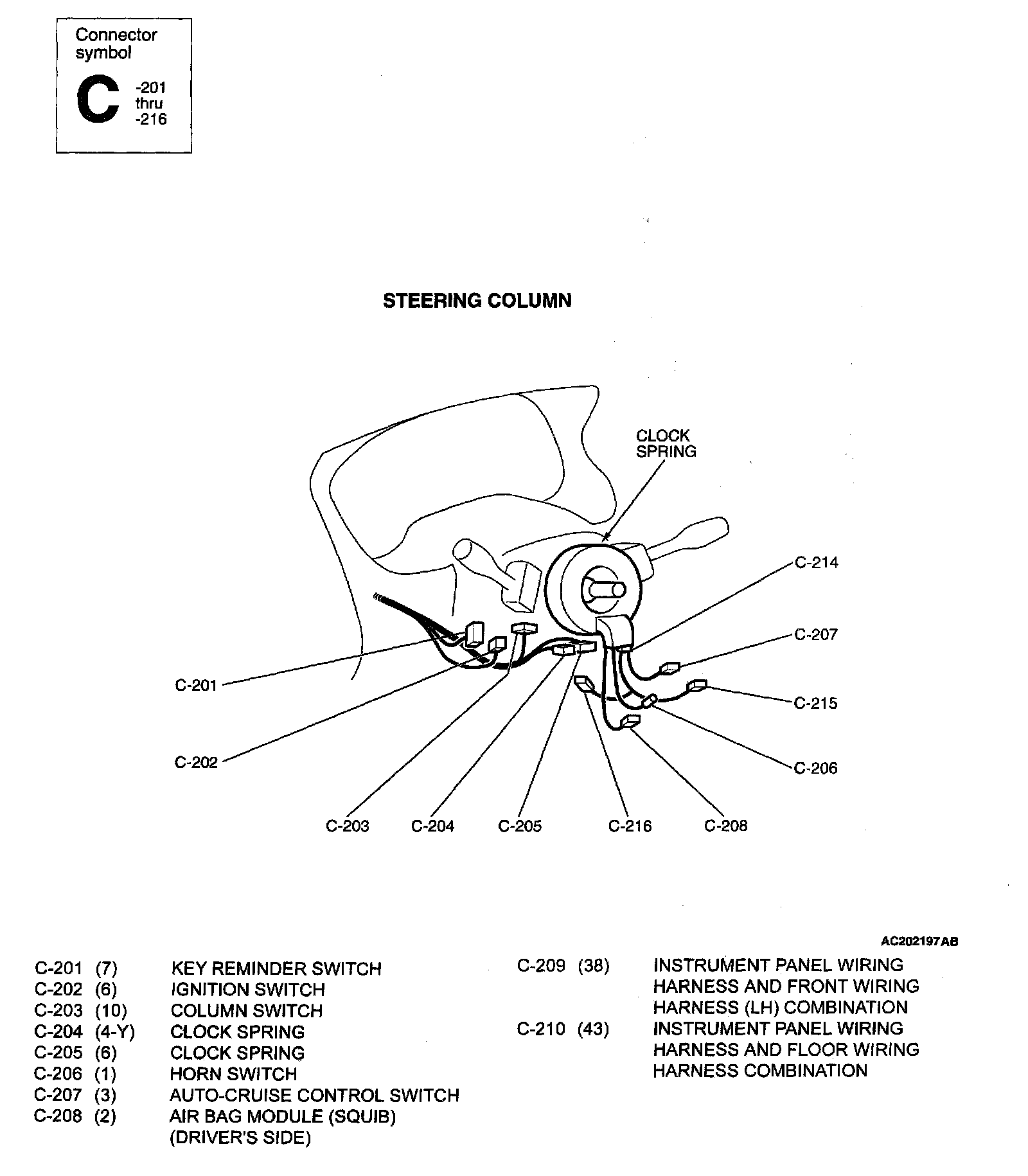

Dash Panel - C Connector [ 201(7) Thru 210(43) ]:

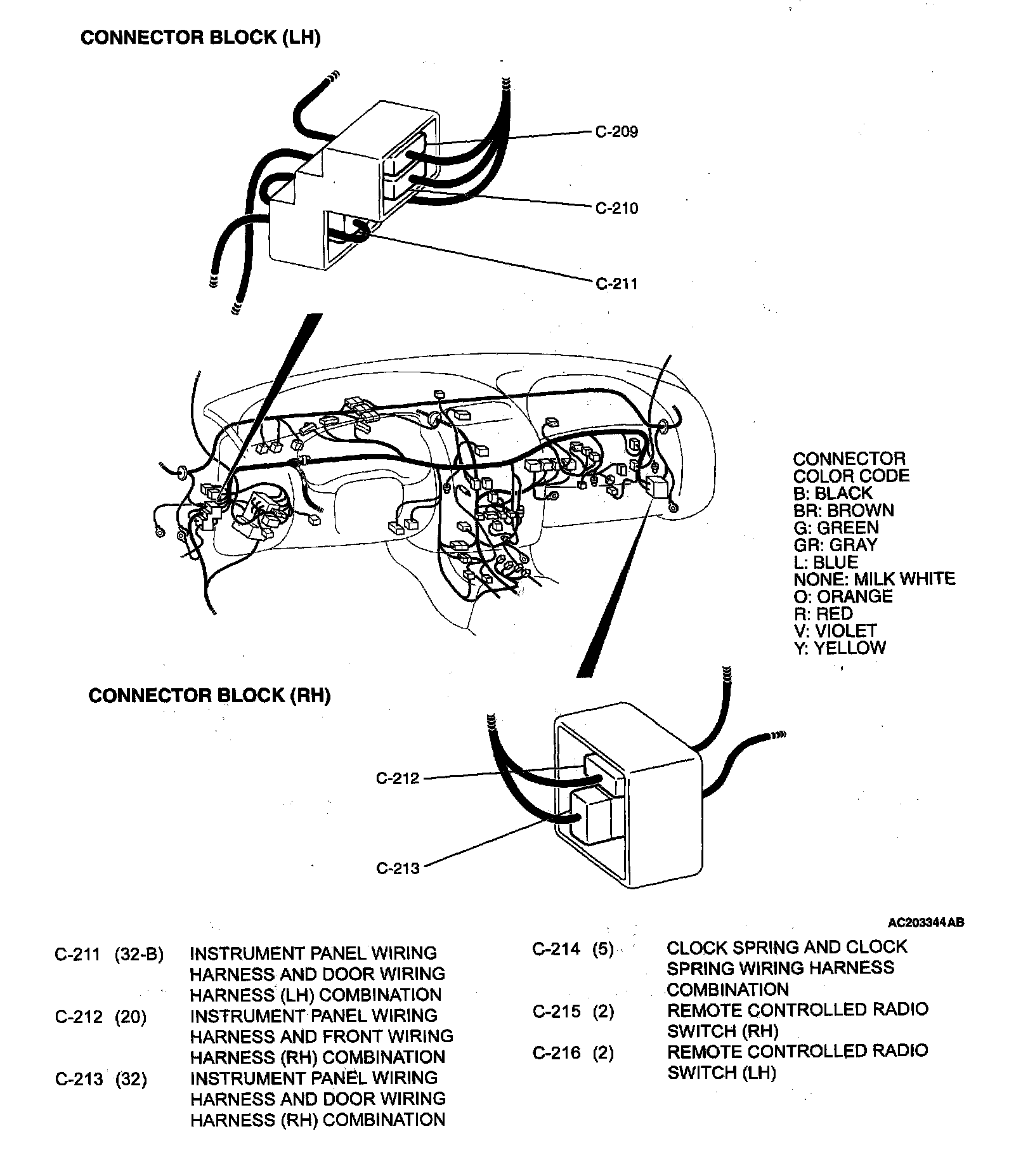

Dash Panel - C Connector [ 211(32-B) Thru 216(2) ]:

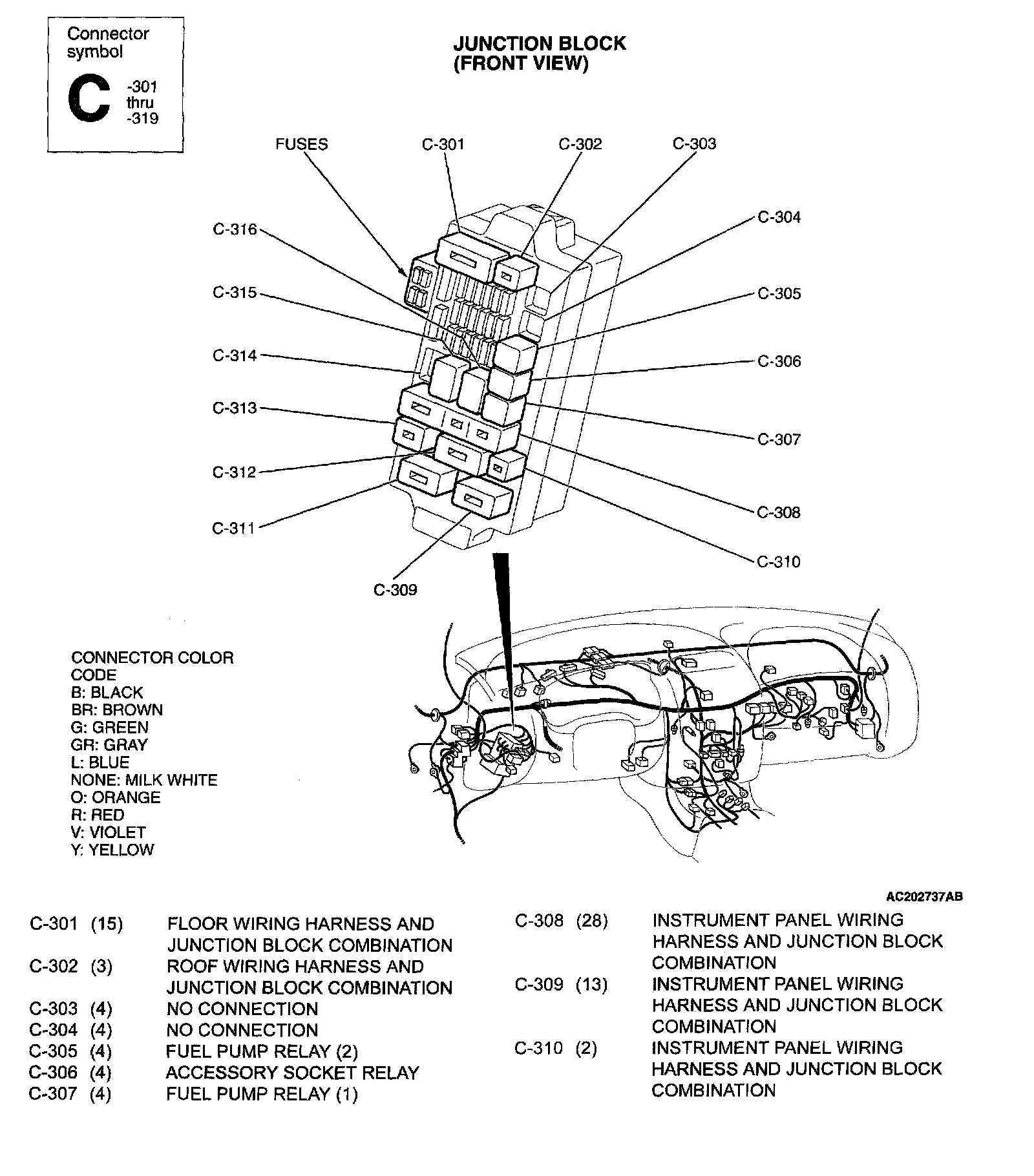

Dash Panel - C Connector [ 301(15) Thru 310(2) ]:

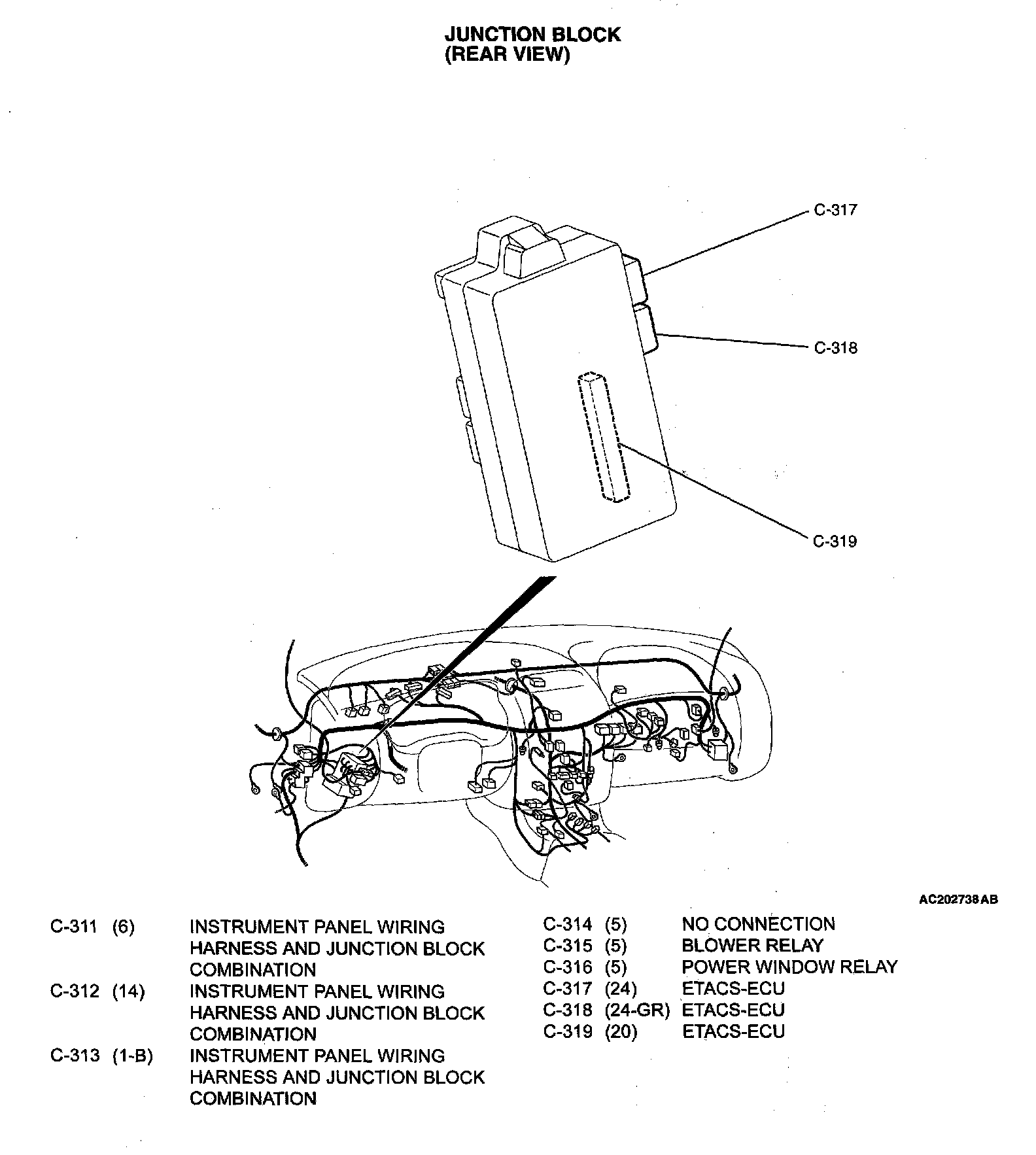

Dash Panel - C Connector [ 311(6) Thru 319(20) ]:
