B Connector - Engine and Transaxle

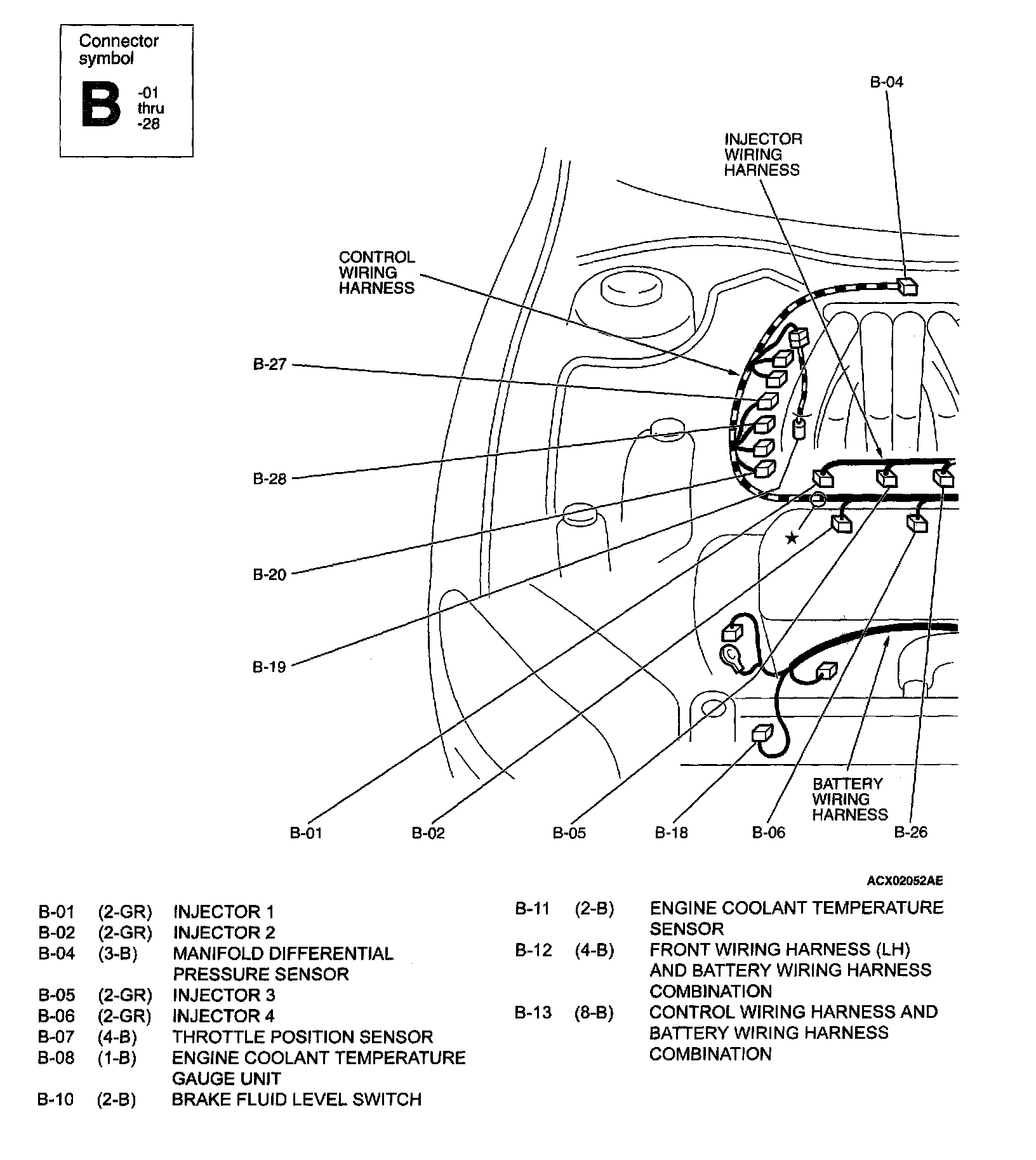

Engine And Transaxle <3.0L Engine> - B Connector[ 01(2-GR) Thru 13(8-B) ]:

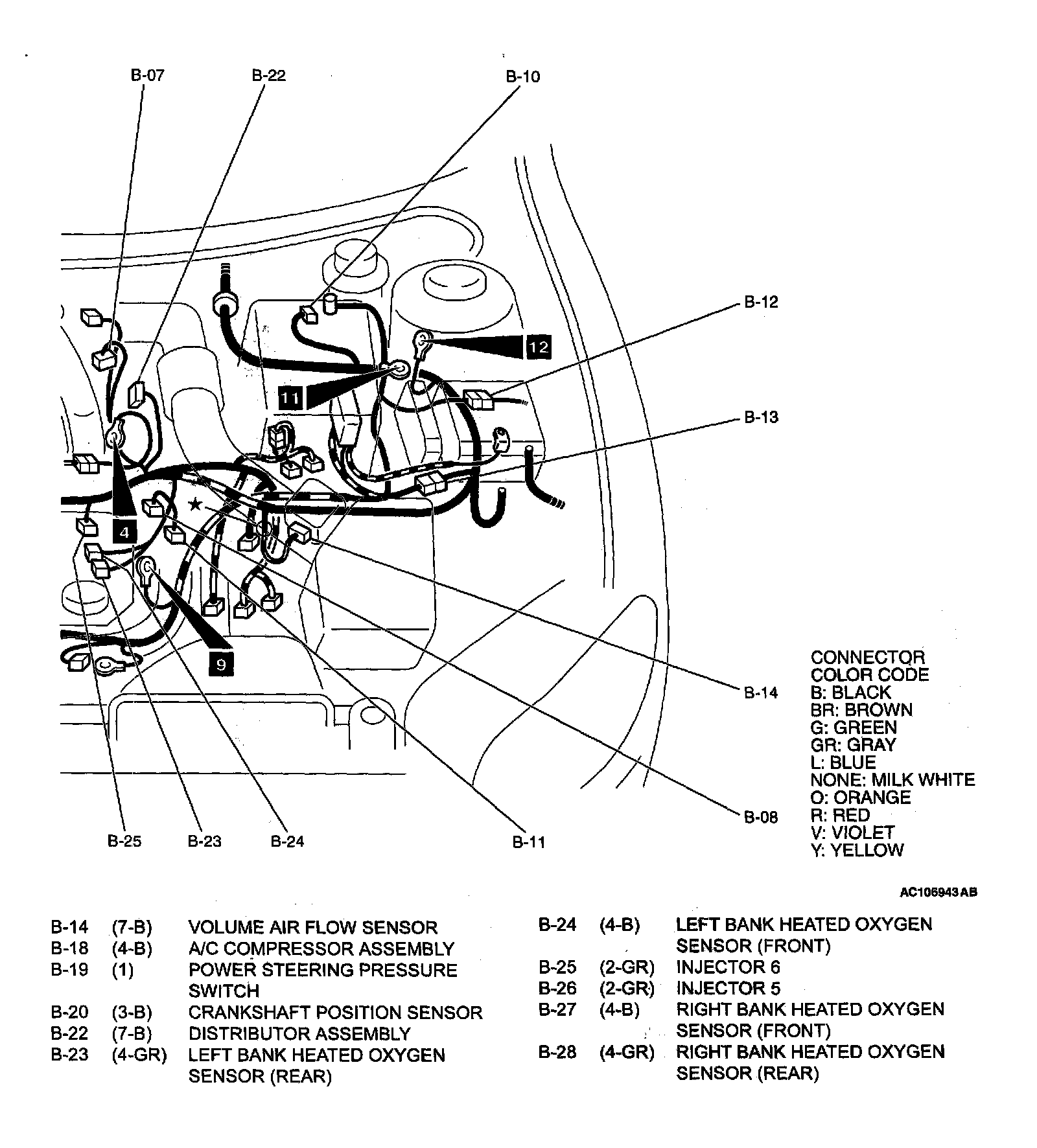

Engine And Transaxle <3.0L Engine> - B Connector[ 14(7-B) Thru 28(4-GR) ]:

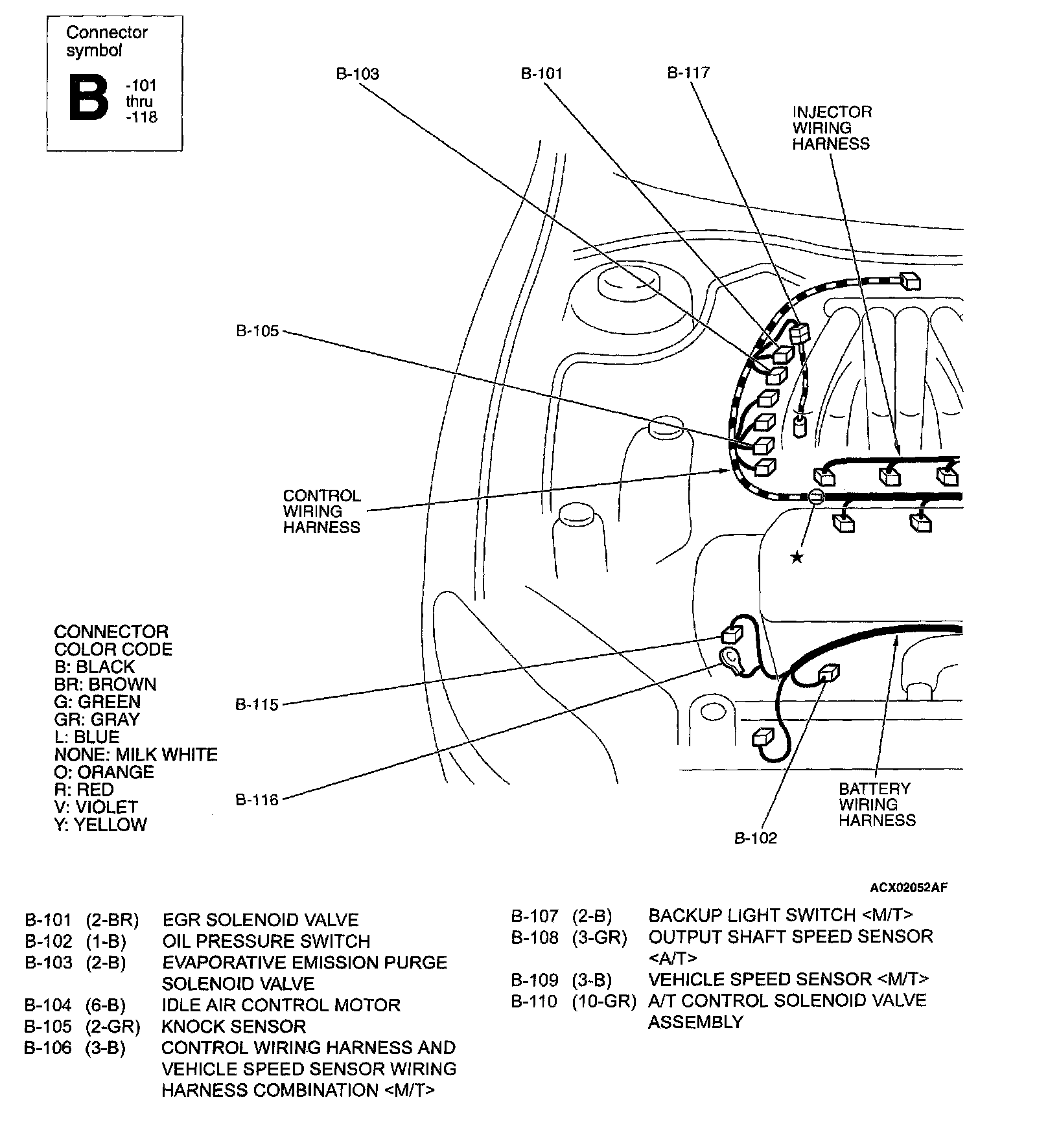

Engine And Transaxle <3.0L Engine> - B Connector[ 101(2-BR) Thru 110(10-GR) ]:

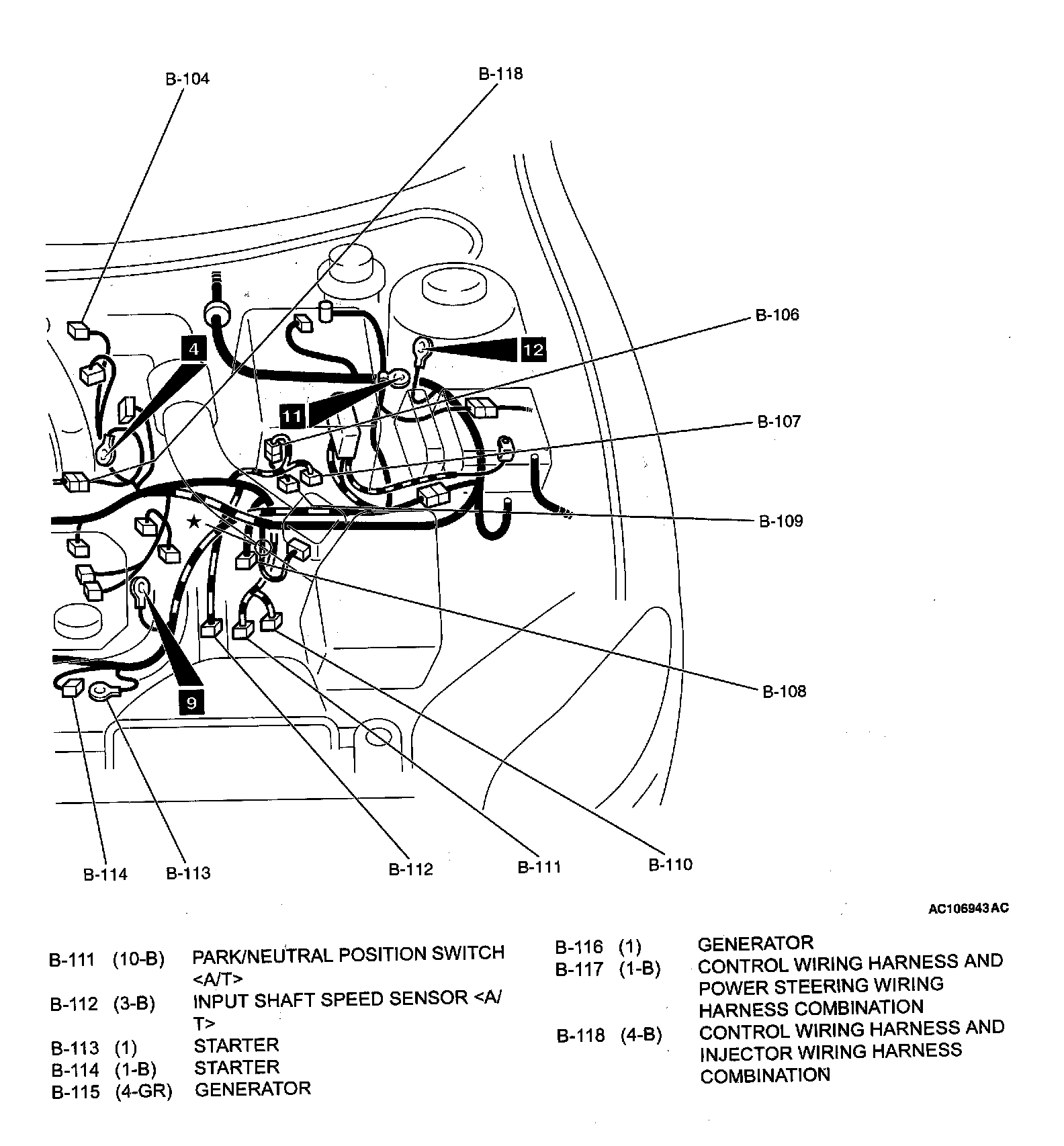

Engine And Transaxle <3.0L Engine> - B Connector[ 111(10-B) Thru 118(4-B) ]:
