A Connector - Engine Compartment

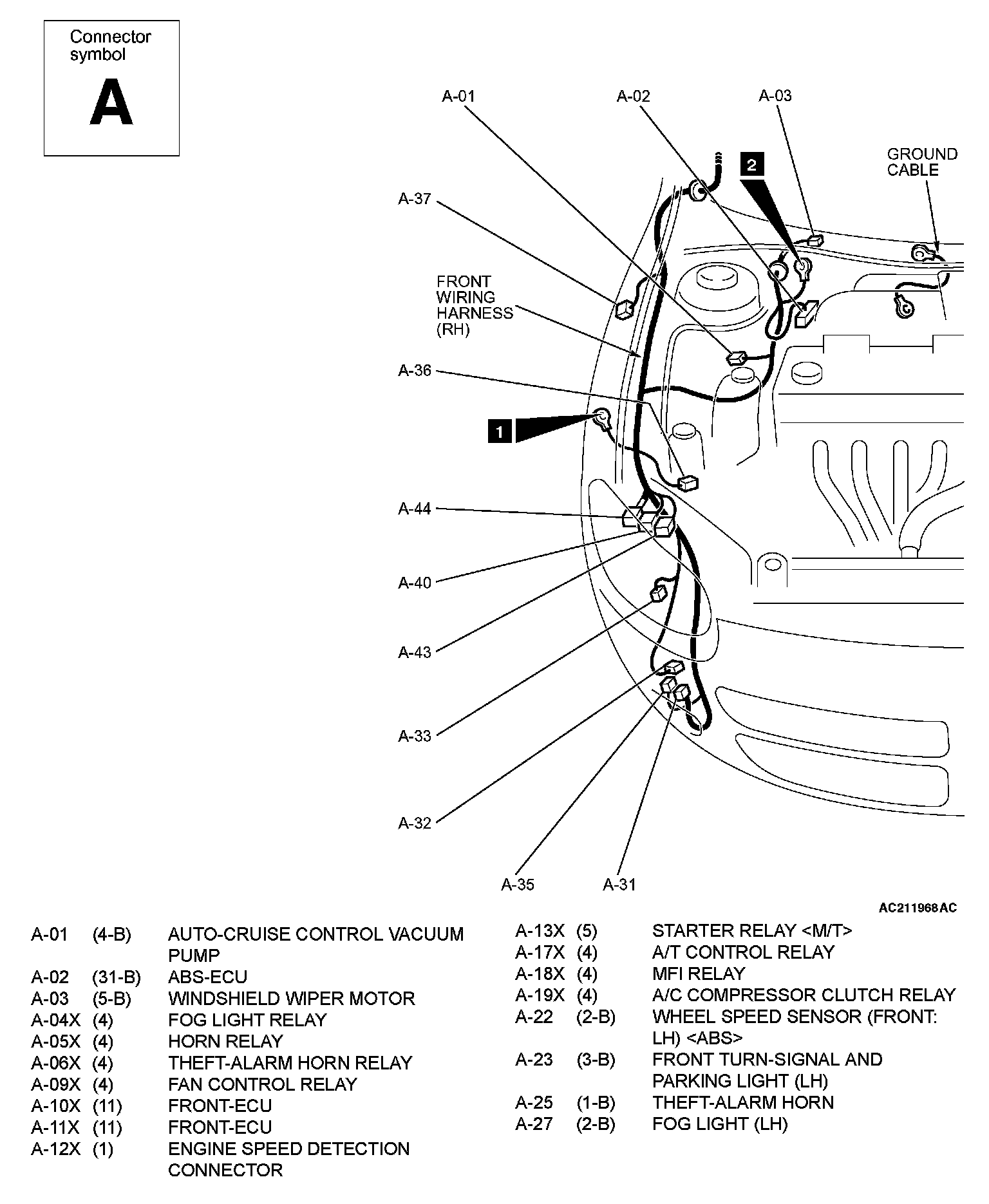

Engine Compartment <Sebring> - A Connector [ 01(4-B) Thru 27(2-B) ]:

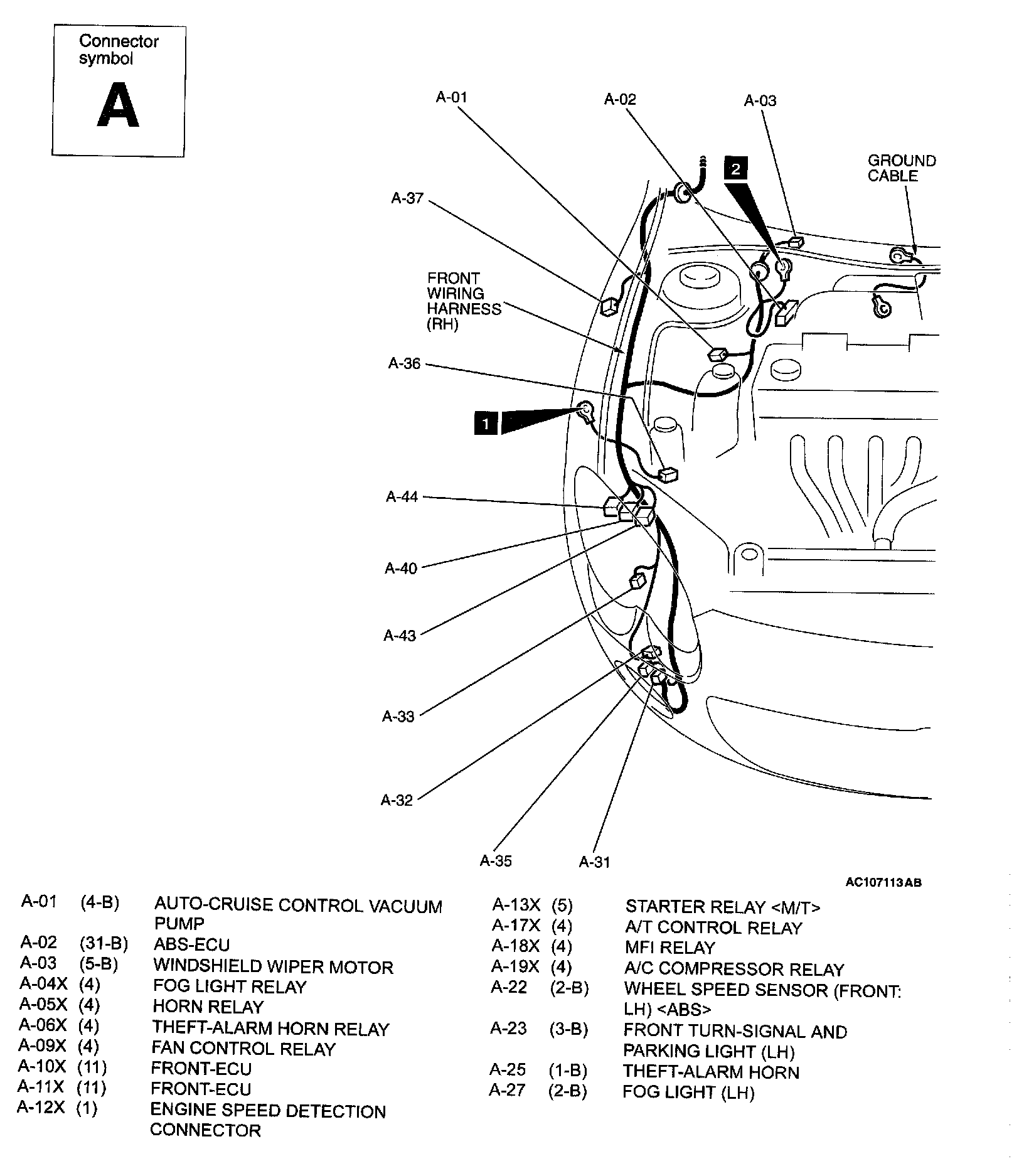

Engine Compartment <Sebring> - A Connector [ 01(4-B) Thru 27(2-B) ]:

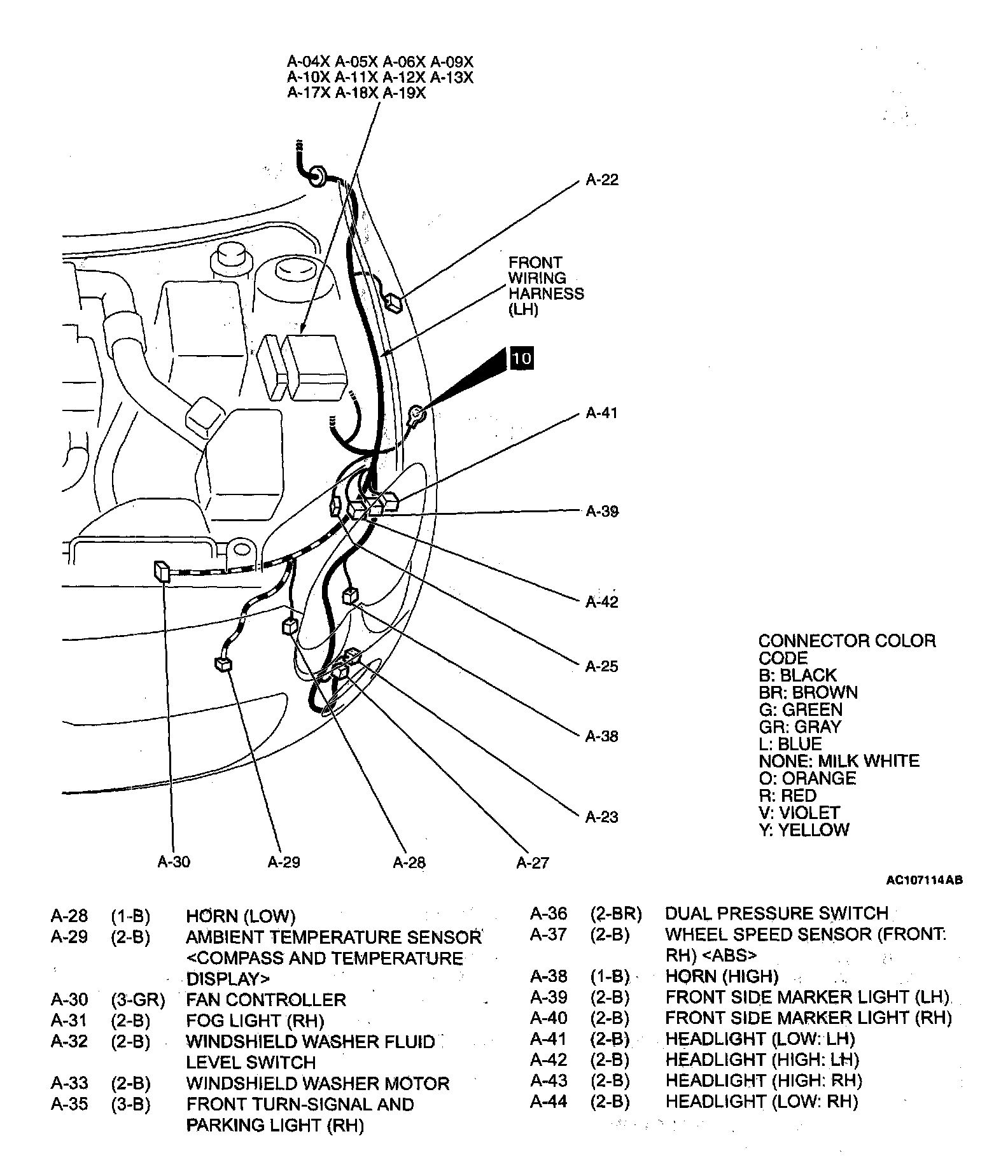

Engine Compartment <Sebring> - A Connector [ 28(1-B) Thru 44(2-B) ]:
