Reading and Clearing Diagnostic Trouble Codes
Erasing Diagnostic Trouble CodesThe diagnostic trouble codes can be erased by the following procedure.
NOTE: The diagnostic trouble code will not be erased even if the negative battery terminal is disconnected.
Using scan tool MB991502
Required Special Tool:
- MB991502: Scan Tool (MUT-II)
CAUTION : To prevent damage to scan tool MB991 502, always turn the ignition switch to the LOCK (OFF) position before connecting or disconnecting scan tool MB991502.

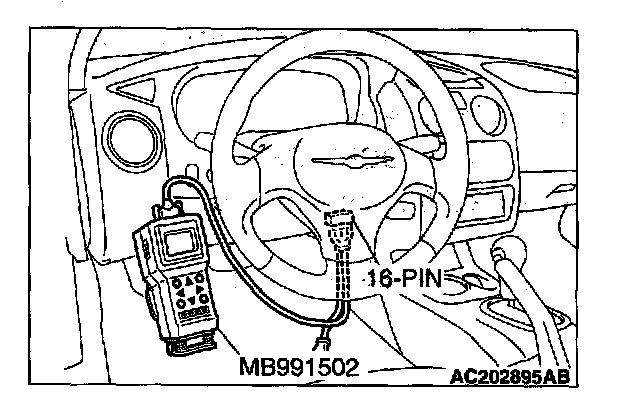

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the ON position.
3. Use scan tool MB991502 to check for auto-cruise control system diagnostic trouble codes.
4. Turn the ignition switch to the LOCK (OFF) position.
5. Disconnect scan tool MB991502.
With out using scan tool MB991502

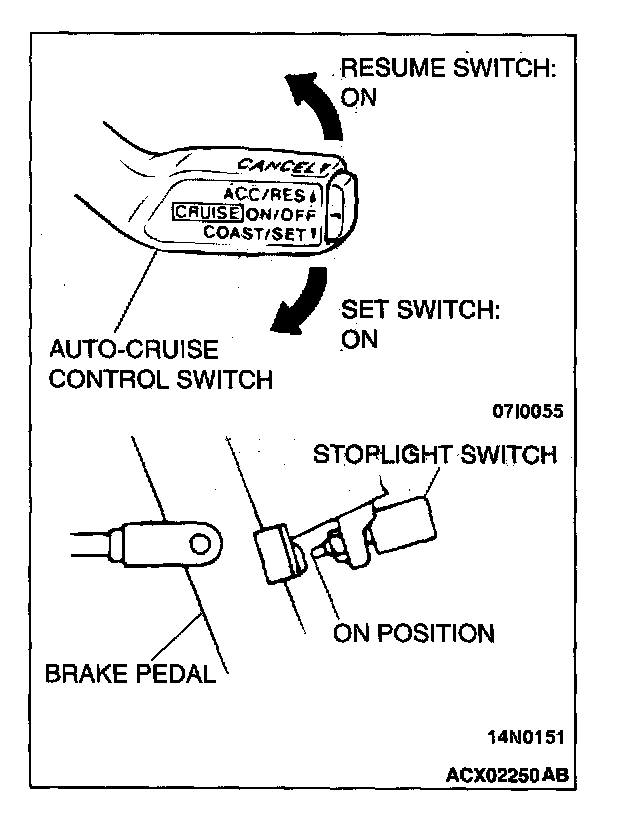

1. Turn the ignition switch to the ON position while holding the auto-cruise control switch in the SET1 (down) position. Then, within one second, more the auto-cruise control switch up to the RES position.
2. Check to make sure the CRUISE light on the instrument panel is flashing.
3. Put the auto-cruise control switch in the SET (down) position. Depress the brake pedal and hold for five seconds or more. Release the brake pedal, auto-cruise control switch,then turn the ignition switch to the LOCK (OFF) position. The DTC(s) is (are) now erased.
