Diagnostic Trouble Code Diagnosis
AUTO-CRUISE CONTROL SYSTEM DIAGNOSTIC TROUBLE CODE DIAGNOSISRetrieving Auto-cruise Control System Diagnostic Trouble Codes.
Using scan tool MB991502
Required Special Tool:
- MB991502: Scan Tool (MUT-II)
CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the LOCK (OFF) position before connecting or disconnecting scan tool MB991502.

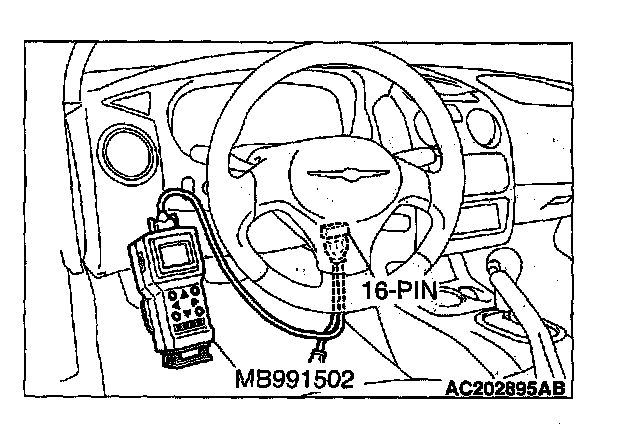

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the ON position.
3. Use scan tool MB91502 to check for auto-cruise control system diagnostic trouble codes.
4. Turn the ignition switch to the LOCK (OFF) position.
5. Disconnect scan tool MB991502.
Using a Auto-cruise Control Indicator Light

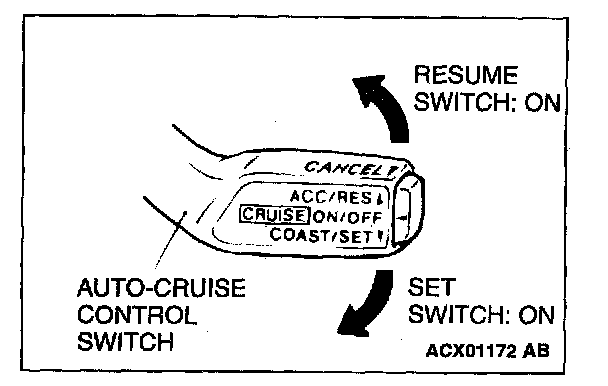

1. Turn the ignition switch to the ON position while holding the auto-cruise1control switch in the SET position (down). Then, within one second, more the auto-cruise control switch up to the RES position.
2. Read a diagnostic trouble code by observing the flash display pattern of the auto-cruise control indicator light in the combination meter.
