Parking Brake Cable: Service and Repair

REMOVAL AND INSTALLMENT





REMOVAL AND INSTALLATION

REMOVAL SERVICE POINTS
<REAR BRAKE CALIPER ASSEMBLY REMOVAL

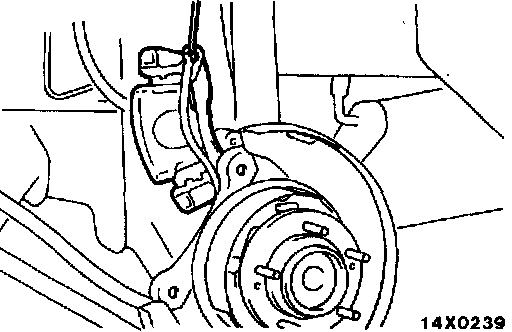

Remove the rear brake caliper assembly and support it with wire or something similar.

<> SHOE HOLD-DOWN CUP REMOVAL

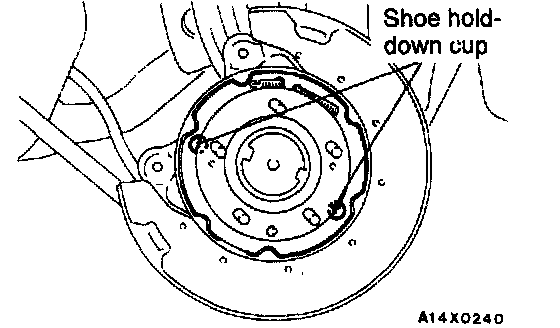

Extend the shoe and lining assembly, and remove the shoe hold-down cup.

INSTALLATION SERVICE POINTS
>>A<< ADJUSTER INSTALLATION

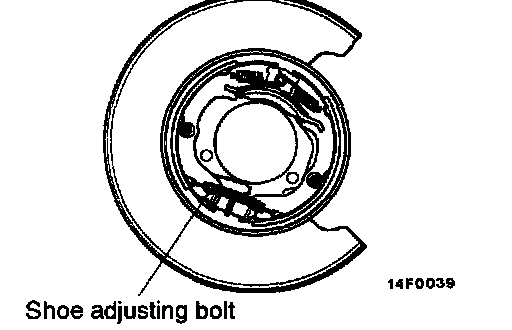

Install the adjuster so that the shoe adjusting bolt of left hand wheel is attached towards the front of the vehicle, and the shoe adjusting bolt of right hand wheel is towards the rear of the vehicle.

>>B<< SHOE-TO-ANCHOR SPRING INSTALLATION

CAUTION: The load on the respective shoe-to-anchor springs is different, so the rear side spring in the figure has been painted.

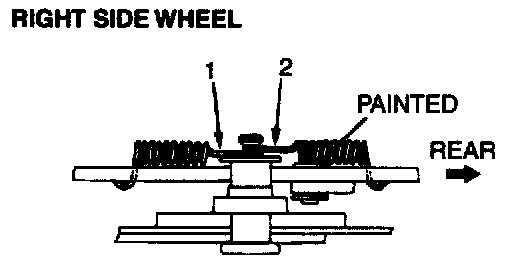

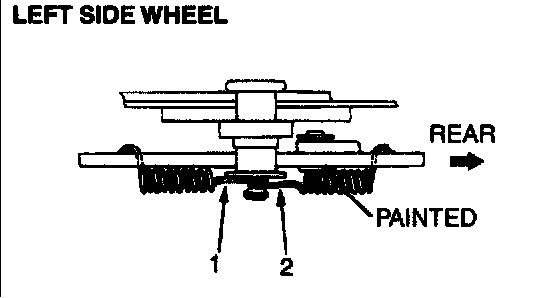

Install the shoe-to-anchor springs in the order shown in the illustration.
