Parking Brake System: Description and Operation

GENERAL DESCRIPTION
The parking brake is of a mechanical control type acting on the rear wheels. A lever is used to apply the parking brake.

The operation method utilizes a parking brake lever which is in an offset position at the driver's side.

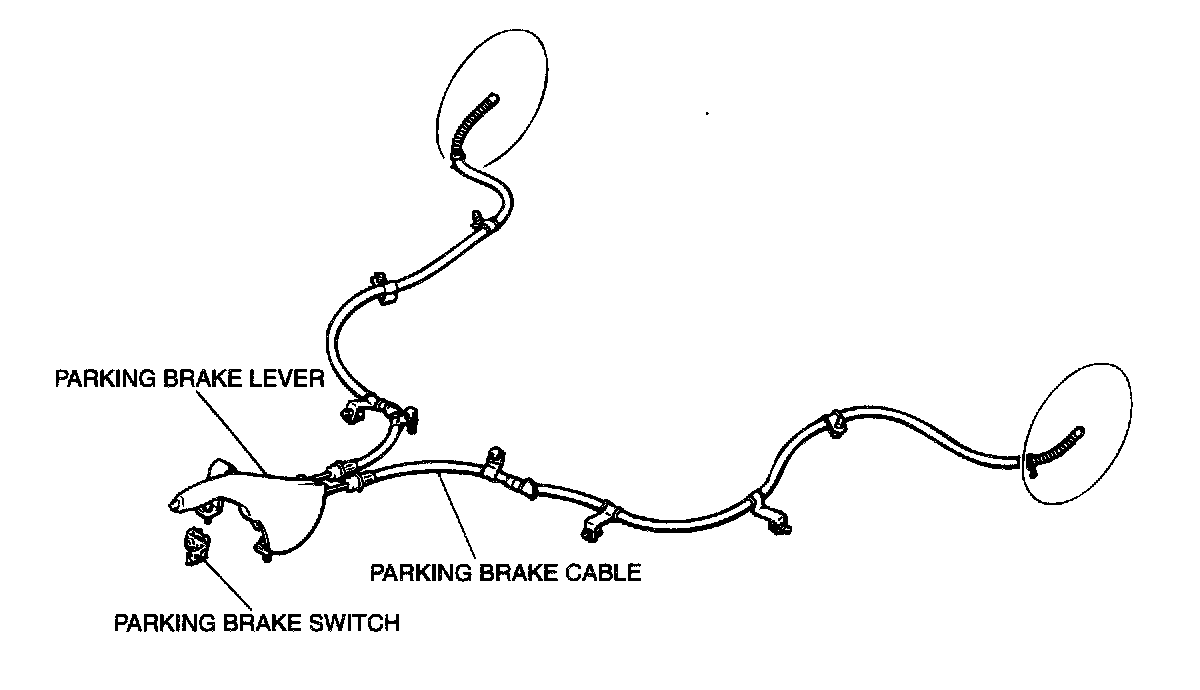

CONSTRUCTION DIAGRAM
