Actuator Test Reference

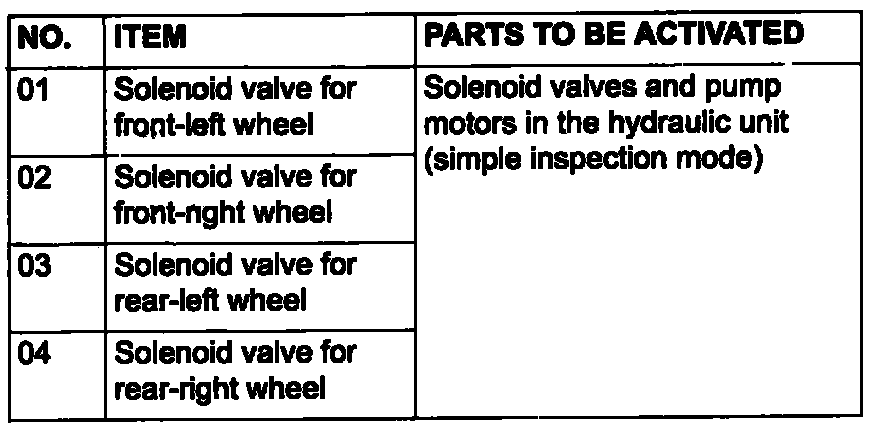

ACTUATOR TEST REFERENCE TABLE





The scan tool activates the actuators for testing.

NOTE: If the ABS-ECU is inoperative, actuator testing cannot be carried out.

NOTE: Actuator testing ignobly possible when the vehicle is stationary. If the vehicle speed during actuator testing exceeds 10 km/h (6 mph), forced actuation will be canceled.

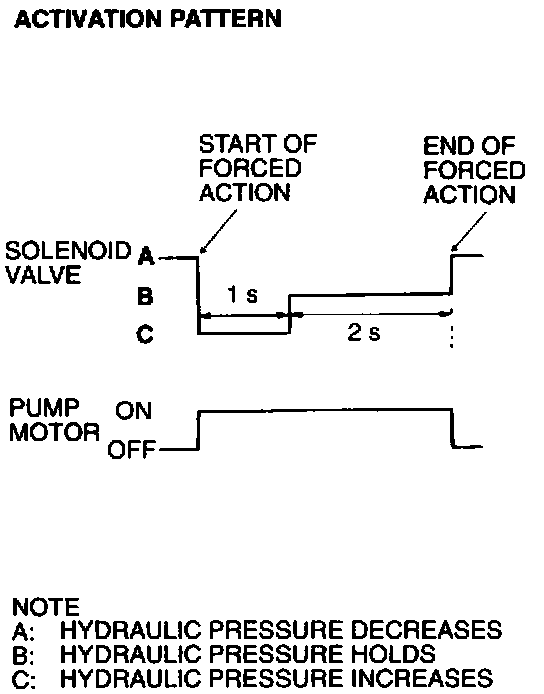

ACTUATOR TEST SPECIFICATIONS
