Front Cross-Member Bushing: Service and Repair

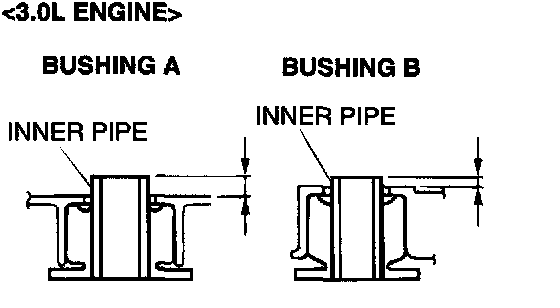

CROSSMEMBER BUSHING REPLACEMENTCrossmember Bushings A and B
1. Apply soapy water to the contact surface of the bushing when press-fitted the bushing.
2. The bushing should be press-fitted so that the inner pipe projection is at the standard length.
Standard values
^ Bushing A, B: 9.0 ± 1.0 mm (0.35 ± 0.04 in.)
Crossmember Bushing C

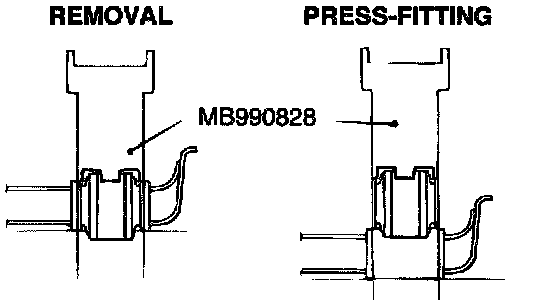

1. Use special tool MB990828 to drive out and press-fit the crossmember bushing C.
2. The bushing should be press-fitted so that the inner pipe projection is at the standard length.

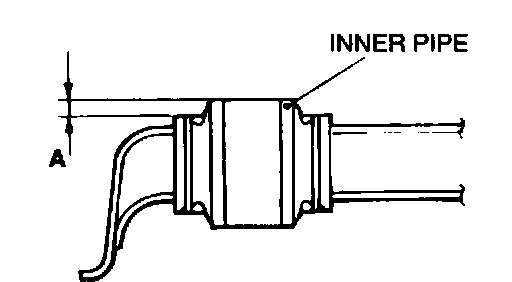

Standard value (A): 4.0 ± 0.5 mm (0.16 ± 0.02 in.)
