Trunk / Liftgate: Application and ID
TRUNK LIDADJUSTMENT OF TRUNK LID FIT

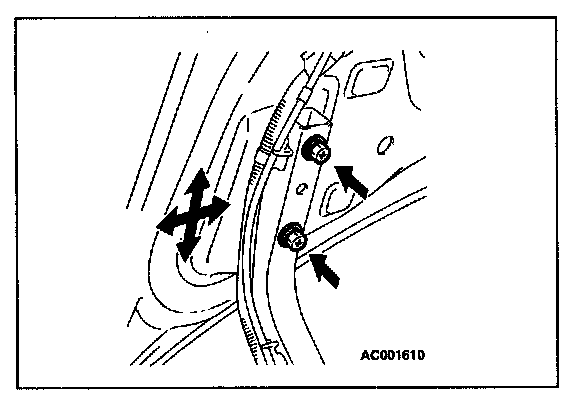

1. If the clearance between the trunk lid and the body is not uniform, loosen the trunk lid mounting bolts and move the trunk lid to adjust so that the clearance around the trunk lid is uniform.
Trunk lid mounting bolt tightening torque: 5.0 ± 1.0 N.m 44 ± 9 in-lb

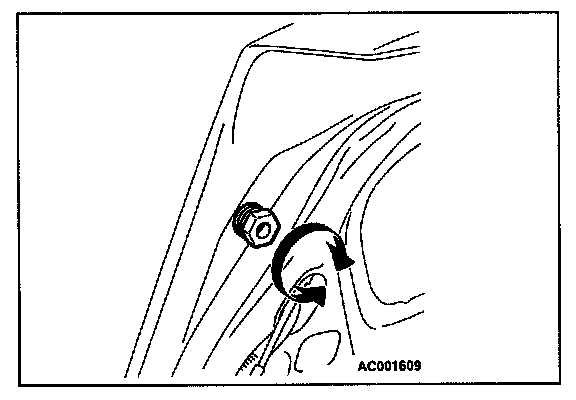

2. Turn the trunk lid bumpers either left or right to adjust the height of the trunk lid.

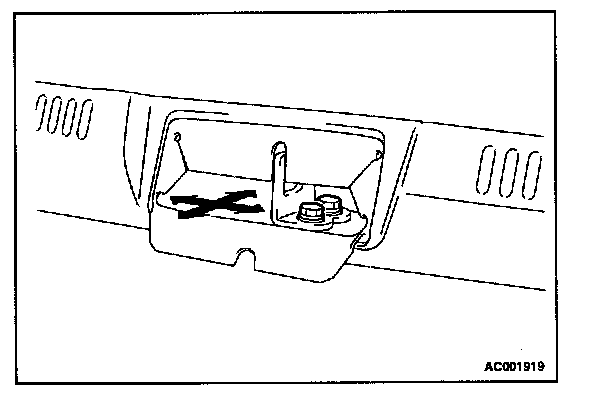

3. If the step, floating, locking and unlocking of the trunk lid are heavy, check the condition of the release cable, and then loosen the trunk lid striker mounting bolts and move the trunk lid striker to adjust the meshing with the trunk lid latch.
Trunk lid striker mounting bolt tightening torque: 8.9 ± 1.9 N.m 79 ± 17 in-lb
