Front Door Handle: Testing and Inspection

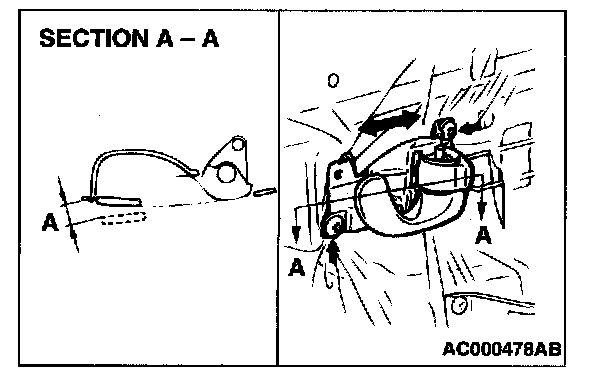

DOOR INSIDE HANDLE PLAY CHECK AND ADJUSTMENT
1. Check that the door inside handle play is within the standard value range.

Standard value (A): 3.2 mm (0.13 inch)

2. If the door inside handle play is outside the standard value range, remove the door trim.
3. Loosen the inside handle mounting screws, and then move the inside handle back and forth to adjust the play.

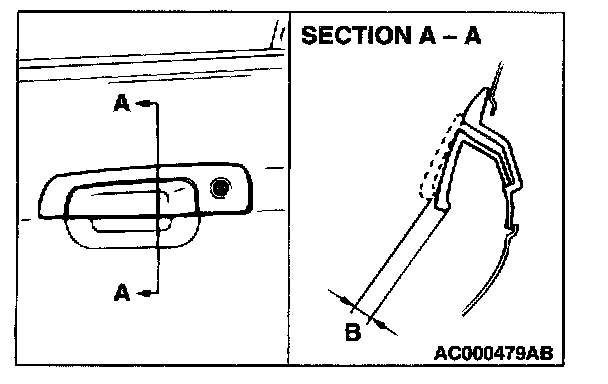

DOOR OUTSIDE HANDLE PLAY CHECK
1. Check that the door outside handle play is within the standard value range.

Standard value (B): 2.4 mm (0.09 inch)

2. If the door outside handle play is not within the standard value range, check the door outside handle or the door latch assembly. Replace the door outside handle or the door latch assembly. If it is necessary.
