Removal and Installation

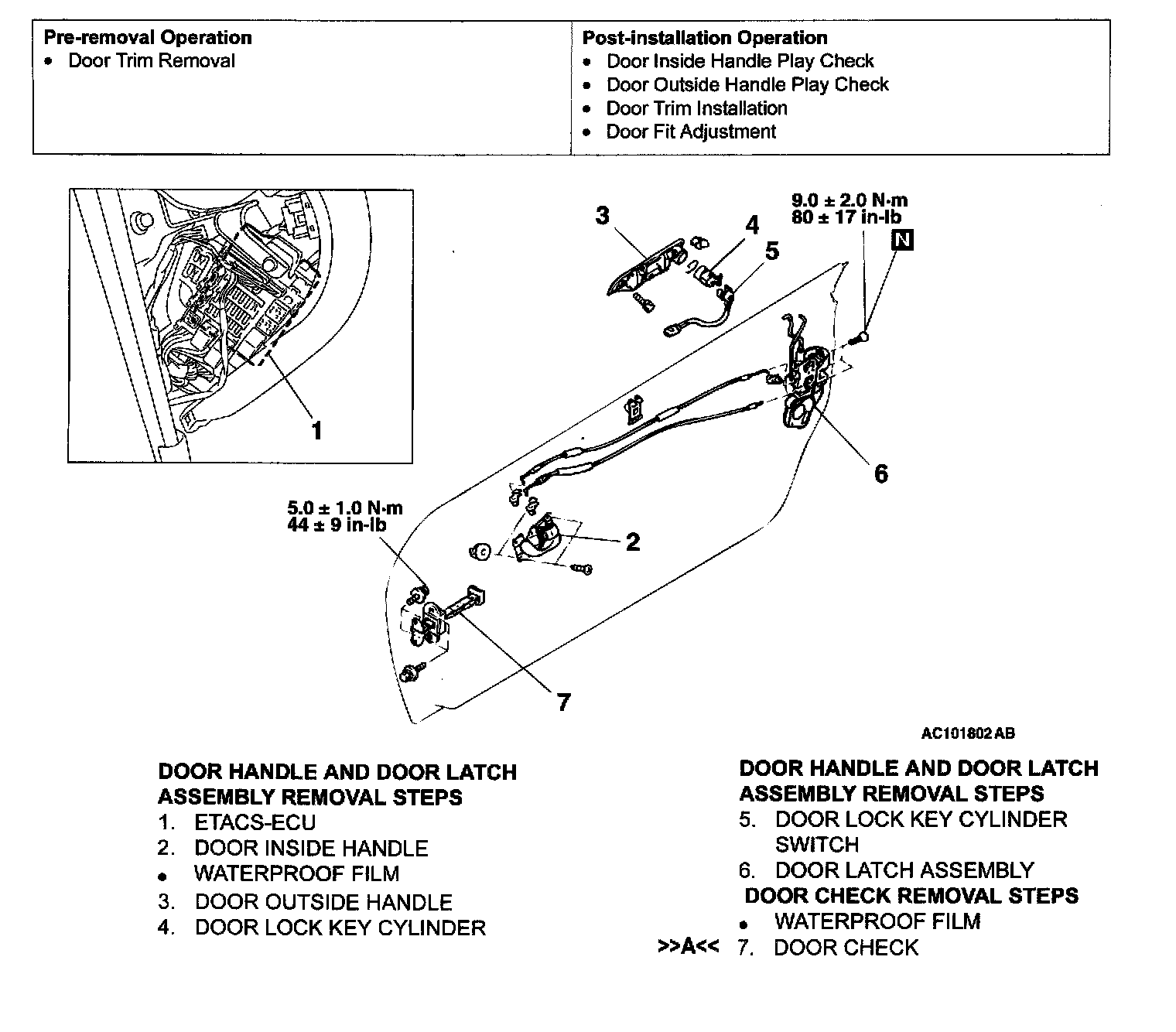

DOOR HANDLE AND LATCH


Removal And Installation:






INSTALLATION SERVICE POINT

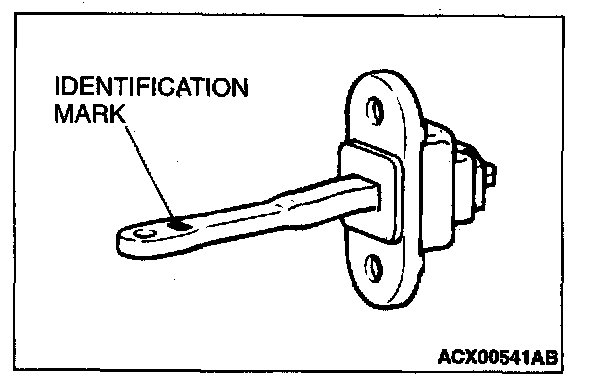

>>A<< DOOR CHECK INSTALLATION
Install the door check so that the identification mark faces upwards.
