P0732

DTC P0732: Gear 2 Incorrect Ratio

DESCRIPTIONS OF MONITOR METHODS
In 2nd gear, if a difference between turbine revolution and that value calculated from output revolution equals or exceeds specified value, TCM judges that step-out in 2nd gear has occurred.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- P0705: Transmission range switch malfunction
- P0715: Input shaft speed sensor malfunction
- P0720: Output shaft speed sensor malfunction
- P0743: Torque converter clutch solenoid malfunction
- P0753: Shift solenoid-A (Low and reverse solenoid) malfunction
- P0758: Shift solenoid-B (Underdrive solenoid) malfunction
- P0763: Shift solenoid-C (Second solenoid) malfunction
- P0768: Shift solenoid-D (Overdrive solenoid) malfunction
- P1751: A/T control relay malfunction

Sensor (The sensor below is determined to be normal)
- Input shaft speed sensor
- Output shaft speed sensor
- Transmission range switch
- Torque converter clutch solenoid
- Shift solenoid-A (Low and reverse solenoid)
- Shift solenoid-B (Underdrive solenoid)
- Shift solenoid-C (Second solenoid)
- Shift solenoid-D (Overdrive solenoid)
- A/T control relay

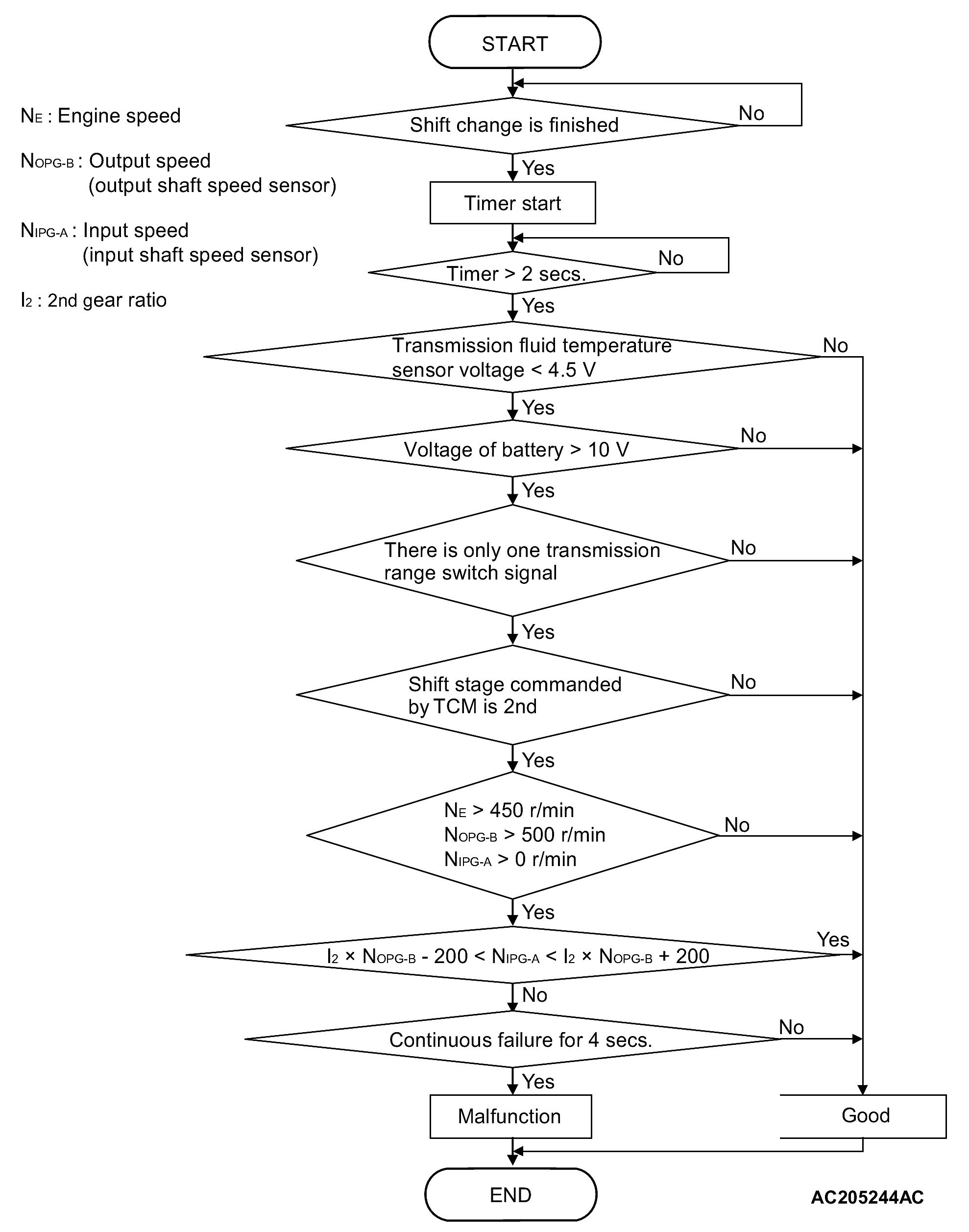

LOGIC FLOW CHARTS (Monitor Sequence):

DTC SET CONDITIONS (Entry Conditions and Malfunction Thresholds)

Check Conditions
- Engine speed: 450 r/min or more.
- Output speed: 500 r/min or more.
- Shift stage: 2nd gear.
- Input speed: more than 0 r/min.
- Transmission fluid temperature sensor voltage: 4.5 volts or less.
- Voltage of battery: 10 volts or more.
- Transmission range switch rationality: only one signal.
- Time after shift changing finish: 2 seconds or more.

Judgement Criteria
- Output speed: [(input speed + 200 r/min) / 2nd gear ratio] or more. (4 seconds)
- Output speed: [(input speed - 200 r/min) / 2nd gear ratio] or less. (4 seconds)

OBD-II DRIVE CYCLE PATTERN
Start the engine, and drive at 30 km/h (19 mph) or more for 10 seconds, with 2nd gear fixed (2 range or 2nd gear in sport mode).
