P0715

DTC P0715: Input Shaft Speed Sensor Malfunction

DESCRIPTIONS OF MONITOR METHODS
If there is no detection pulse from input shaft speed sensor (turbine rotation) even during driving test at more than specified speed, TCM judges that input shaft speed sensor has a failure.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- P0720: Output shaft speed sensor malfunction

Sensor (The sensor below is determined to be normal)
- Output shaft speed sensor

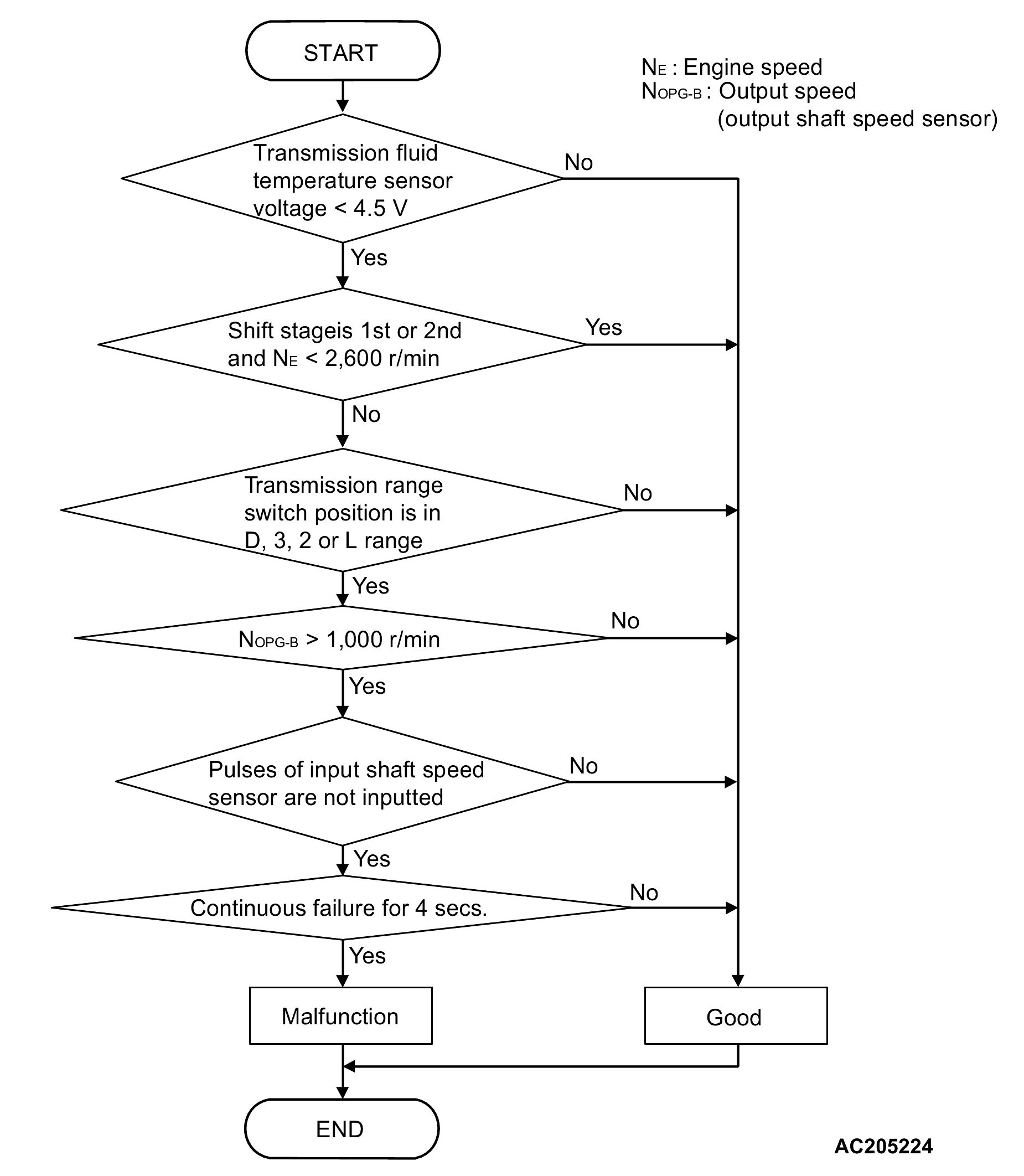

LOGIC FLOW CHARTS (Monitor Sequence):

DTC SET CONDITIONS (Entry Conditions and Malfunction Thresholds)

Check Conditions
- Transmission range switch position: D, 3, 2 or L.
- Output speed: 1,000 r/min or more.
- Transmission fluid temperature sensor voltage: 4.5 volts or less.

Judgement Criteria
- Input shaft speed sensor signal: no signal change. (4 seconds)

OBD-II DRIVE CYCLE PATTERN
Start the engine, shift to 3rd gear or higher, and drive at 40 km/h (25 mph) or more for 10 seconds.
