P0713

DTC P0713: Transmission Fluid Temperature Sensor Malfunction (High Input)

DESCRIPTIONS OF MONITOR METHODS
If transmission fluid temperature is below specified value even after driving test for more than specified period, TCM judges that transmission fluid temperature sensor has a failure.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- P0720: Output shaft speed sensor malfunction

Sensor (The sensor below is determined to be normal)
- Output shaft speed sensor

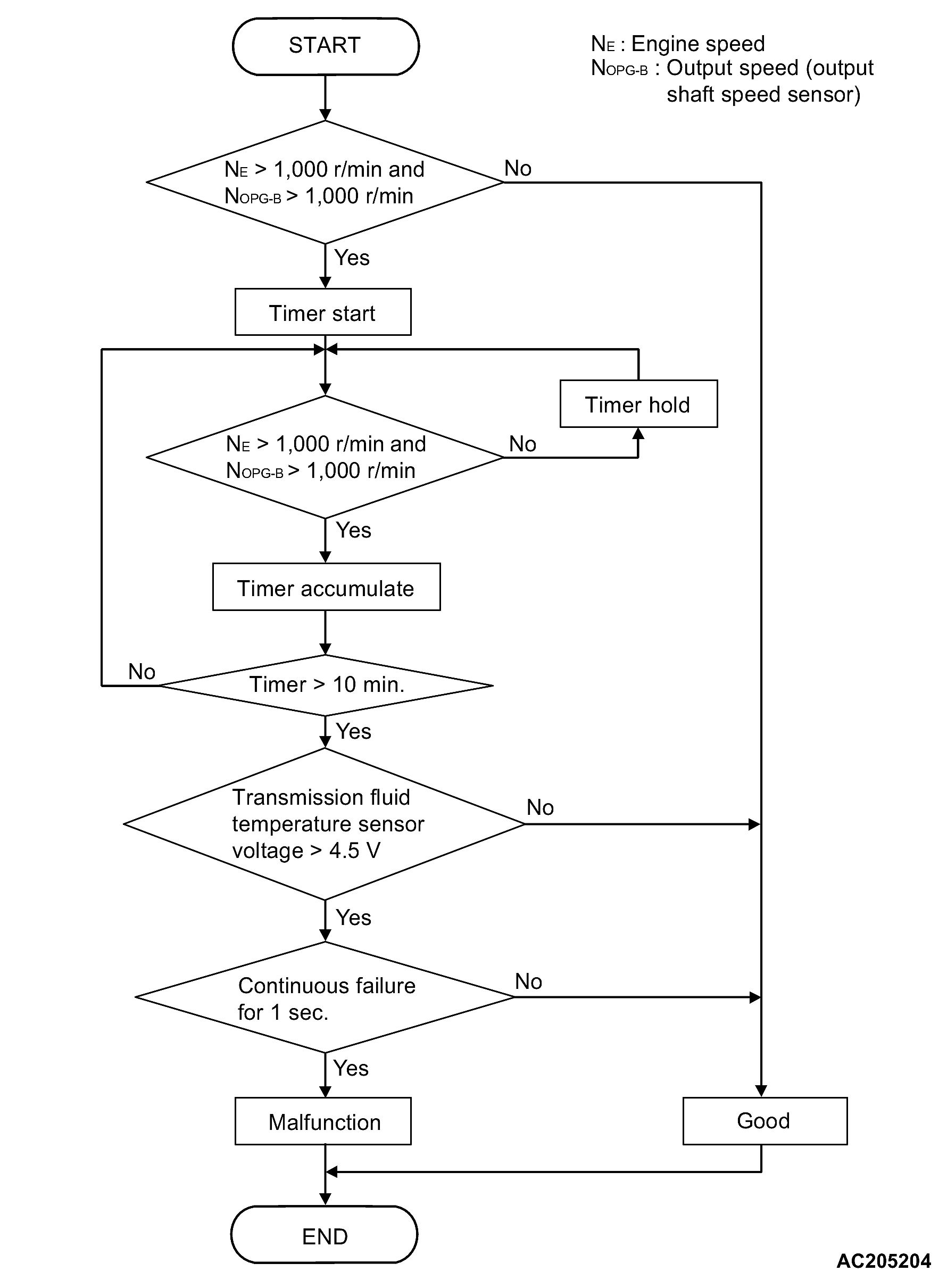

LOGIC FLOW CHARTS (Monitor Sequence):

DTC SET CONDITIONS (Entry Conditions and Malfunction Thresholds)

Check Conditions
- Engine speed: 1,000 r/min or more.
- Output speed: 1,000 r/min or more.
- Accumulated time in above condition: 10 minutes.

Judgement Criteria
- Transmission fluid temperature sensor voltage: 4.5 volts or more. (1 second)

OBD-II DRIVE CYCLE PATTERN
Start the engine, drive at 60 km/h (37 mph) or more for 15 minutes in total.
