P0712

DTC P0712: Transmission Fluid Temperature Sensor Malfunction (Low Input)

DESCRIPTIONS OF MONITOR METHODS
If transmission fluid temperature equals or exceeds specified value, TCM judges that transmission fluid temperature sensor has a failure.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable

Sensor (The sensor below is determined to be normal)
- Not applicable

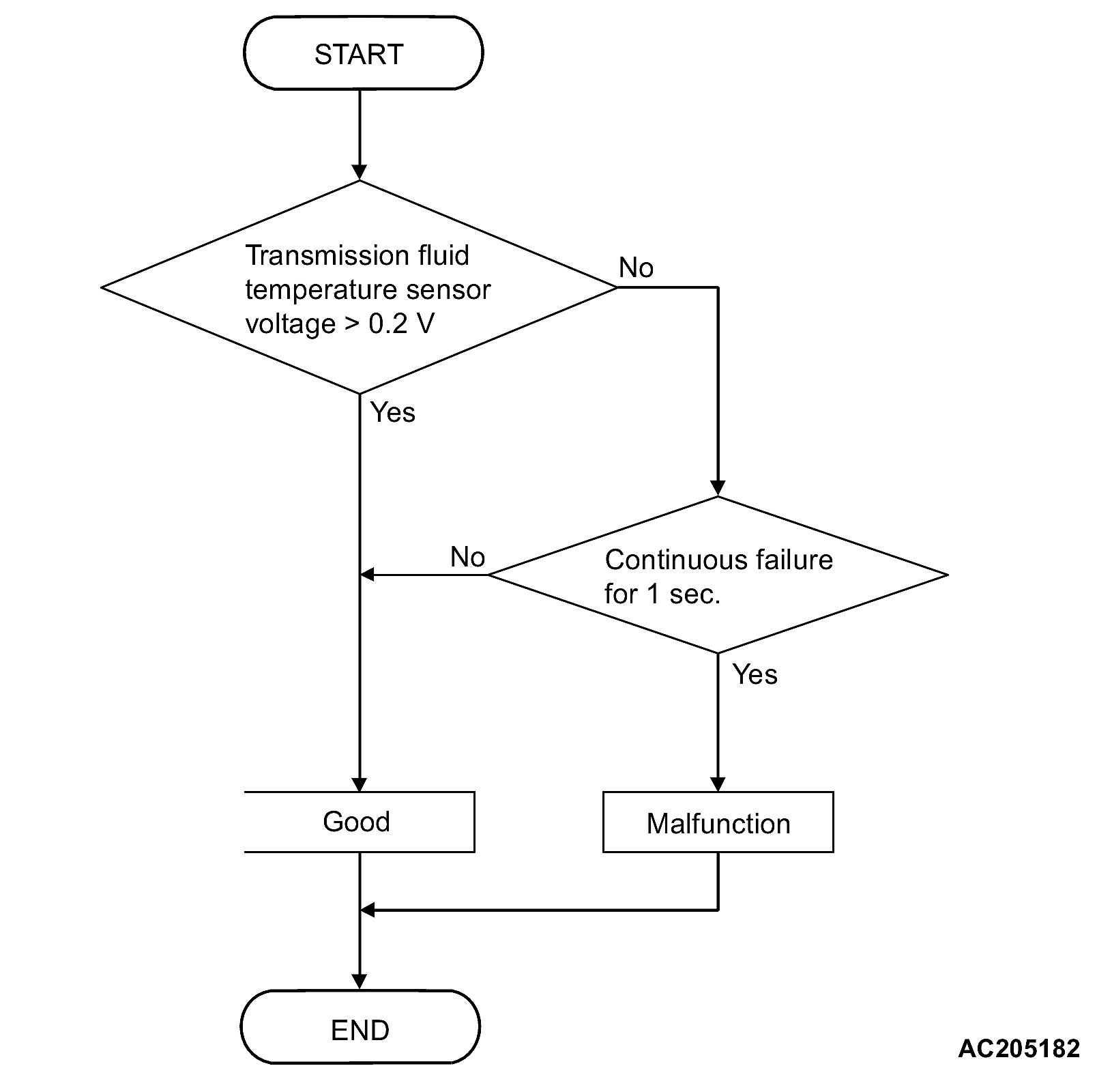

LOGIC FLOW CHARTS (Monitor Sequence):

DTC SET CONDITIONS (Entry Conditions and Malfunction Thresholds)

Check Conditions, Judgement Criteria
- Transmission fluid temperature sensor voltage: 0.2 volt or less. (1 second)

OBD-II DRIVE CYCLE PATTERN
Start the engine, keep the vehicle stopped in P range for 5 seconds.
