DTC 26

DTC 26: Stoplight Switch System

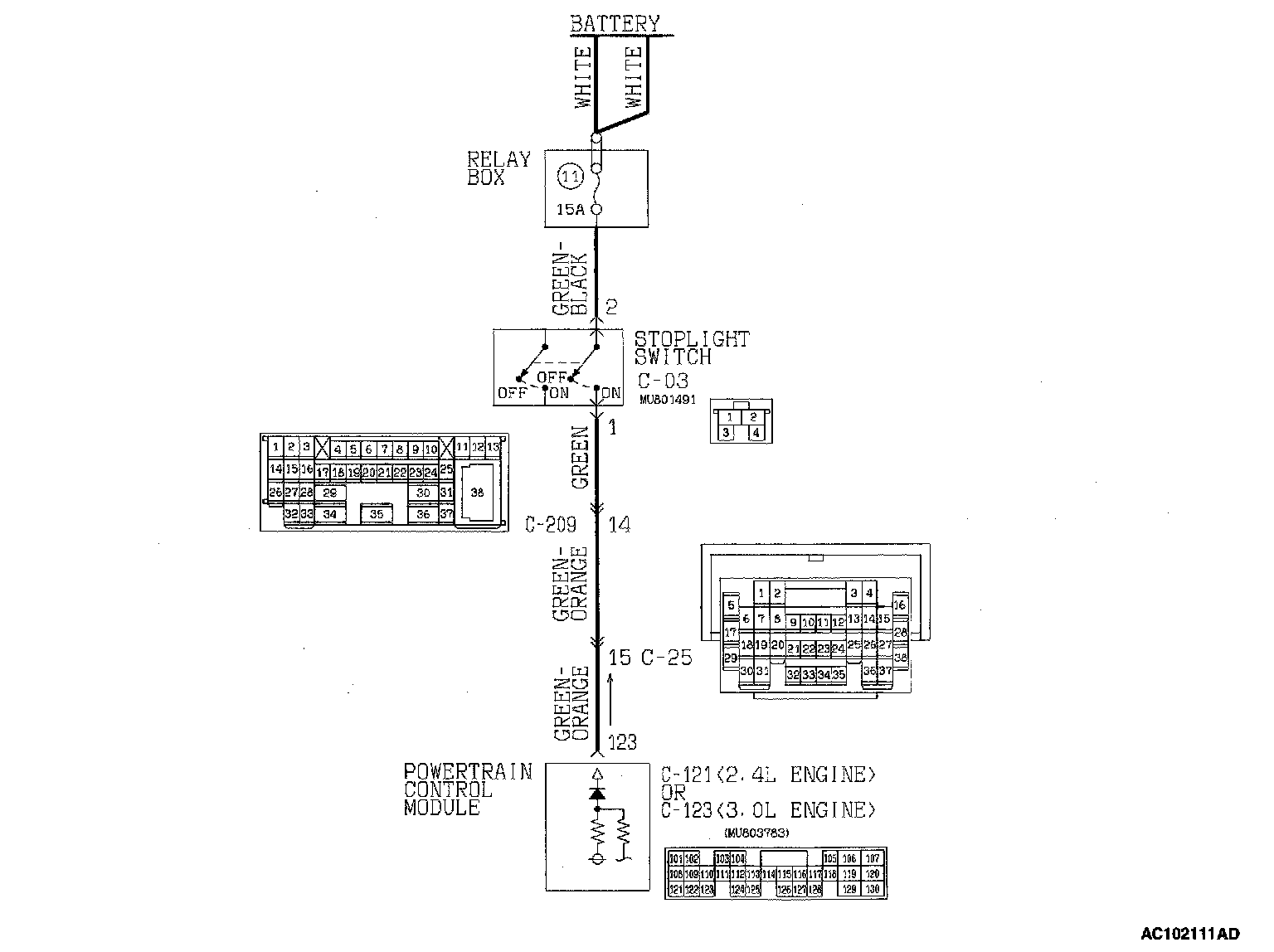

Stoplight Switch System Circuit

CIRCUIT OPERATION
- Battery positive voltage is supplied to the stoplight switch (terminal 2).
- When the brake pedal is depressed, battery positive voltage is applied to the PCM (terminal 123).

DTC SET CONDITIONS
If the stoplight switch is on for five minutes or more while driving above 50 km/h (31 mph), it is judged there is a short circuit in the stoplight switch and DTC 26 is set.

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Malfunction of the stoplight switch circuit
- Damaged harness or connector -
- Malfunction of the PCM

DIAGNOSIS

Required Special Tool:
- MB991502: Scan Tool (MUT-II)

STEP 1. Check the brake pedal height.
Q: Is the height adjusted properly?
YES: Go to Step 2.
NO: Adjust the brake pedal to the proper height.

STEP 2. Using scan tool M13991502, check data list item 26: Stoplight Switch.

CAUTION: To prevent damage to scan tool M13991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool M13991502.

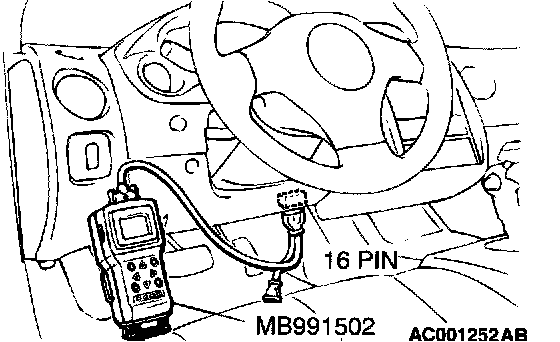

1) Connect scan tool MB991502 to the data link connector.
2) Turn the ignition switch to the "ON" position.
3) Set scan tool MB991502 to data reading mode for item 26, Stoplight Switch.
- When the brake pedal is depressed, the display on the scan tool MB991502 should be "ON."
- When the brake pedal is not depressed, the display on the scan tool MB991502 should be "OFF."

4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the switch operating properly?
YES: If can be assumed that this malfunction may be intermittent.
NO: Go to Step 3.

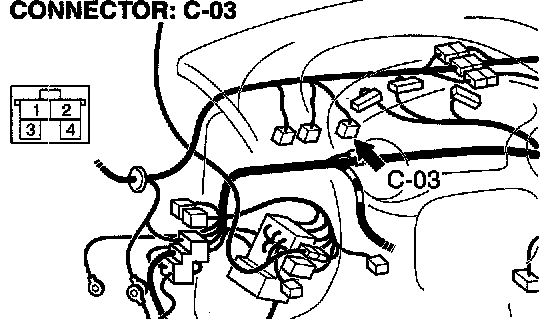

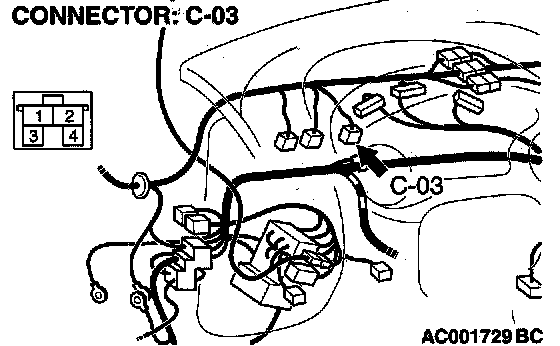

STEP 3. Measure the stoplight switch power supply voltage at connector C-03 by backprobing.





1) Remove the stoplight switch from the mounting bracket.
2) Do not disconnect connector C-03.

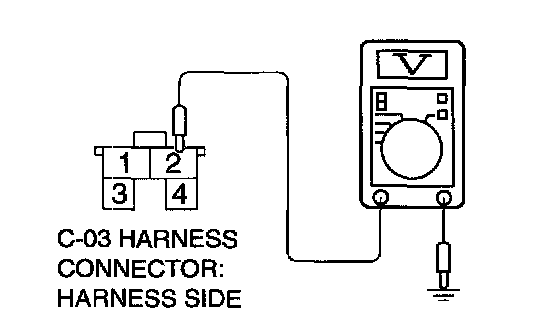

3) Measure the voltage between terminal 2 and ground by backprobing.
- The voltage should measure battery positive voltage.

Q: Is the measured voltage battery positive voltage?
YES: Go to Step 6.
NO: Go to step 4.

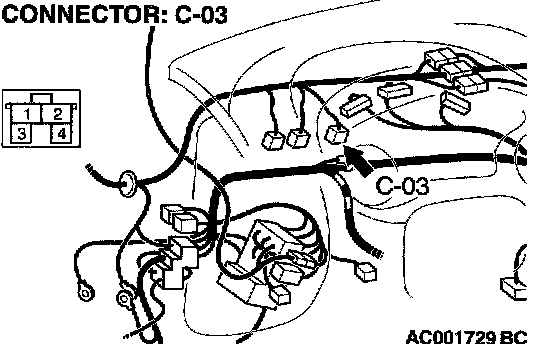

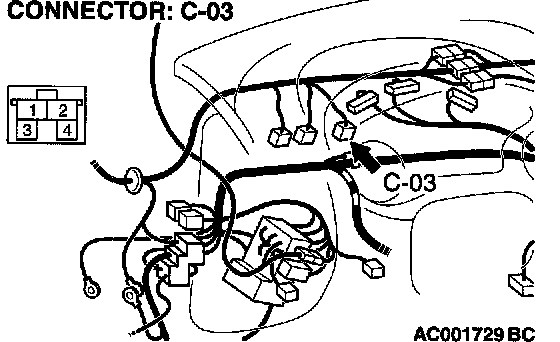

STEP 4. Check stoplight switch connector C-03 for loose, corroded or damaged terminals, or terminals pushed back in the connector.





Q: Are the connector and terminals in good condition?
YES: Go to Step 5.
NO: Repair or replace the damaged components.

STEP 5. Check the harness for damage between stoplight switch connector C-03 terminal 2 and the power supply fuse.





Q: Is the harness wire in good condition?
YES: Go to Step 6.
NO: Repair or replace the harness wire.

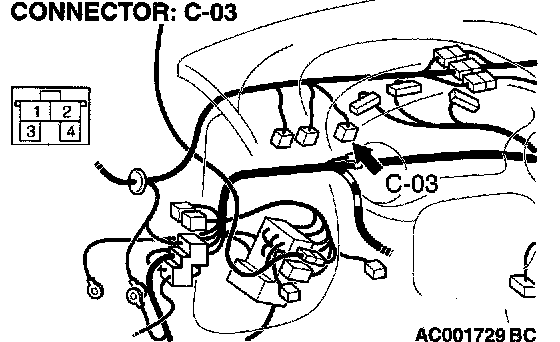

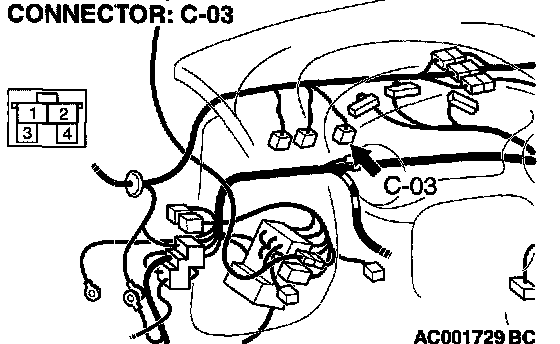

STEP 6. Measure the stoplight switch output voltage to the PCM at connector C-03 by backprobing.





1) Remove the stoplight switch from the mounting bracket.
2) Do not disconnect connector C-03.

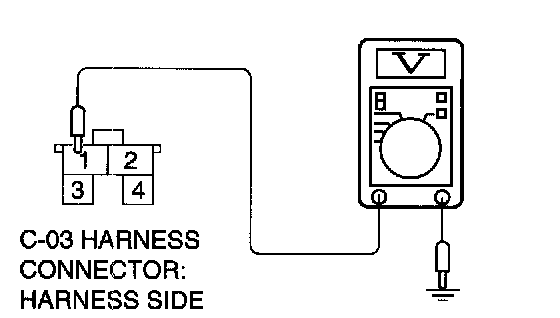

3) Measure the voltage between terminal 1 and ground by backprobing.
- When the switch button is out (closed circuit), voltage should equal battery positive voltage.
- When the switch button is depressed (open circuit), voltage should measure less than 1.0 volt.

Q: Is the measured voltage battery positive voltage with the switch button released (closed circuit), and less than 1.0 volt with the switch button depressed (open circuit)?
YES: Go to Step 8.
NO: Go to Step 7.

STEP 7. Check the stoplight switch.





Refer to Stoplight Switch Check.
Q: Does the stoplight switch pass the checks?
YES: Go to Step 8.
NO: Replace the stoplight switch.

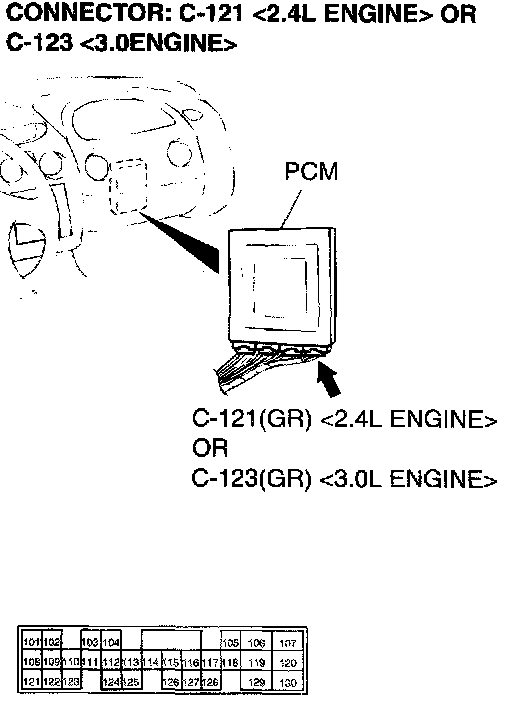

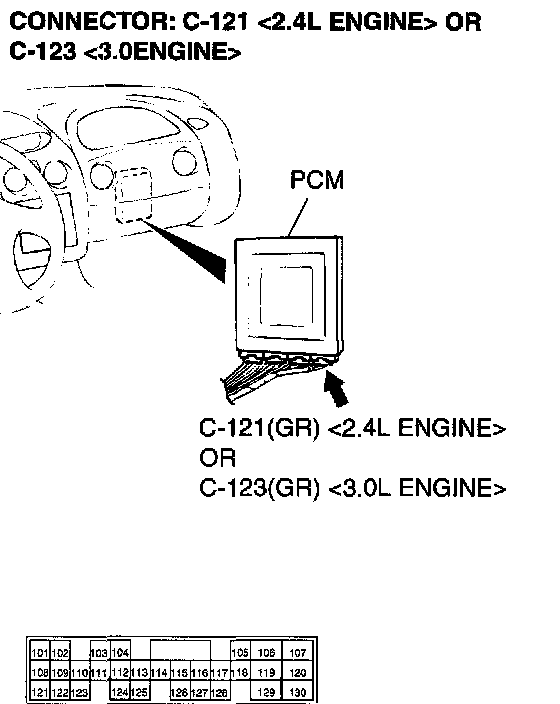

STEP 8. Measure the stoplight switch output voltage at the PCM connector C-121 <2.4L Engine> or C-123 <3.0L Engine> by backprobing.
1) Install the stoplight switch into the mounting bracket if it was removed.





2) Do not disconnect connector C-121 <2.4L Engine> or C123 <3.0L Engine>.

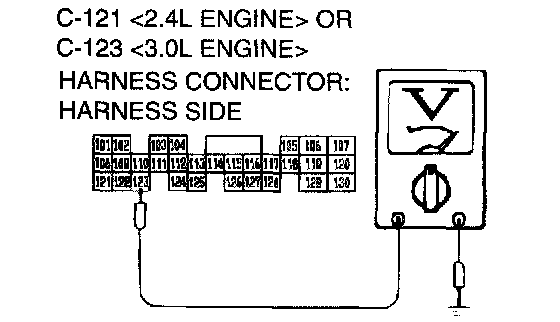

3) Measure the voltage between terminal 123 and ground by backprobing.
- When the brake pedal is depressed, voltage should measure battery positive voltage.
- When the brake pedal is not depressed, voltage should measure less than 1.0 volt.

Q: Is the measured voltage battery positive voltage with the brake pedal depressed (closed circuit), and less than 1.0 volt with the brake pedal released (open circuit)?
YES: Go to Step 11.
NO: Go to Step 9.

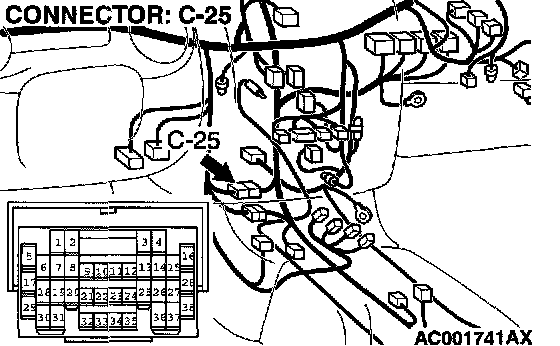

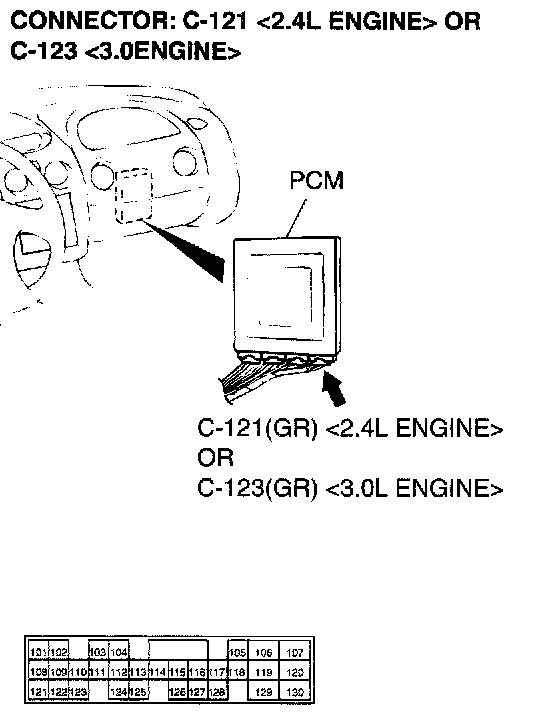

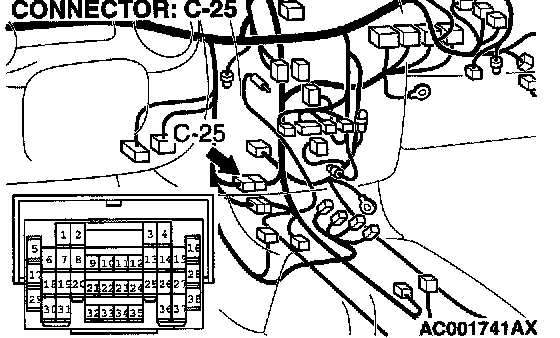

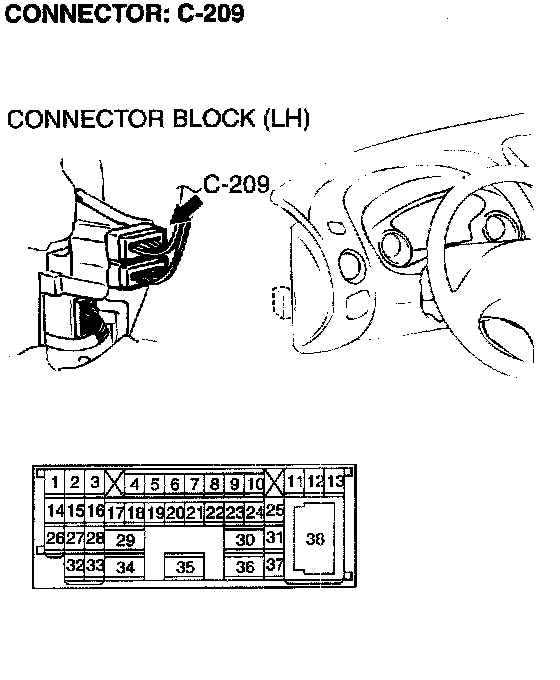

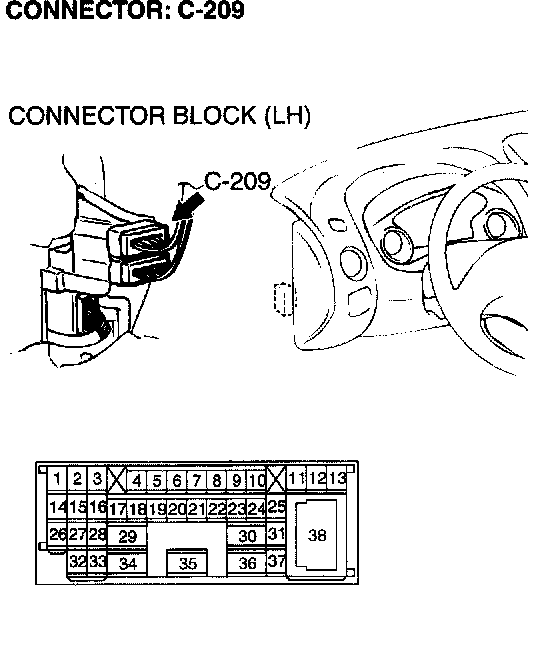

STEP 9. Check PCM connector C-121 <2.4L Engine> or C123 <3.0L Engine>, intermediate connector C-25 and C-209 for loose, corroded or damaged terminals, or terminals pushed back in the connector.











Q: Are the connectors and terminals in good condition?
YES: Go to Step 10.
NO: Repair or replace the damaged components.

STEP 10. Check the harness for damage between stoplight switch connector C-03 terminal 1 and PCM connector C121 <2.4L Engine> or C-123 <3.0L Engine> terminal 123.








Q: Is the harness wire in good condition?
YES: Go to Step 11.
NO: Repair or replace the harness wire.

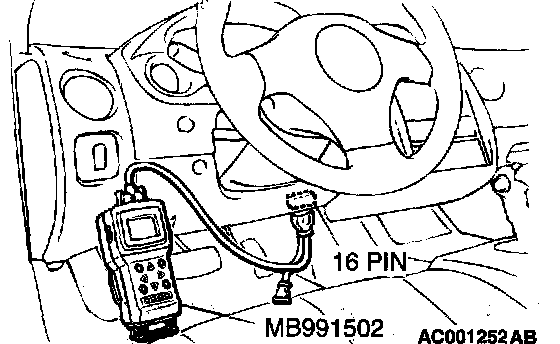

STEP 11. Using scan tool M13991502, check data list item 26: Stoplight Switch.

CAUTION: To prevent damage to scan tool M13991502, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool M13991502.






1) Connect scan tool MB991502 to the data link connector.
2) Turn the ignition switch to the "ON" position.
3) Set scan tool MB991502 to data reading mode for item 26,
Stoplight Switch.
- When the brake pedal is depressed, the display on the scan tool MB991502 should be "ON."
- When the brake pedal is not depressed, the display on the scan tool MB991502 should be "OFF."

4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the switch operating properly?
YES: If can be assumed that this malfunction may be intermittent.
NO: Replace the PCM.
