Items Indicated By the Malfunction Indicator Lamp

ITEMS INDICATED BY THE MALFUNCTION INDICATOR LAMP (SERVICE ENGINE SOON OR CHECK ENGINE LAMP)

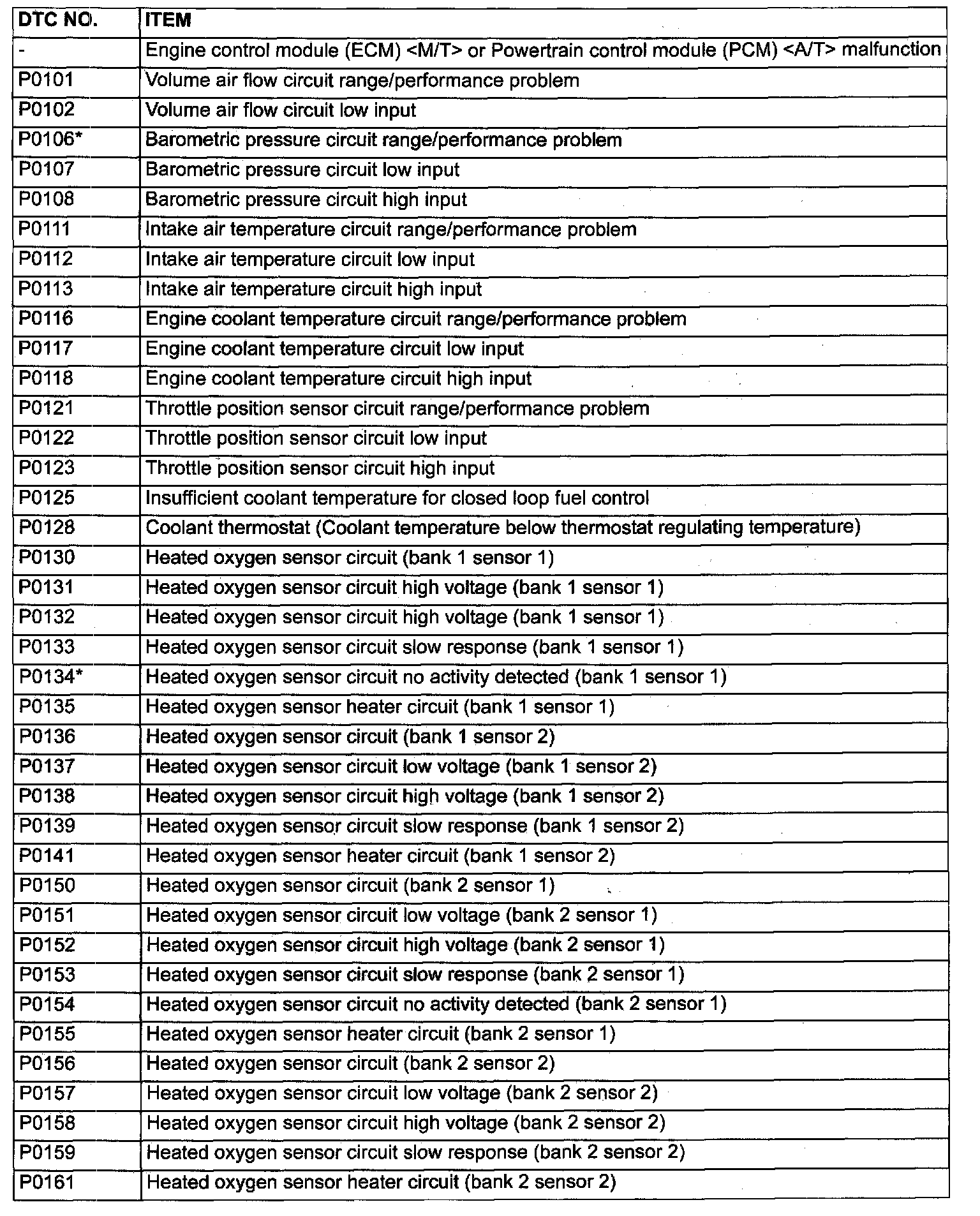

P0101 - P0161:

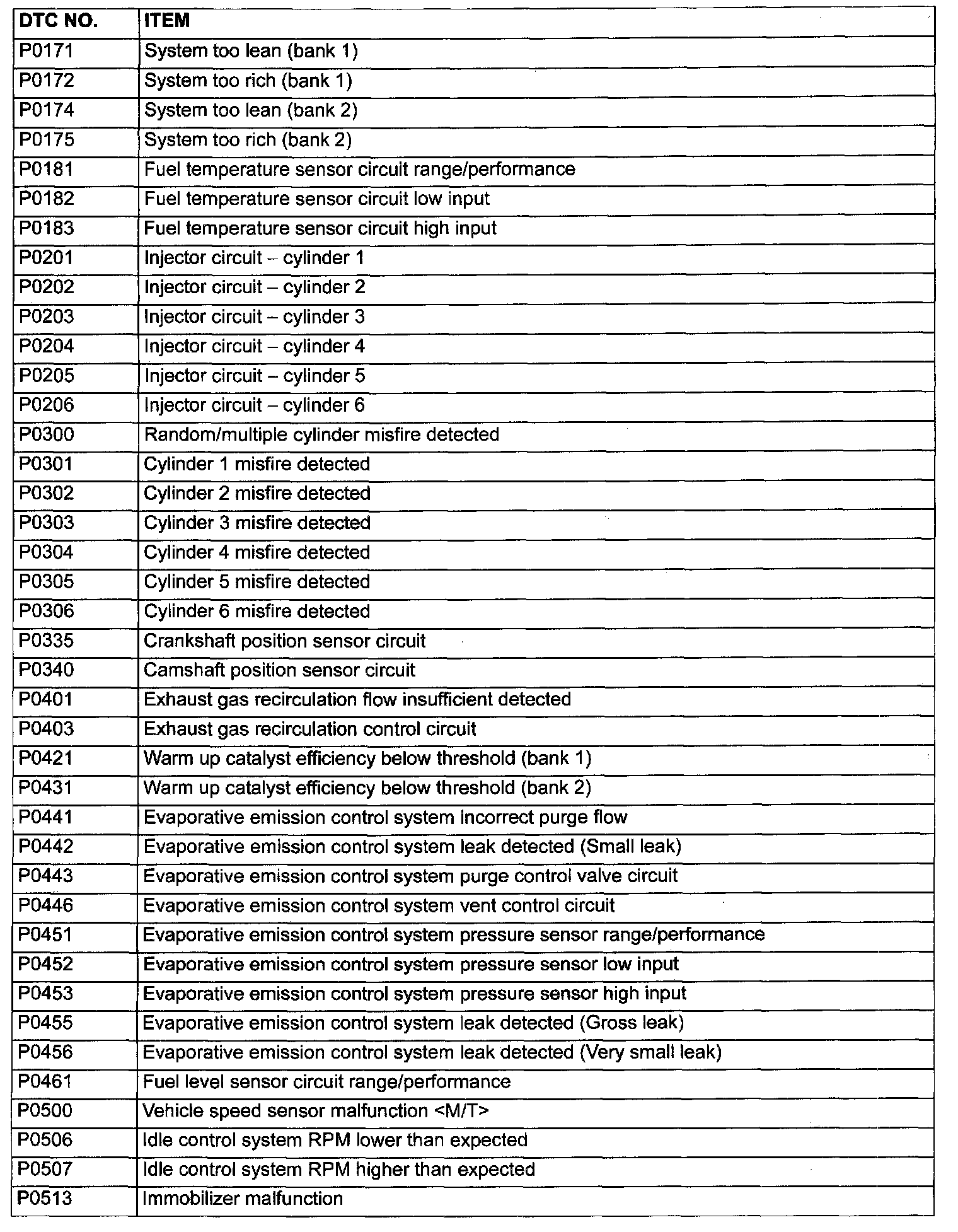

P0171 - P0513:

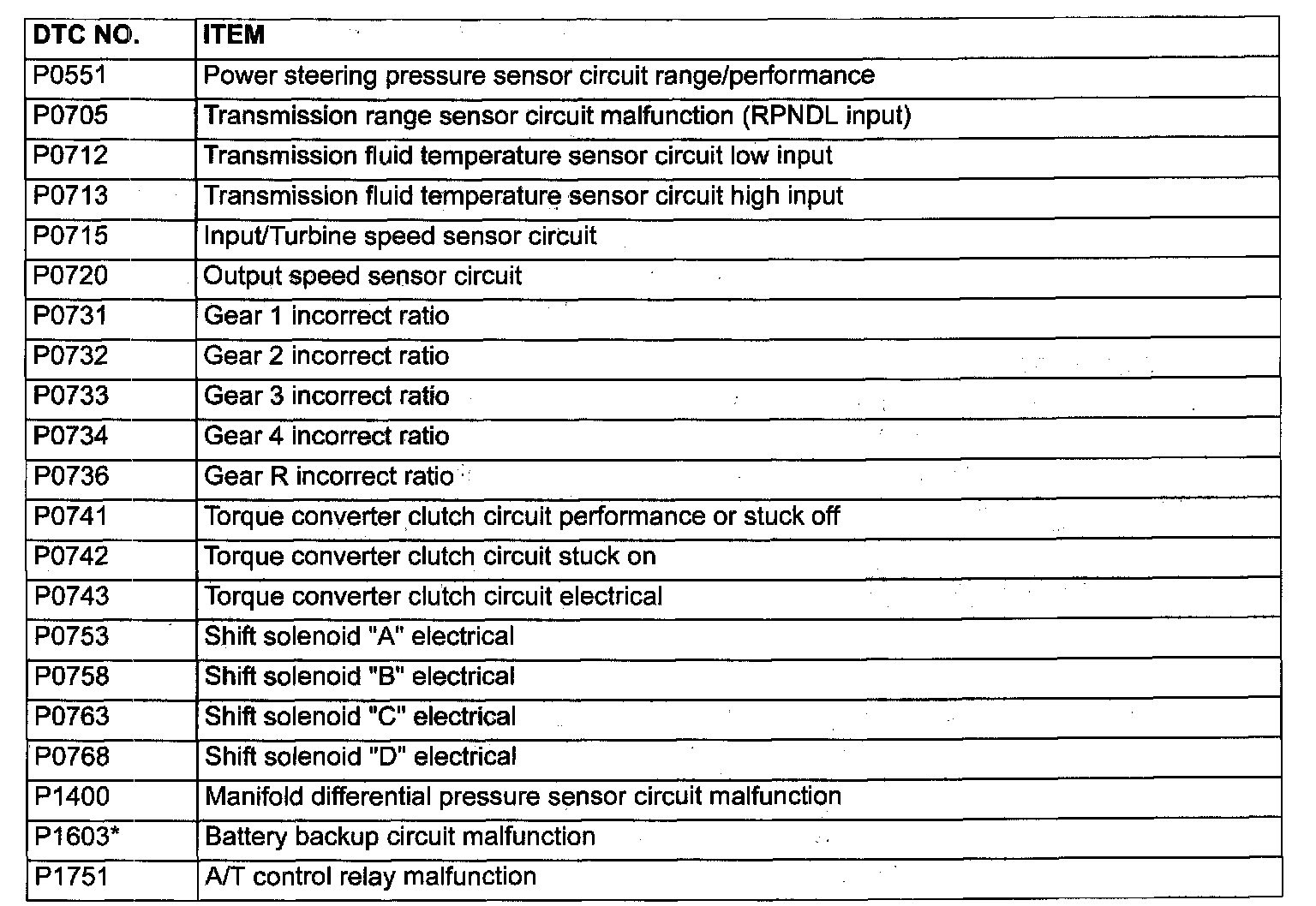

P0551 - P1751:

NOTE:
- If the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates because of a malfunction of the engine control module (ECM) or powertrain control module (PCM) , communication between scan tool MUT-II (MB991502) and the ECM or PCM is impossible. In this case, the diagnostic trouble code cannot be read.
- After the ECM or PCM has detected a malfunction, the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates when the engine is next turned on and the same malfunction is re-detected. However, for items marked with a "*" in the DTC No. column, the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates on the first detection of the malfunction.
- After the Malfunction Indicator Lamp (SERVICE ENGINE SOON or Check Engine Lamp) illuminates, it will be switched off under the following conditions.

- When the ECM or PCM monitored the power train malfunction three times* and met set condition requirements, it detected no malfunction. *: In this case, "Done time" indicates from engine start to stop.
- For misfiring or a fuel trim malfunction, when driving conditions (engine speed, engine coolant temperature, etc.) are similar to those when the malfunction was first recorded.

- Sensor 1 indicates the sensor mounted at a position closest to the engine, and sensor 2 indicates the sensor mounted at the position second closest to the engine.
- Bank 1 indicates the right bank side cylinder, and bank 2 indicates the left bank side cylinder.
