Removal and Installation

INSTALLATION SERVICE POINT

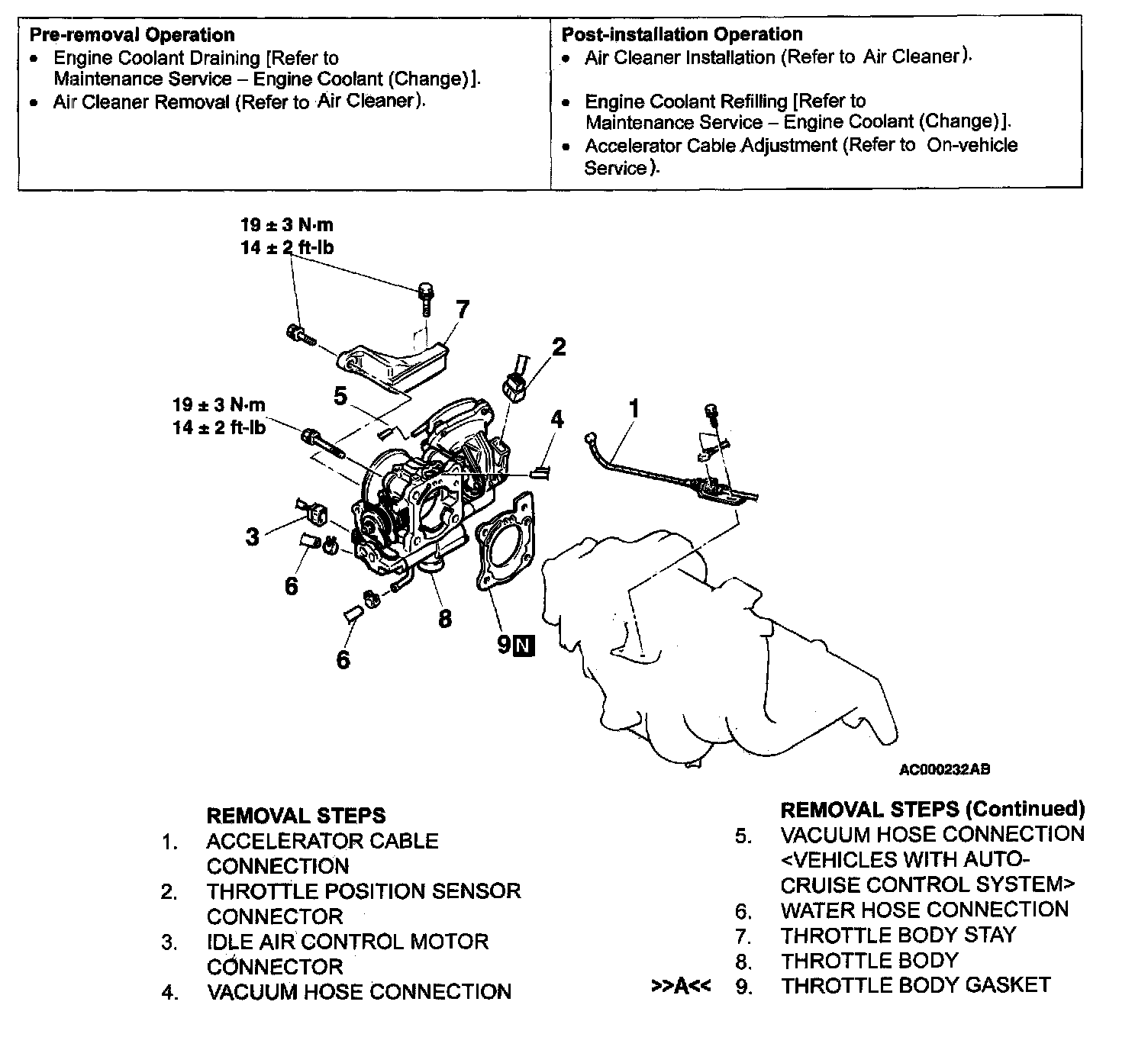

Throttle Body Assembly:





>>A<





CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

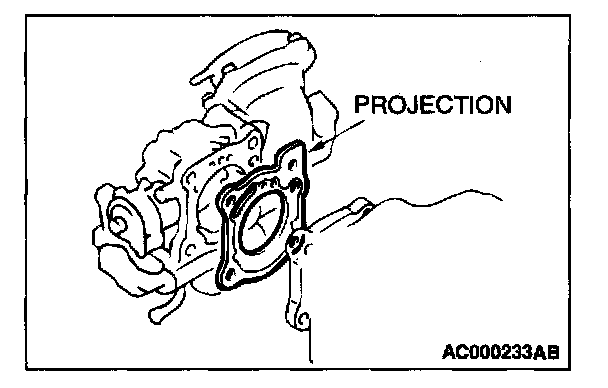

Install the throttle body gasket as shown in the illustration.
