Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL

REMOVAL - 4 CYLINDER
1. Disconnect the negative battery cable.

Fig.24 Generator And MAP Sensor:

2. Disconnect electrical connector from MAP sensor.
3. Remove two screws holding sensor to the intake manifold.

REMOVAL - 2.7L
1. Remove the negative battery cable.

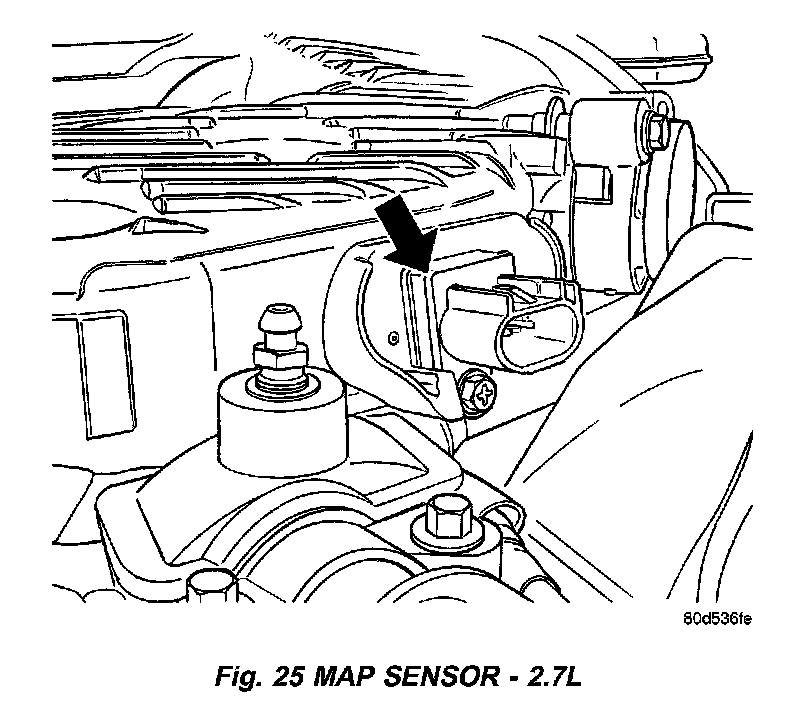

Fig.25 MAP Sensor - 2.7L:

2. Disconnect the electrical connector from the MAP sensor.
3. Remove bolt from sensor.
4. Remove sensor.



INSTALLATION

INSTALLATION - 4 CYLINDER
1. Install sensor.
2. Install two screws and tighten.
3. Connect the electrical connector to the MAP sensor.
4. Connect the negative battery cable.


INSTALLATION - 2.7L

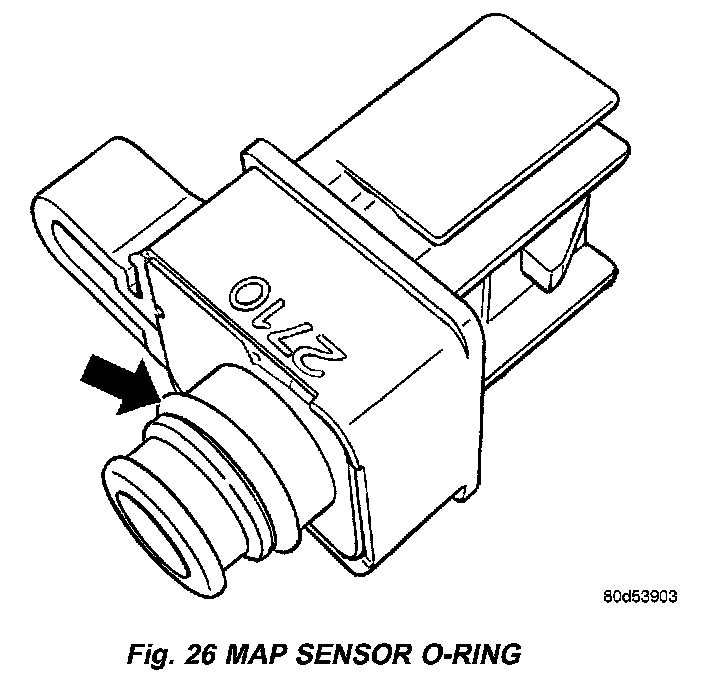

Fig.26 MAP Sensor O-Ring:

1. The sensor mounts onto intake manifold plenum. Tighten screws to 4.5 Nm (40 in. lbs.) torque.
2. Attach electrical connector to sensor.
3. Install the negative battery cable.
