Headlamp Alignment Switch: Testing and Inspection

DIAGNOSIS AND TESTING - HEADLAMP LEVELING SWITCH - EXPORT
1. Remove the headlamp leveling switch.

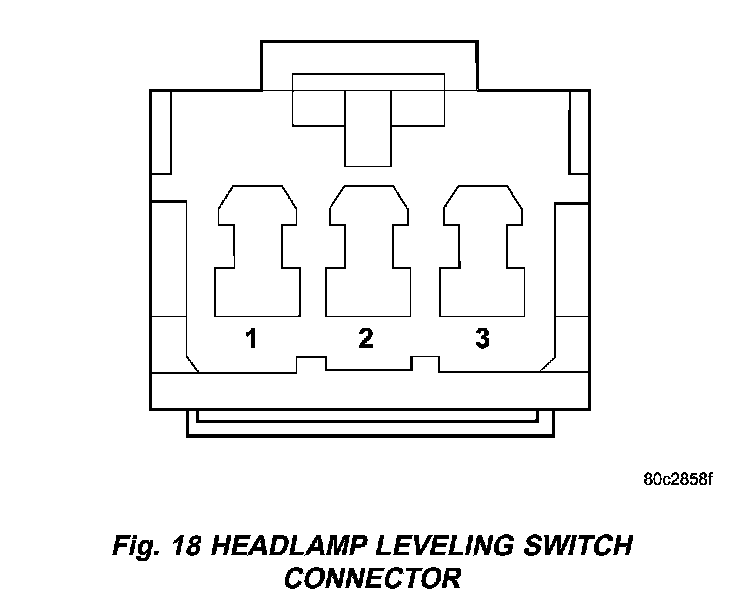

Headlamp Leveling Switch Connector:

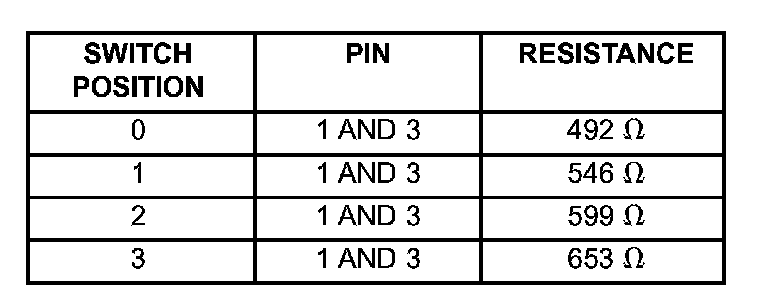

Headlamp Leveling Switch Resistance:

2. Using an ohmmeter, check the resistance readings between headlamp leveling switch pins. Refer to the headlamp leveling switch resistance table.
