Component Locations

WHEEL SPEED SENSOR

FRONT

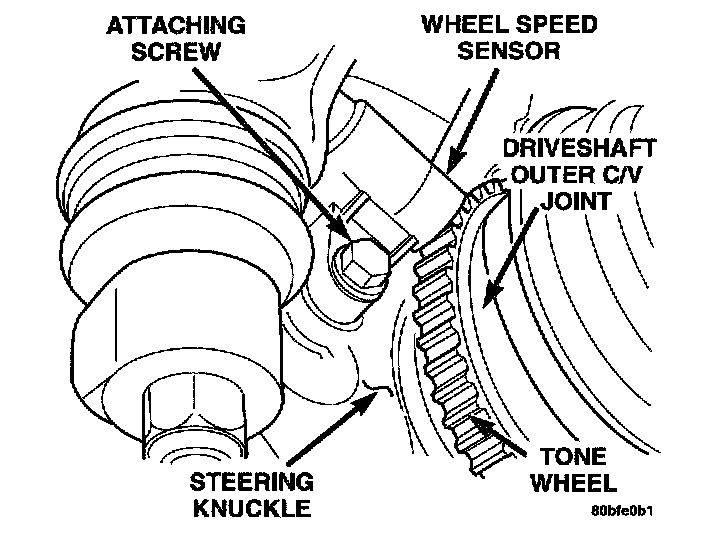

Left Front:

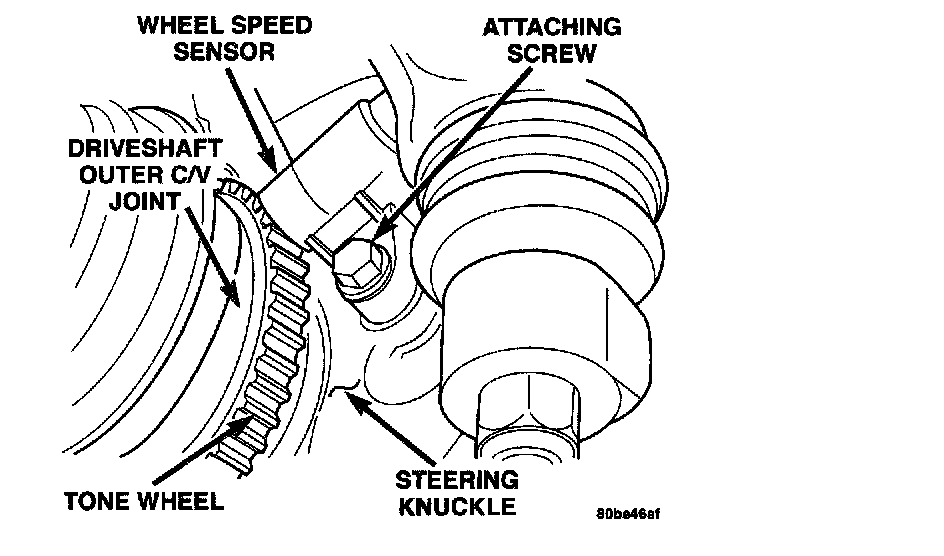

Right Front:






REAR

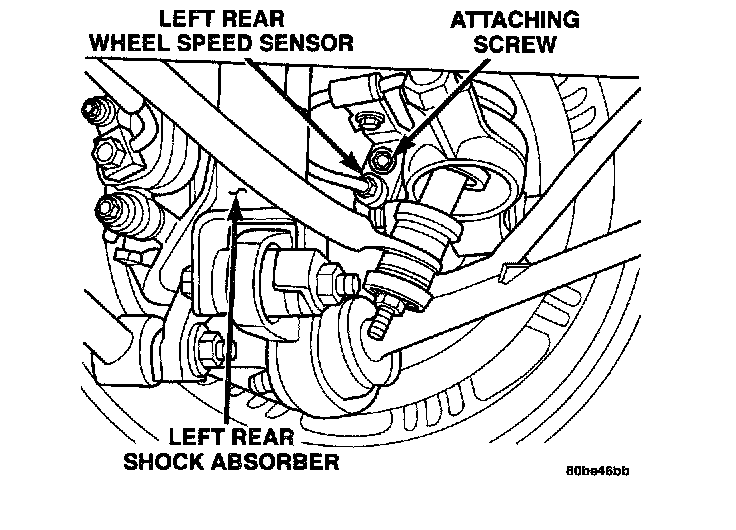

Left Rear:

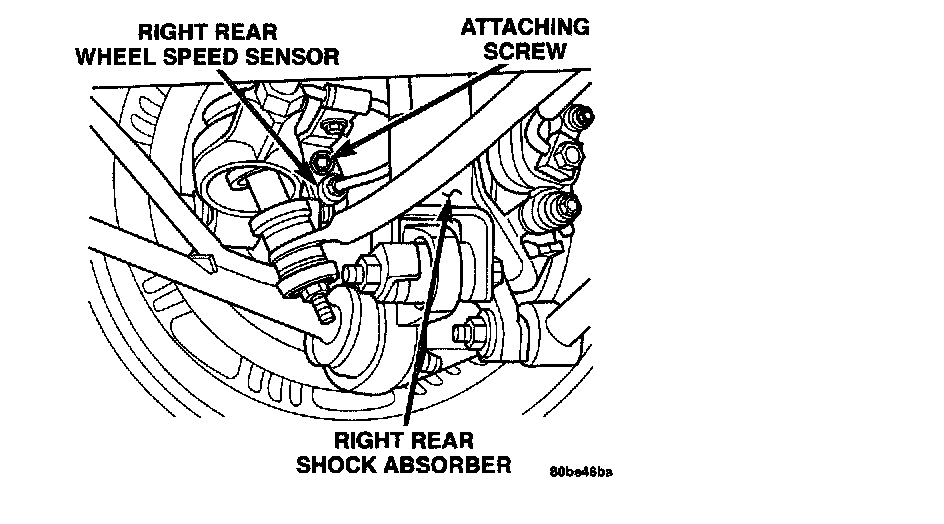

Right Rear:







WHEEL SPEED SENSOR CONNECTORS

FRONT

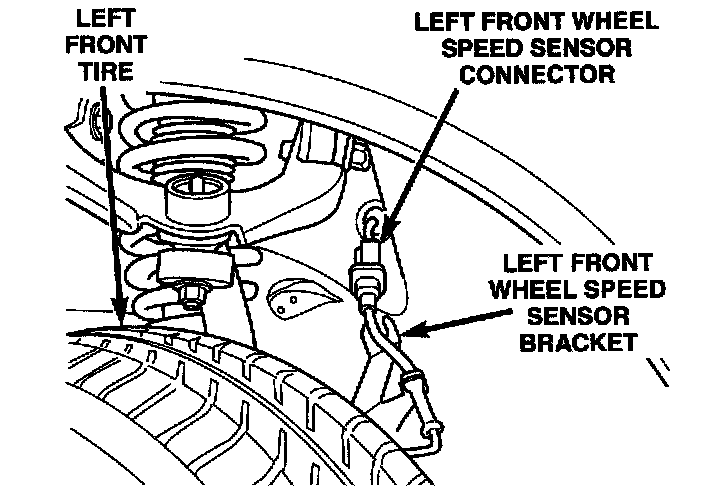

Left Front:

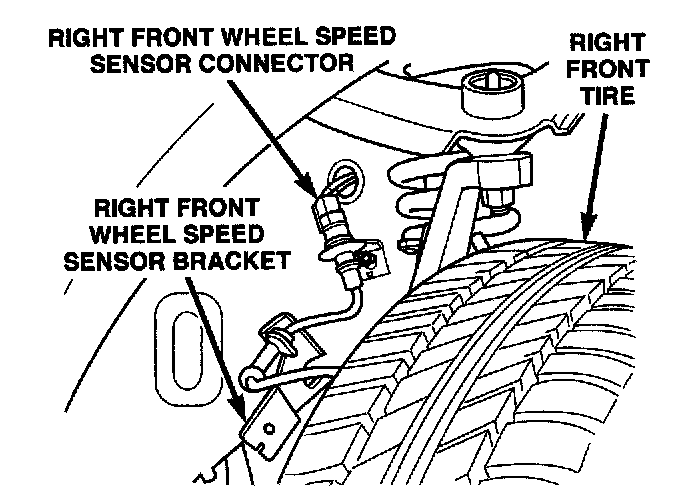

Right Rear:






REAR

Left Front:

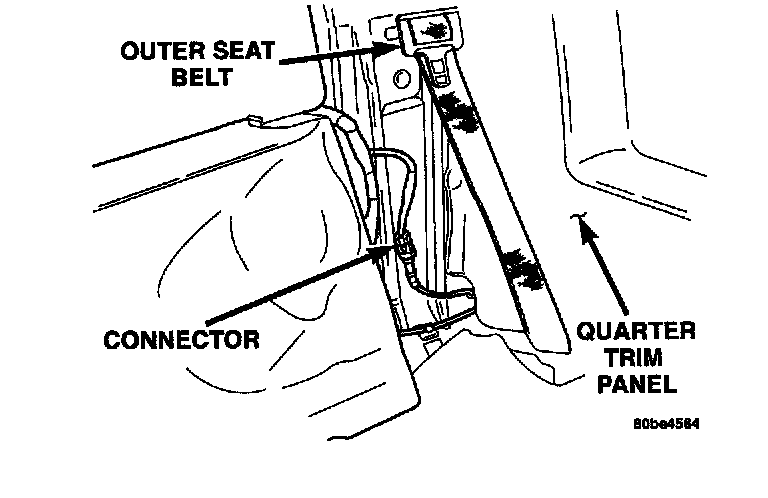

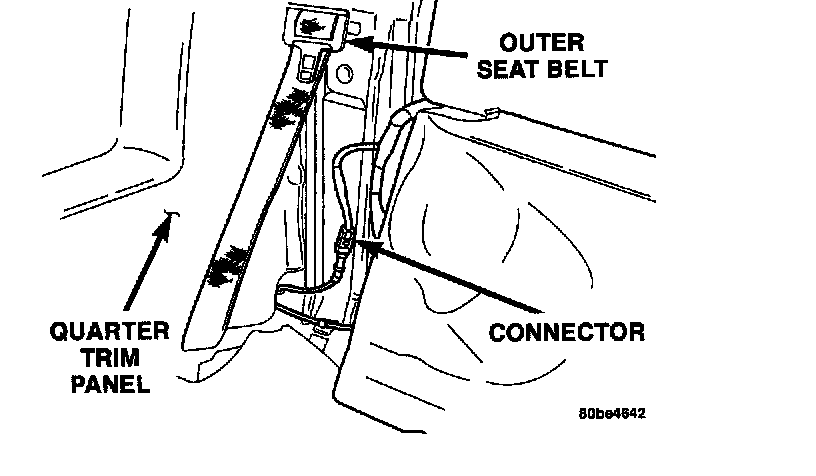

Right Rear:
