Transmission Temperature Sensor

TRANSMISSION TEMPERATURE SENSOR

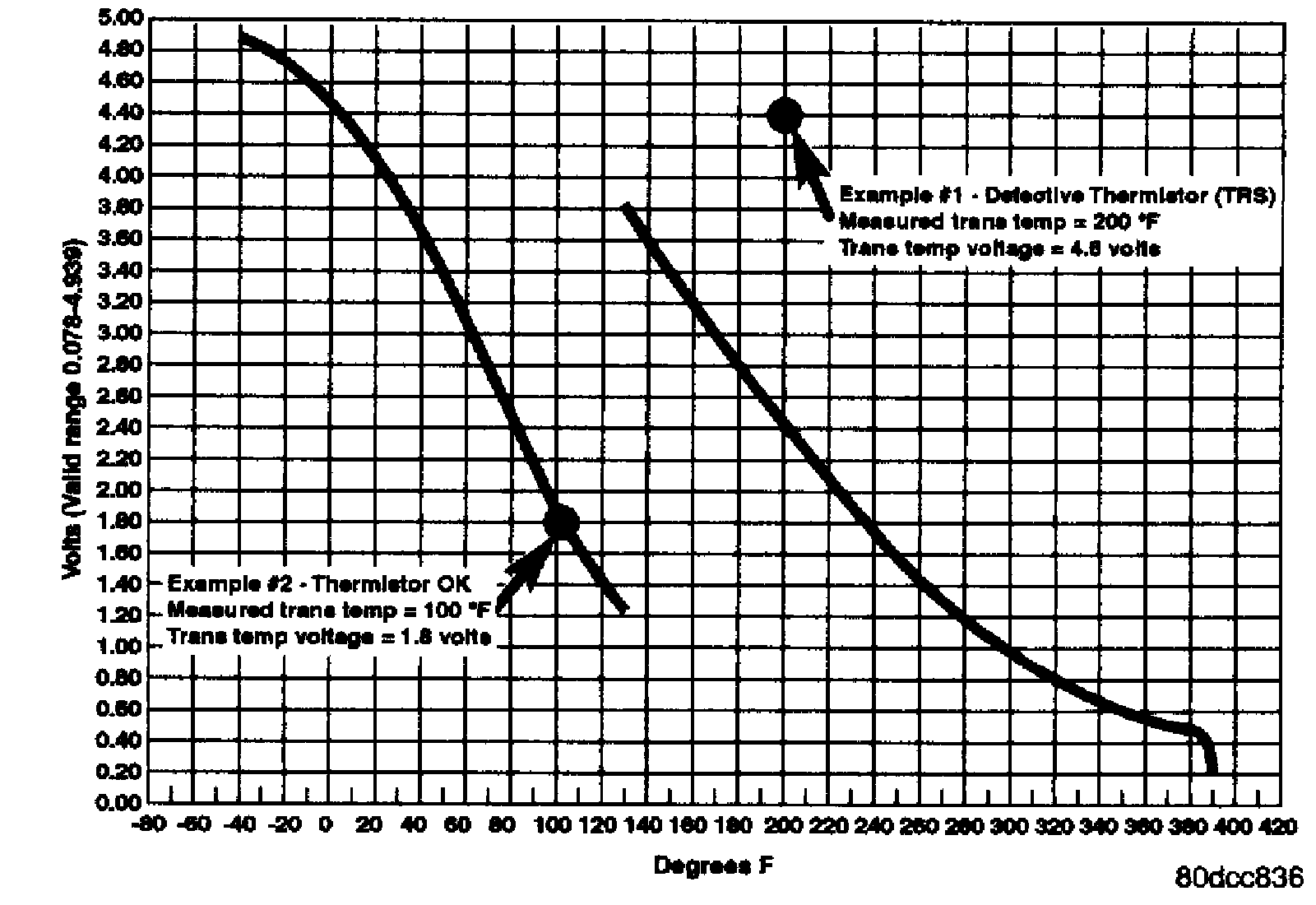

TRANSMISSION TEMPERATURE SENSOR (DUAL RANGE) START ENGINE. WITH DRB, MONITOR AND RECORD TRANSMISSION TEMPERATURE VOLTAGE. COMPARE THE MEASURED TEMPERATURE AND VOLTAGE WITH THE GRAPH SHOWN BELOW. THE MEASURED VALUE SHOULD FALL ON ONE OF THE LINES ON THE GRAPH.
