No Response From PCM (PCI Bus)

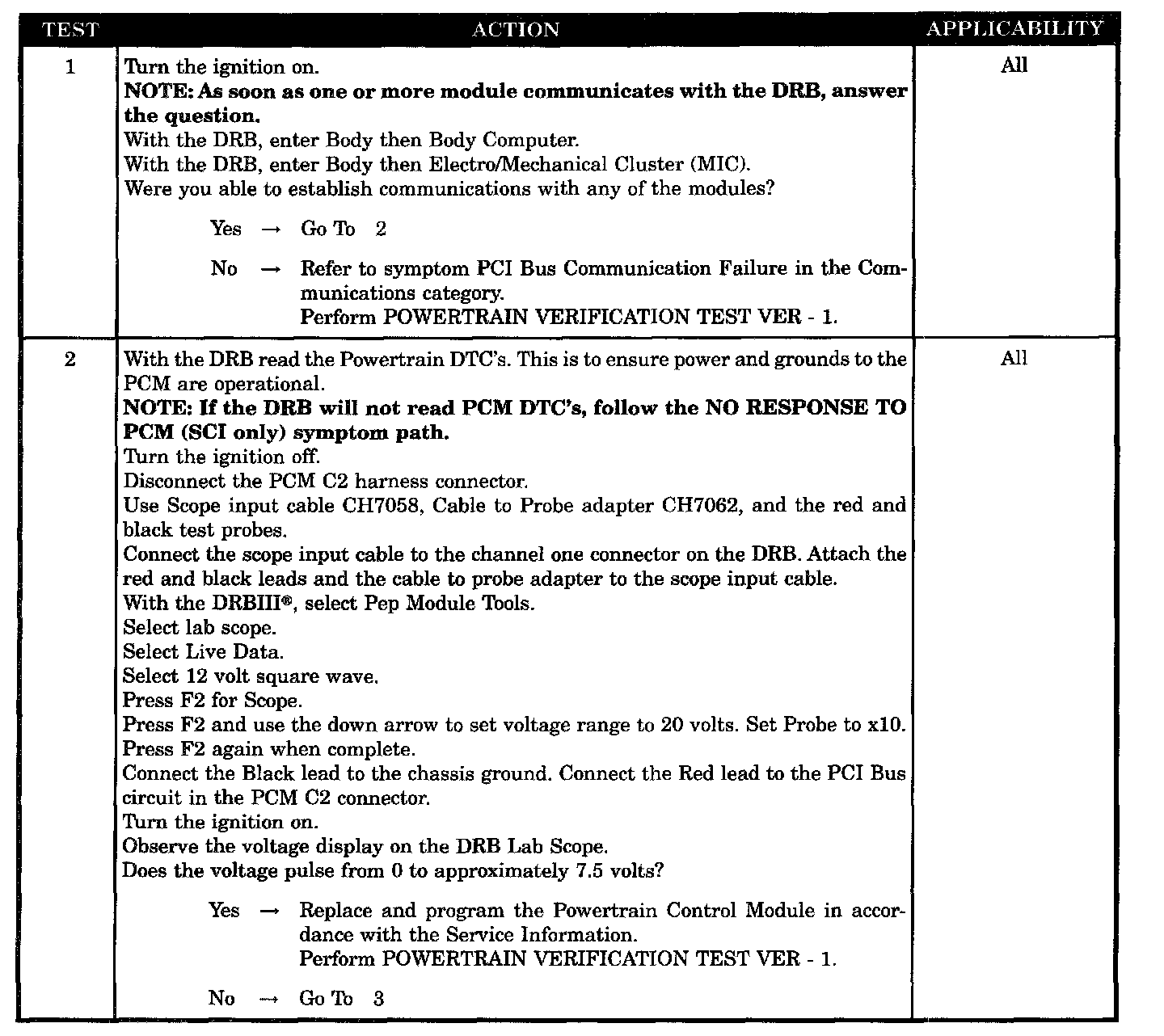

Test 1 - 2:

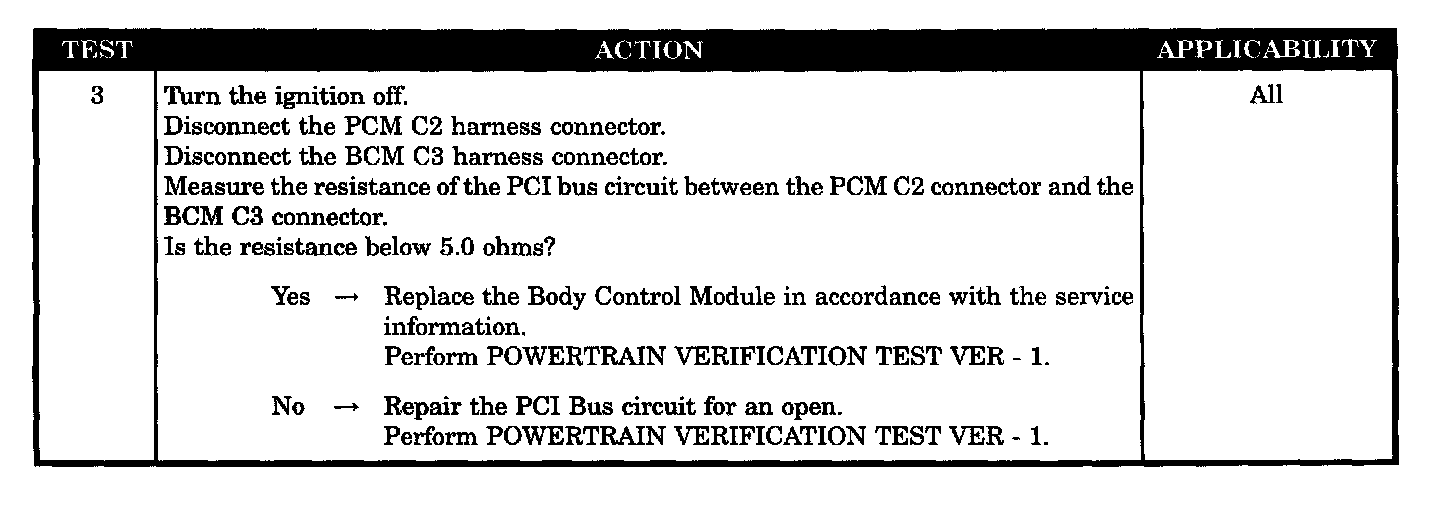

Test 3:

SYMPTOM
NO RESPONSE FROM PCM (PCI BUS) - SBEC

POSSIBLE CAUSES
- PCM PCI No Response
- Powertrain Control Module
- PCI Bus Circuit Open
- Body Control Module
