Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL - 2.7L
1. Disconnect the negative battery cable.

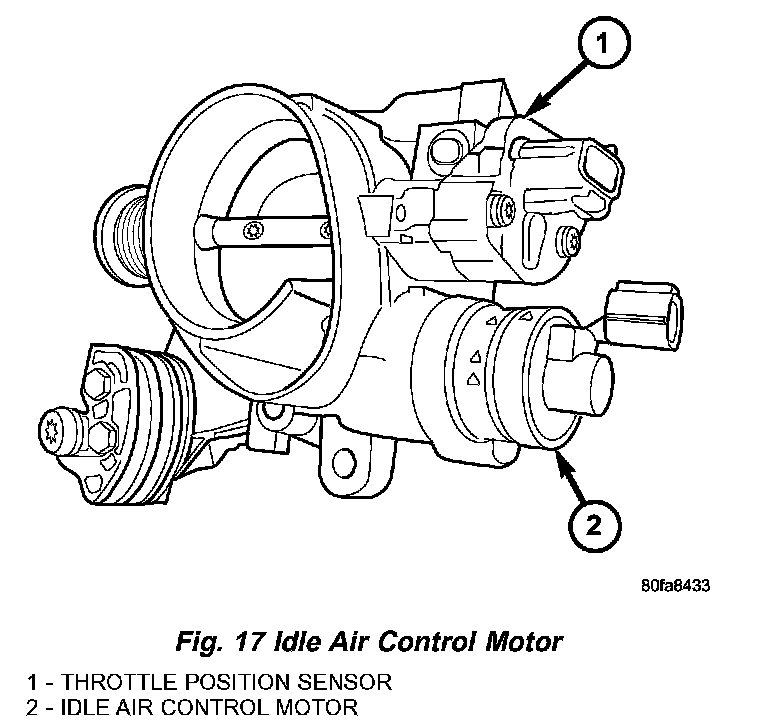

Fig.17 Idle Air Control Motor:

2. Disconnect the IAC electrical connector.
3. Remove the IAC mounting screw.
4. Remove the IAC .

INSTALLATION - 2.7L
1. Install the IAC to the throttle body.
2. Tighten mounting screws to 5.1 Nm (45 in. lbs) torque.
3. Attach electrical connector to the IAC.
4. Connect the negative battery cable.
