Headlamp: Adjustments

HEADLAMP ADJUSTMENT

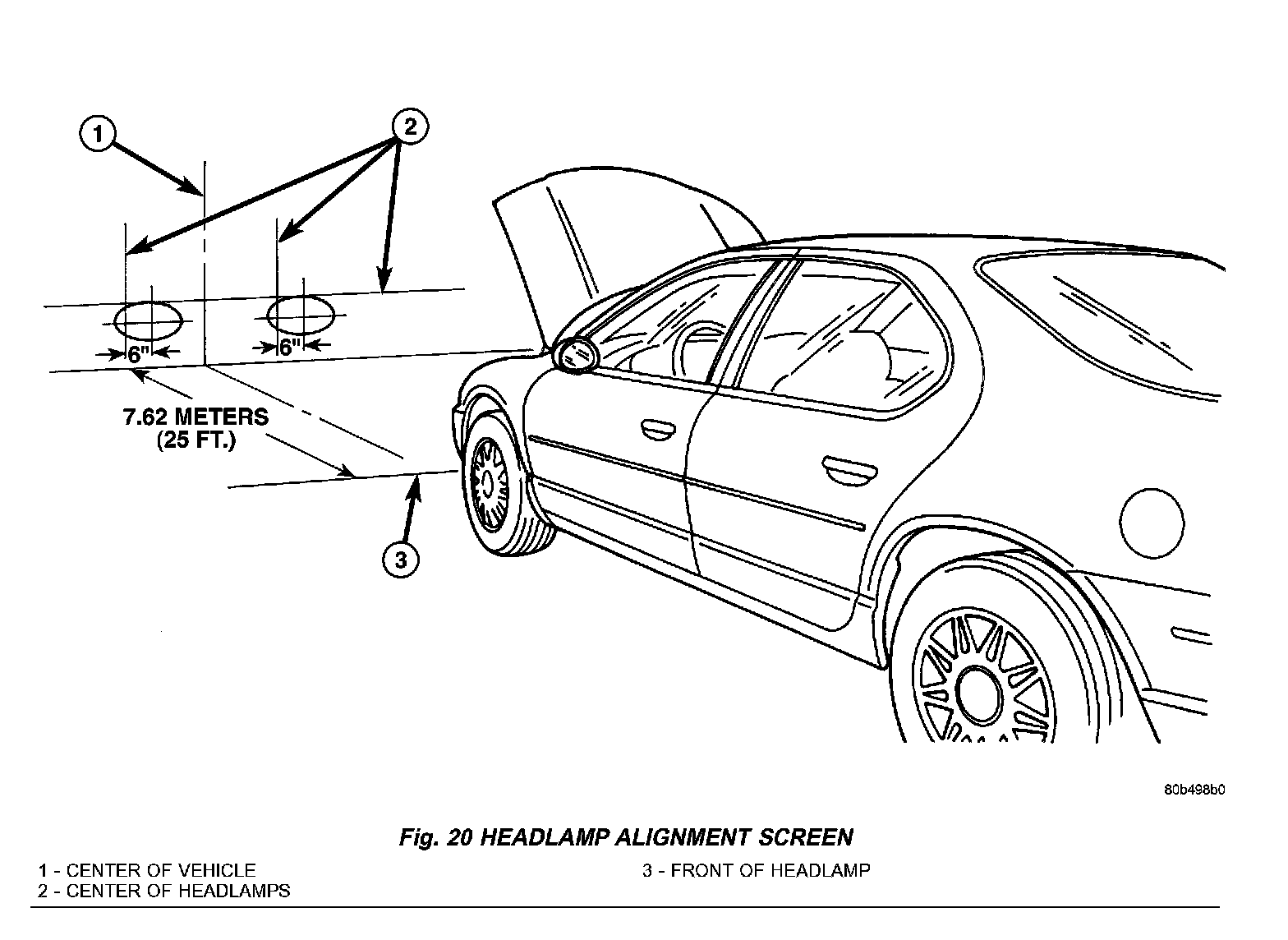

Headlamp Alignment Screen:

A properly aimed left and right low beam headlamp will project the center of the low beam hot spot on the alignment screen below the horizontal center line and 6 in. (152 mm) right of headlamp center line. The high beam headlamps cannot be aligned. The high beam pattern should be correct when the low beams are aligned properly.

To adjust headlamp alignment, rotate alignment screw to achieve the specified low beam hot spot pattern.

HEADLAMP ALIGNMENT

Headlamp Alignment Screen - Export:

A properly aimed low beam headlamp will project a high intensity light pattern on the screen with the horizontal cut-off line aligned with the tape line 130 mm (5.12 in.) below the headlamp centerline. The intersection of the horizontal and 15 degree cut-off lines in the projected pattern should align to the intersection of the headlamp centerline vertical tape line and the tape line 130 mm (5.12 in.) below the headlamp horizontal centerline. The high beam pattern should be correct when the low beams are aligned properly.

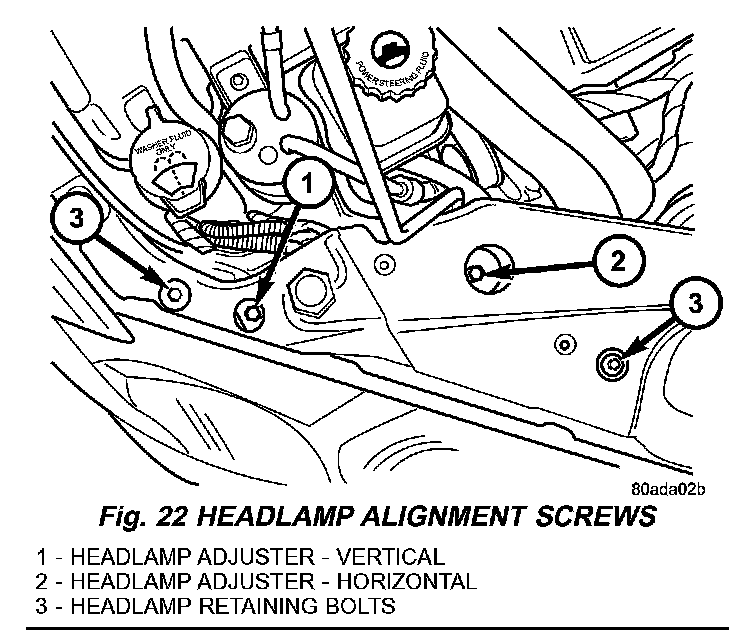

Headlight Alignment Screws:

To adjust headlamp alignment, rotate alignment screws to achieve the specified low beam hot spot pattern.
